JOHNSON CONTROLS
186
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA

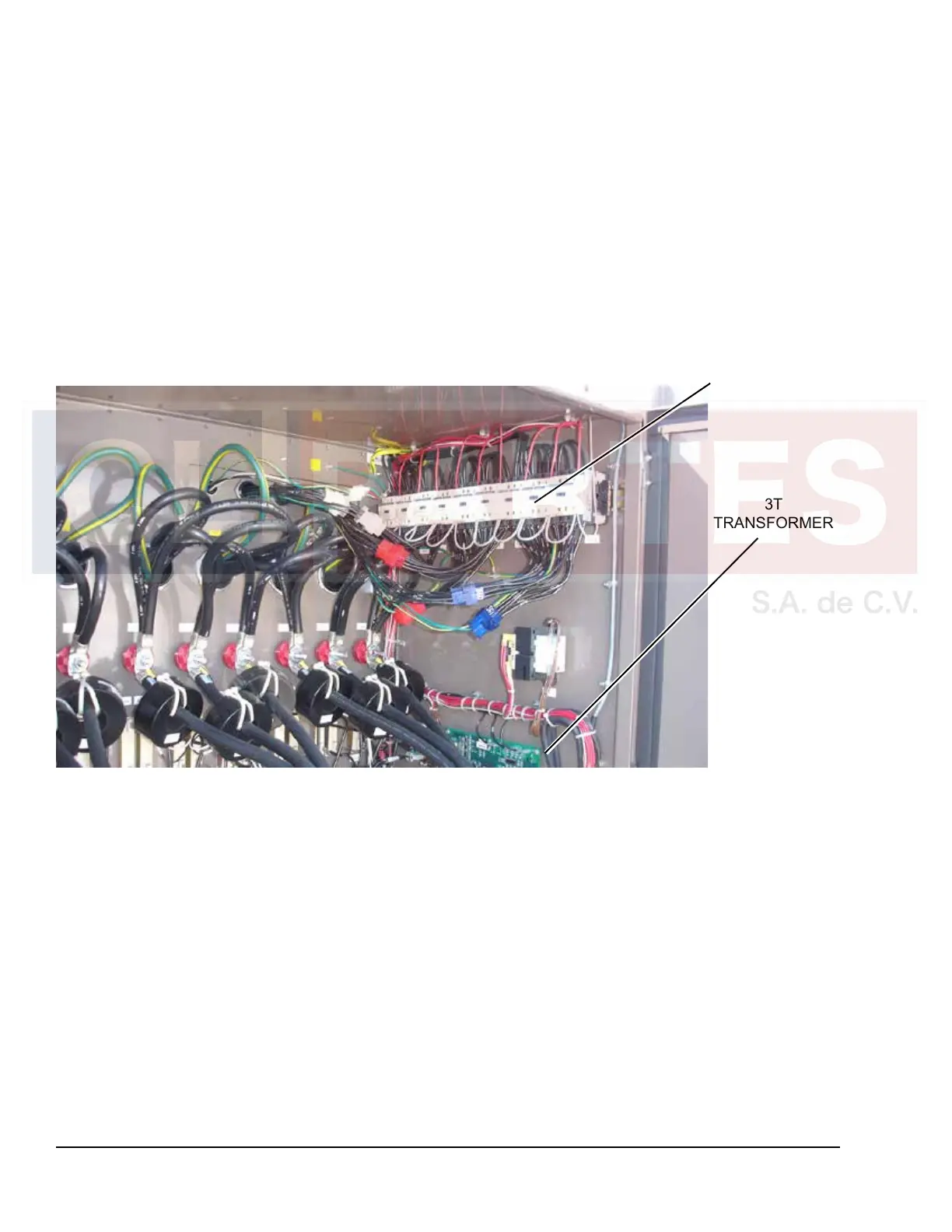

FIGURE 35 - FAN CONTACTORS, 3 COMPRESSOR
COMPONENT LOCATIONS (CONT'D)
50072
FAN
CONTACTORS
(4, 5, 6, 7, 8, 9
11, 12, 13CR)
3T
TRANSFORMER
