JOHNSON CONTROLS
190
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA

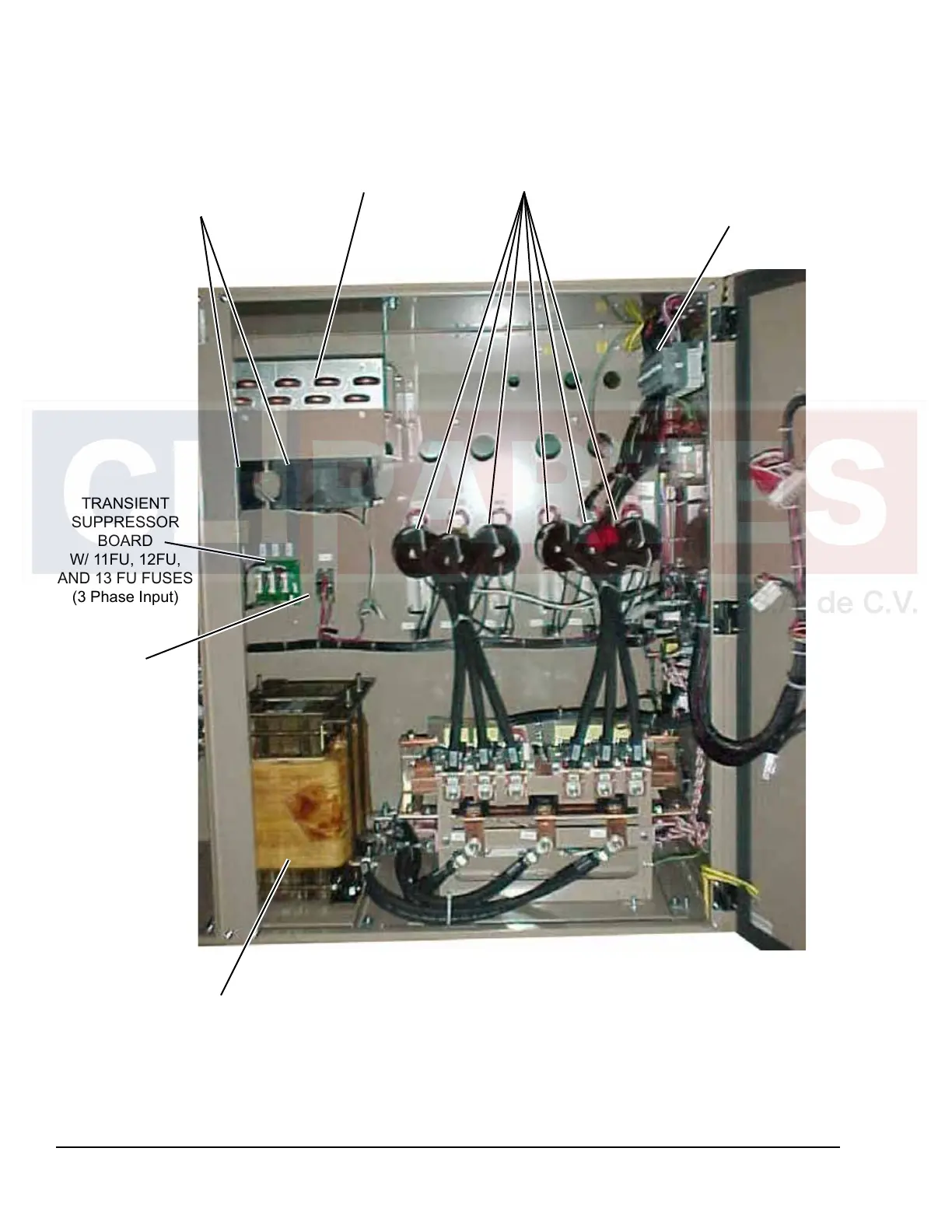

FIGURE 39 - VSD COMPONENTS, 2 COMPRESSOR
LD10587
FAN
RELAYS
CURRENT
TRANSFORMERS
C13-C17
COOLING
FANS
1L LINE
INDUCTOR
CABINET
COOLING
COIL
TRANSIENT
SUPPRESSOR
BOARD
W/ 11FU, 12FU,
AND 13 FU FUSES
(3 Phase Input)
10CR FAN
PUMP
CONTROL
RELAY
COMPONENT LOCATIONS (CONT'D)
