JOHNSON CONTROLS
181
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6

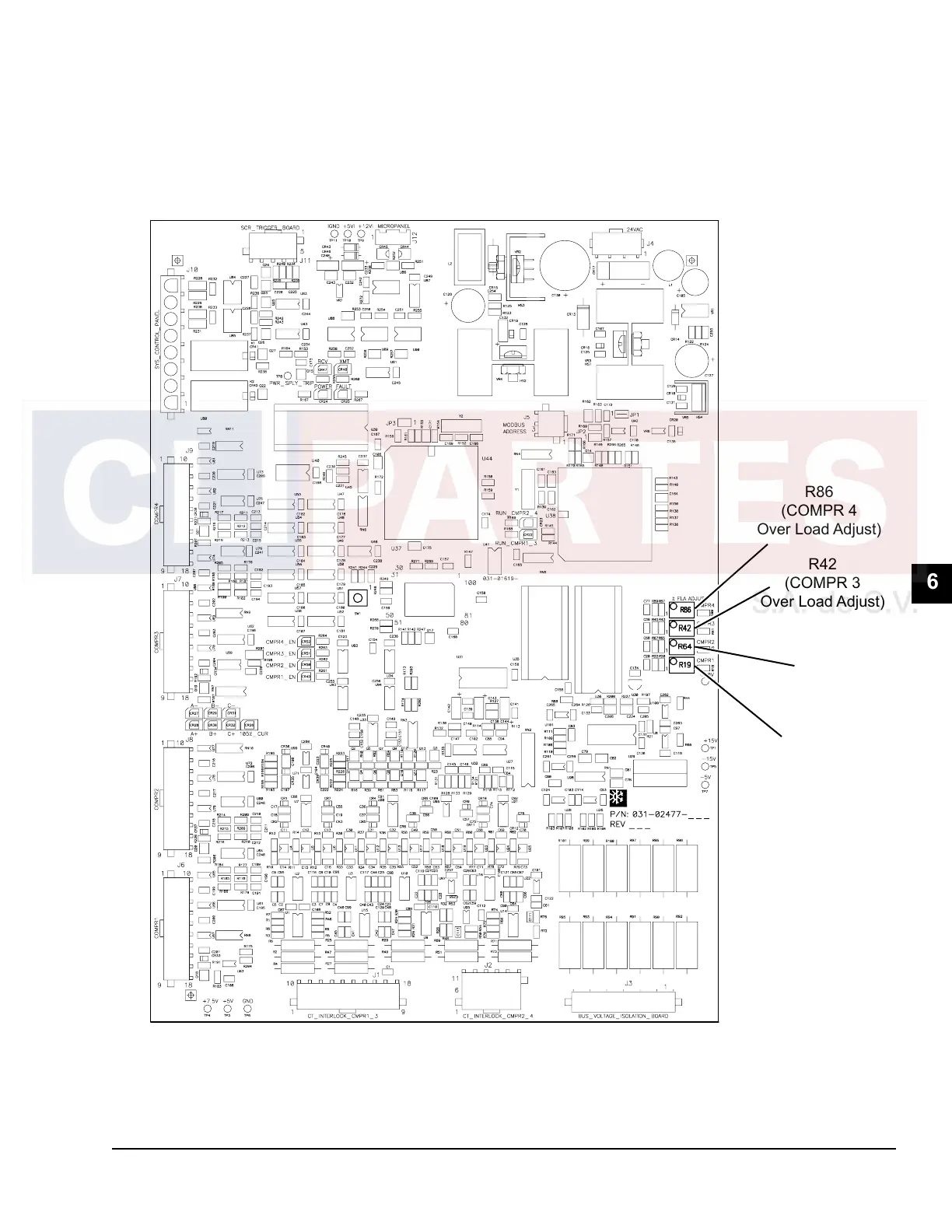

FIGURE 30 - VSD LOGIC BOARD (ORIGINAL - OBSOLETE), P/N 031-02477-000
LD10590
COMPONENT LOCATIONS (CONT'D)
MADE IN THE USA
YORK
R86
(COMPR 4
Over Load Adjust)
R42
(COMPR 3
Over Load Adjust)
R64
(COMPR 2
Over Load Adjust)
R19
(COMPR 1
Over Load Adjust)
