SECTION 8 - MICROPANEL
The values displayed under each of the key presses
may be changed by keying in new values and pressing
the (ENTER) key to store the new value into mem-
ory. Where more than one value may be keyed in on a
display, a portion of the data that does not need updat-
ing may be skipped by pressing the (ENTER) key.
The (ENTER) key must also be pressed after the
last value in the display to store the data into memory.

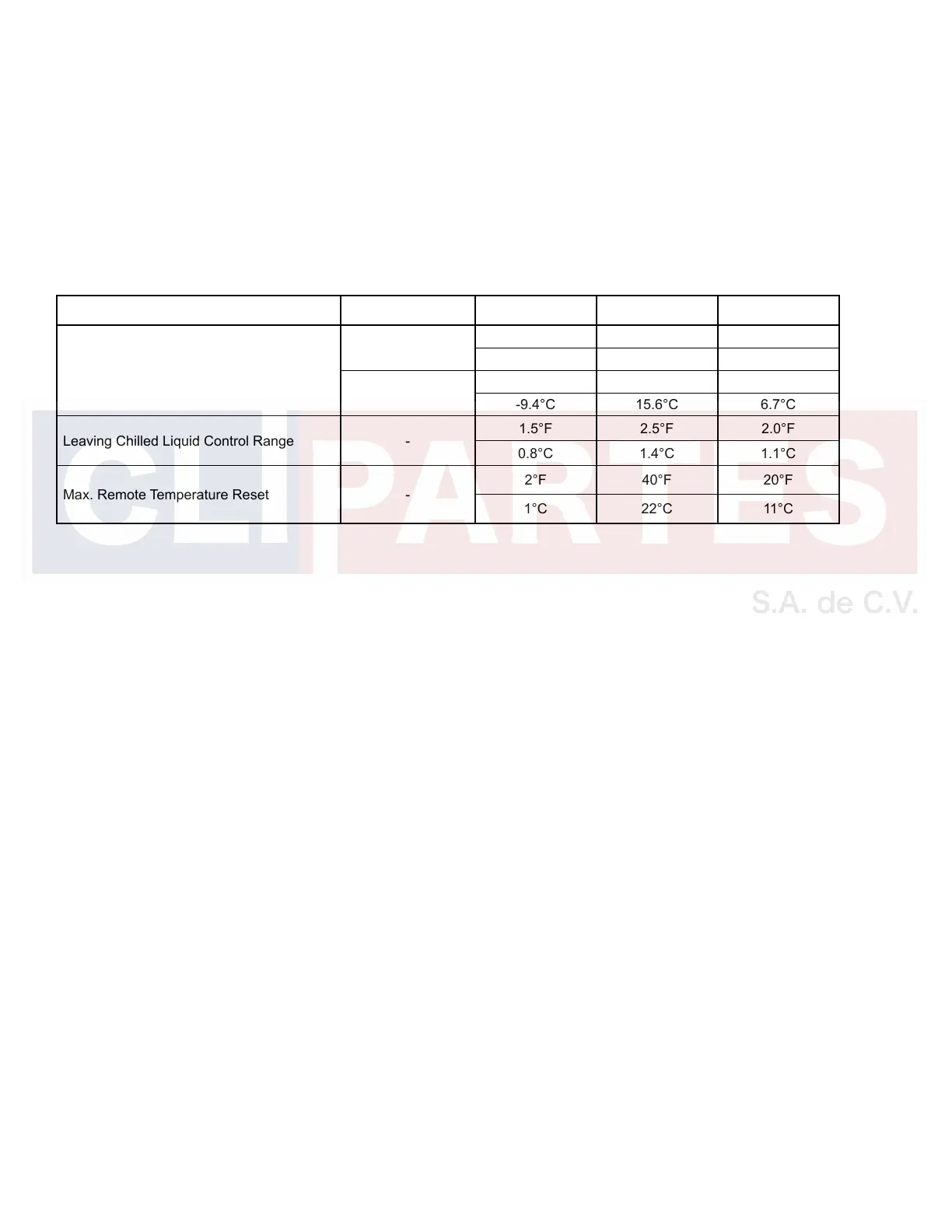

TABLE 16 - SETPOINT LIMITS
PROGRAM VALUE MODE LOW LIMIT HIGH LIMIT DEFAULT
Leaving Chilled Liquid Setpoint
Water Cooling
40.0°F 60.0°F 44.0°F
4.4°C 15.6°C 6.7°C
Glycol Cooling
15.0°F 70.0°F 44.0°F
-9.4°C 15.6°C 6.7°C
Leaving Chilled Liquid Control Range -
1.5°F 2.5°F 2.0°F
0.8°C 1.4°C 1.1°C
Max. Remote Temperature Reset -
2°F 40°F 20°F
1°C 22°C 11°C
The▲(ARROW)keyallowsscrollingbackthrough
the setpoints displays.
The minimum, maximum, and default values allowed
under the SETPOINTS key are provided in Table 16
on page 268.
