SECTION 8 - MICROPANEL

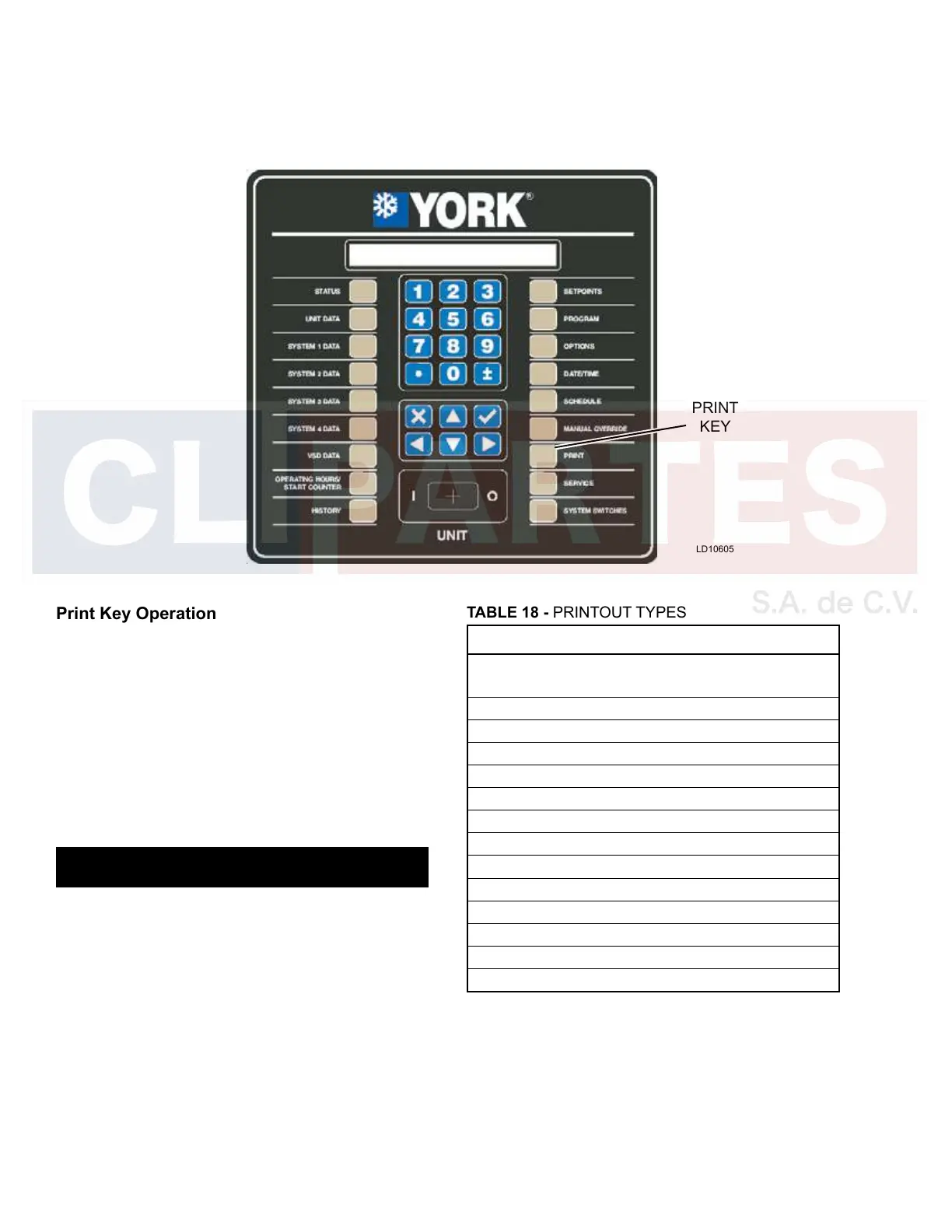

LD10605
PRINT
KEY
PRINT KEY
Print Key Operation
The PRINT key is used to initiate a printout of cur-
rent operating data (real time data), a complete history
printout of all history (fault) buffers, a printout of all
normal shutdowns (compressor cycling, chiller shut-
down, etc.) or history (fault) data printout of a specific
fault. History Buffer 1 will always be the most recent
fault history printout. Printing may also be canceled
by selecting the CANCEL PRINTING option. The fol-
lowing message is displayed when the PRINT key is
pressed.
PRINT CHOOSE PRINT REPORT
◄ ► XXXXXXXXXXXXXXXXXXXXX
After pressing the PRINT key, the printout type is
selected by pressing the ◄ (LEFT ARROW) or ►
(RIGHT ARROW) keys until the desired printout is
displayed.
Table 18 on page 280 shows the available printout
types.
TABLE 18 - PRINTOUT TYPES
PRINTOUT TYPES
Operating Data
(Default Selection)
All History Buffers
Normal Shutdowns
History Buffer 1
History Buffer 2
History Buffer 3
History Buffer 4
History Buffer 5
History Buffer 6
History Buffer 7
History Buffer 8
History Buffer 9
History Buffer 10
Cancel Printing
The specific printout is initiated by pressing the
(ENTER) key.
