JOHNSON CONTROLS
322
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 9 - MAINTENANCE

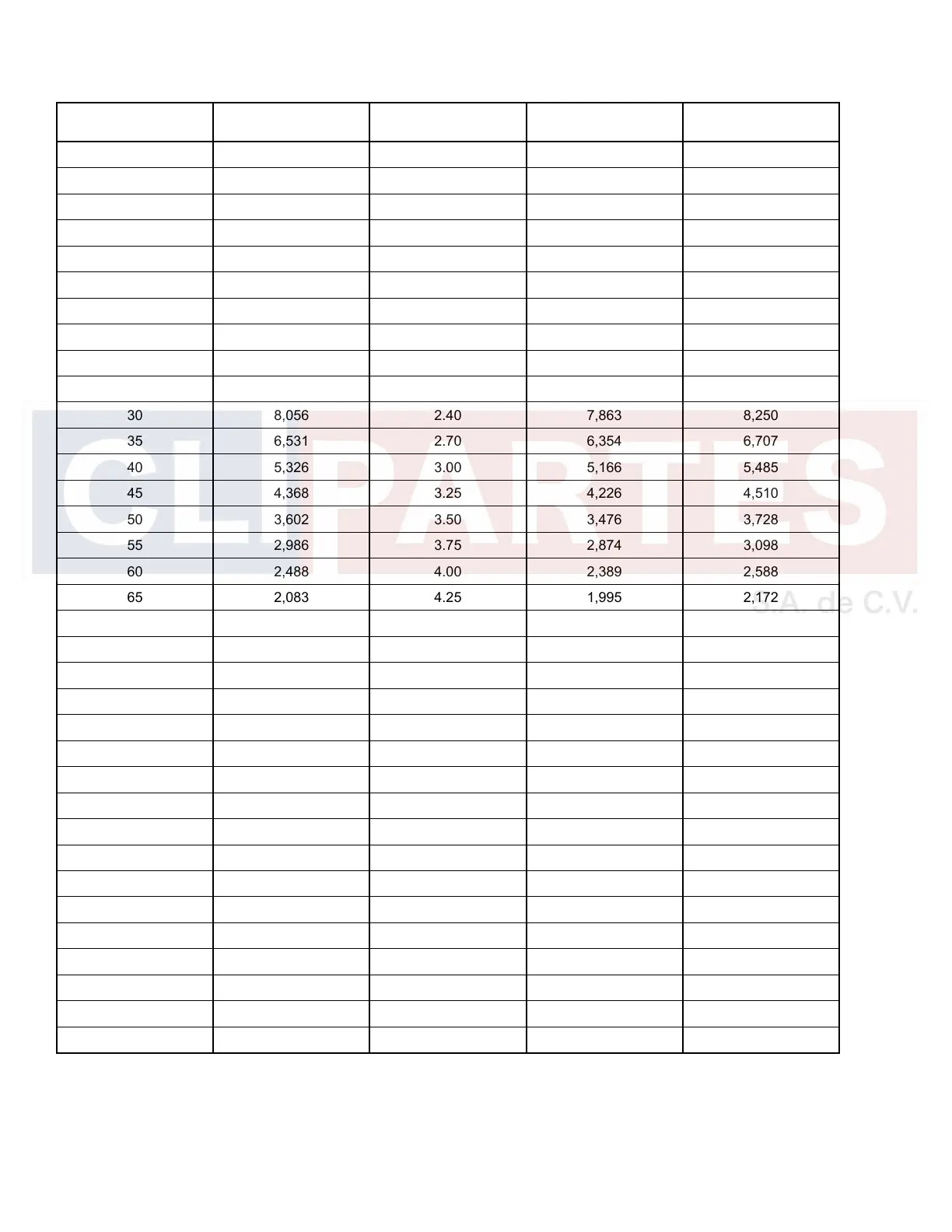

TABLE 34 - MOTOR TEMPERATURE SENSOR RESISTANCE (CHECK AT THE MOTOR)
TEMP.
(ºC)
RNOMINAL
(OHMS)
RTOL
(± %)
RMIN
(OHMS)
RMAX
(OHMS)
-20 97,062 5.00 92,209 101,915
-15 77,941 4.60 69,586 76,296
-10 55,391 4.20 52,996 57,643
-5 42,324 3.85 40,695 43,954
0 32,654 3.50 31,511 33,797
5 25,396 3.15 24,596 26,196
10 19,903 2.80 19,346 20,461
15 15,713 2.50 15,321 16,106
20 12,493 2.20 12,218 12,768
25 10,000 2.00 9,800 10,200
30 8,056 2.40 7,863 8,250
35 6,531 2.70 6,354 6,707
40 5,326 3.00 5,166 5,485
45 4,368 3.25 4,226 4,510
50 3,602 3.50 3,476 3,728
55 2,986 3.75 2,874 3,098
60 2,488 4.00 2,389 2,588
65 2,083 4.25 1,995 2,172
70 1,753 4.50 1,674 1,832
75 1,481 4.75 1,411 1,551
80 1,257 5.00 1,194 1,321
85 1,071 5.20 1,016 1,127
90 916.9 5.40 867.4 966.4
95 787.7 5.60 743.6 831.9
100 679.3 5.80 639.9 718.7
105 587.9 6.00 552.6 623.2
110 510.6 6.20 479.9 542.3
115 445.0 6.40 416.5 473.5
120 389.0 6.60 363.4 414.7
125 341.2 6.70 318.4 364.1
130 300.2 6.90 279.5 320.9
135 264.9 7.10 246.1 283.7
140 234.4 7.30 217.3 251.5
145 208.0 7.40 192.6 223.3
150 185.0 7.50 171.1 198.9
