Johnson Controls York YCIV A Series - Electrical Data; Compressor Power Wiring Connections; FIGURE 8 - Two Compressor Wiring Diagram with Circuit Breaker; FIGURE 9 - Two Compressor Wiring Diagram with Terminal Block

JOHNSON CONTROLS
76
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA

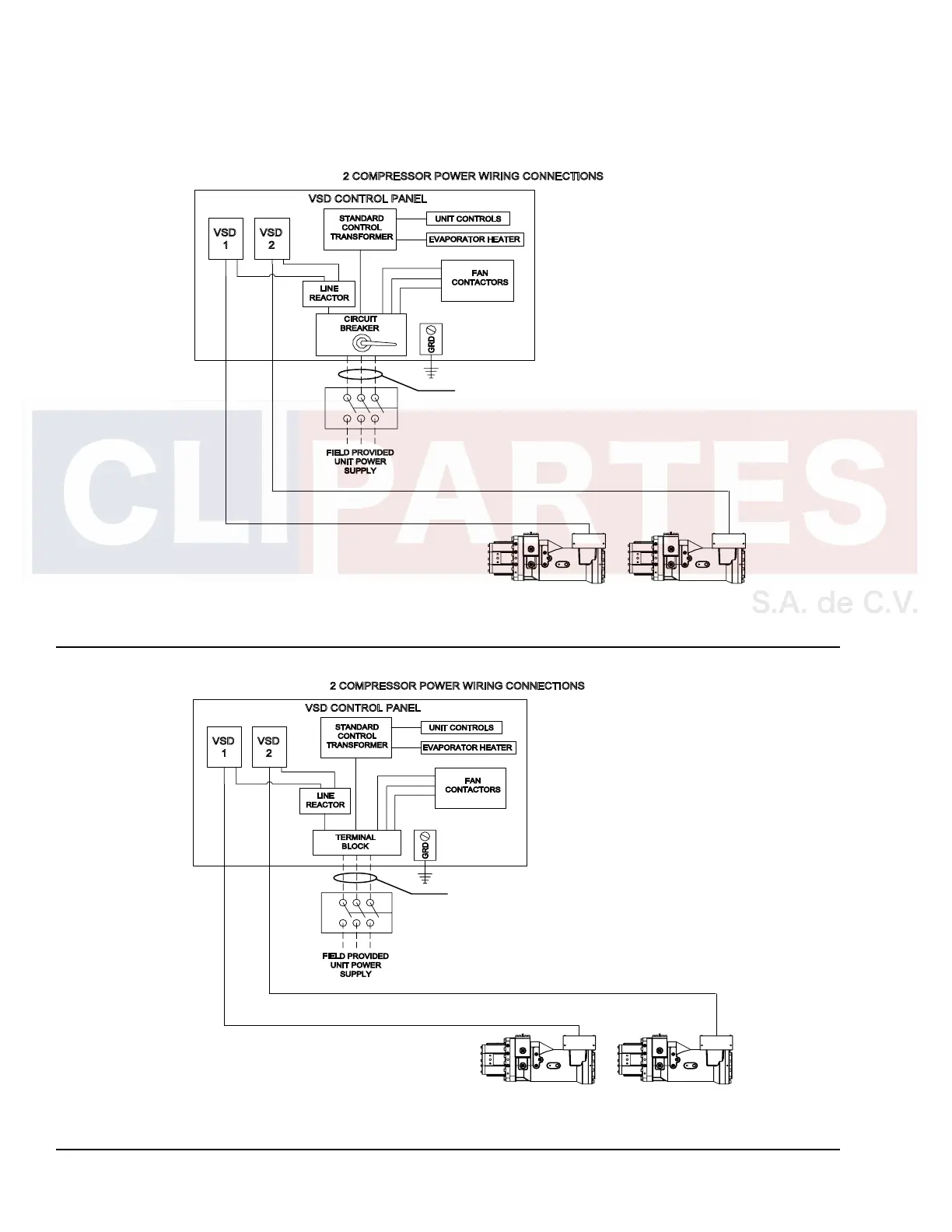

FIGURE 8 - TWO COMPRESSOR WIRING DIAGRAM WITH CIRCUIT BREAKER
FIGURE 9 - TWO COMPRESSOR WIRING DIAGRAM WITH TERMINAL BLOCK
ELECTRICAL DATA
2 Compressor Power Wiring Connections
VSD CONTROL PANEL
VSD
1
VSD
2
STANDARD
CONTROL
TRANSFORMER
UNIT CONTROLS
EVAPORATOR HEATER
FAN
CONTACTORS
CIRCUIT
BREAKER
GRD
FIELD PROVIDED
UNIT POWER
SUPPLY
LINE
REACTOR
2 COMPRESSOR POWER WIRING CONNECTIONS
See Note 3
VSD CONTROL PANEL
VSD
1
VSD
2
STANDARD
CONTROL
TRANSFORMER
UNIT CONTROLS
EVAPORATOR HEATER
FAN
CONTACTORS
TERMINAL
BLOCK
GRD
FIELD PROVIDED
UNIT POWER
SUPPLY
LINE
REACTOR
2 COMPRESSOR POWER WIRING CONNECTIONS
See Note 3
