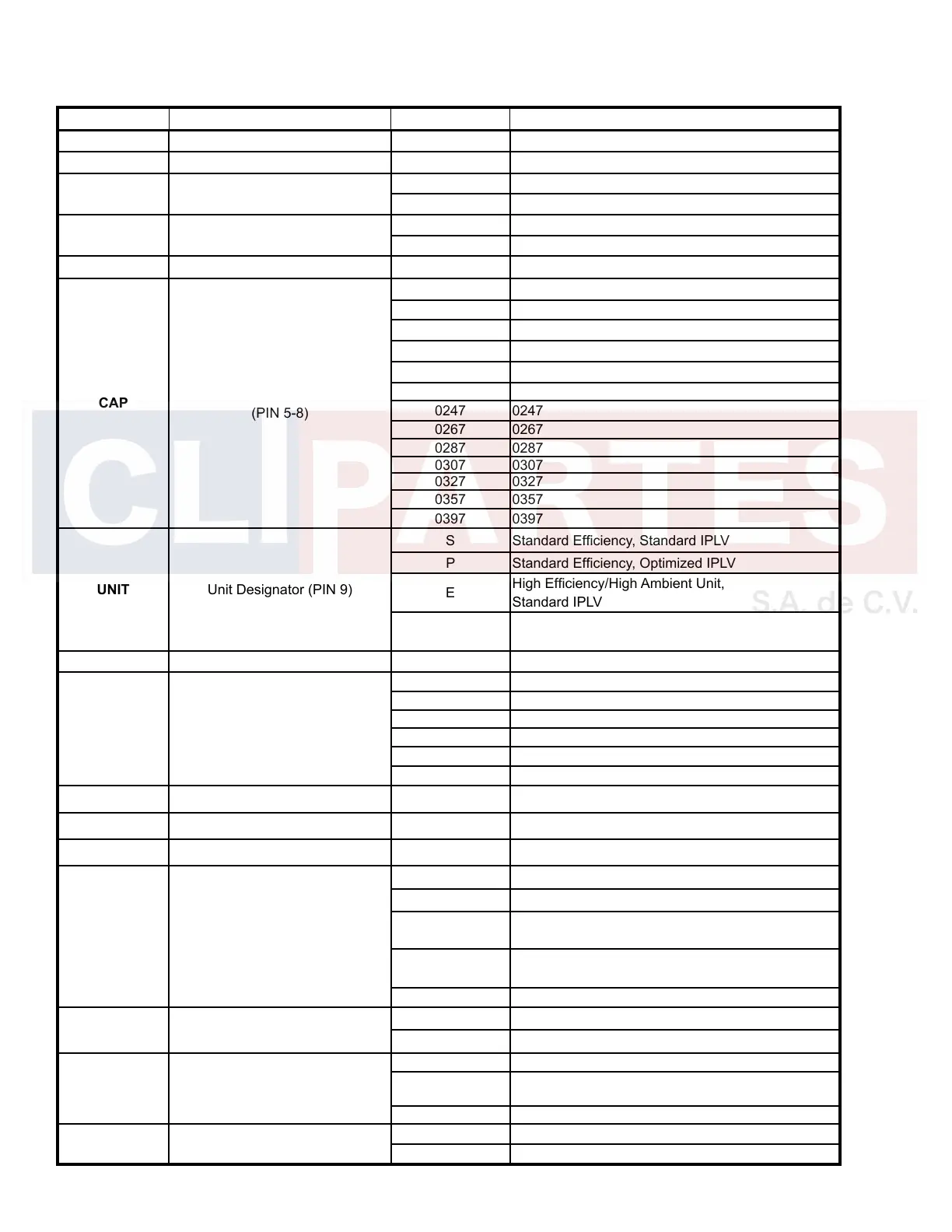

SECTION 2 - PRODUCT DESCRIPTION
COMPLETE PIN NUMBER DESCRIPTION
FEATURE DESCRIPTION OPTION DESCRIPTION
CONTRACT Contract Number NUM Contract Number = {num}
ORDER Order Quantity QTY Order quantity = {ord_qty}
USA USA Origin
N USA origin not required
Y USA origin required
SHIP WT Shipping Weight
LBS Crane/Rigging Shipping Weight = {lbs}
KG Crane/Rigging Shipping Weight = {kg}
MODEL Model (PIN 1-4) YCIV YCIV
CAP
Nominal Capacity
(PIN 5-8)
0157 0157
0177 0177
0187 0187
0197 0197
0207 0207
0227 0227
0247 0247
0267 0267
0287 0287
0307 0307
0327 0327
0357 0357
0397 0397
UNIT Unit Designator (PIN 9)
S Standard Efciency, Standard IPLV
P Standard Efciency, Optimized IPLV
E
High Efciency/High Ambient Unit,
Standard IPLV
V
High Efciency/High Ambient Unit,
Optimized IPLV
REF. Refrigerant (PIN 10) A R-134a
VOLTS Voltage (PIN 11, 12)
17 200/3/60
28 230/3/60
40 380/3/60
46 460/3/60
50 380-415/3/50
58 575/3/60
STARTER Starter (PIN 13) V Variable Speed Drive
DESIGN Design Series (PIN 14) A Design Series A
DEV Modication Level (PIN 15) A Mod Level B
POWER Power Fld (PIN 16, 17)
SX SP Supply TB
BX SP Circuit Breaker w/Lockable Handle
SS SP Supply TB w/Ind. Sys. Disconnect Switches
CS
SP Circuit Breaker w/Ind. Sys.
Disconnect Switches
QQ Special Power Option
TRANS
Control Transformer
(PIN 18)
T Control Transformer required
Q Special Transformer or Power Strip required
PFC
Convenience Outlet
(PIN 19)
X No Option Required
O
Convenience Outlet, 115V GFI
(Customer Powered)
Q Special quote
AMB PIN 20
X No option required
Q Special quote
