Johnson Controls York YCIV A Series - TABLE 32 - Outside Air Temperature Sensor Input Voltage (Measured Signal to Shield at the Sensor)

JOHNSON CONTROLS
320
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 9 - MAINTENANCE

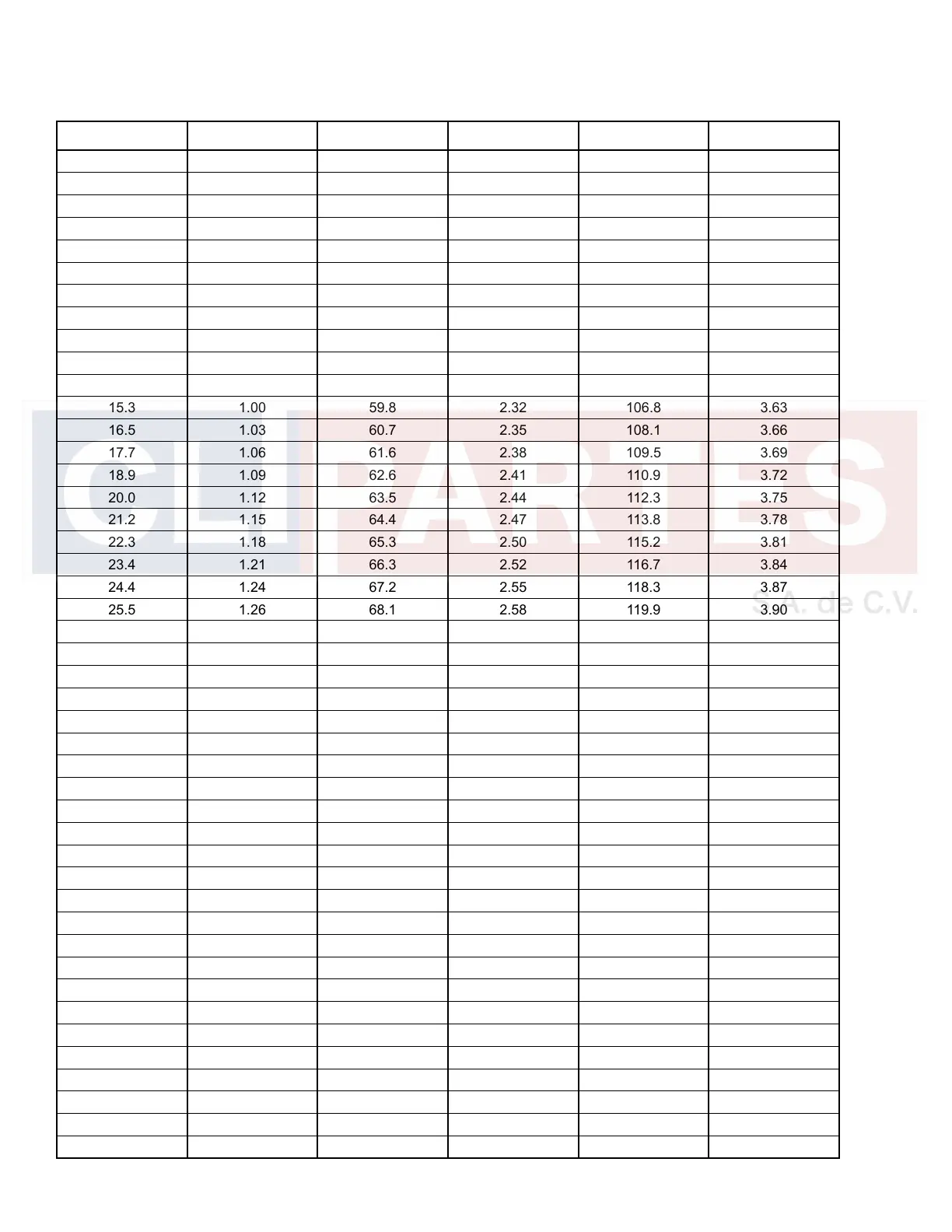

TABLE 32 - OUTSIDE AIR TEMPERATURE SENSOR INPUT VOLTAGE (MEASURED SIGNAL TO SHIELD AT
THE SENSOR)
TEMP. (ºF) VOLTAGE TEMP. (ºF) VOLTAGE TEMP. (ºF) VOLTAGE
0.24 0.68 49.8 2.00 93.3 3.31
1.79 0.71 50.7 2.03 94.4 3.34
3.30 0.74 51.6 2.06 65.6 3.37
4.76 0.77 52.5 2.09 96.8 3.40
6.19 0.80 53.4 2.11 98.0 3.43
7.58 0.83 54.3 2.14 99.2 3.46
8.94 0.85 55.3 2.17 100.4 3.49
10.3 0.88 56.2 2.20 101.6 3.52
11.6 0.91 57.1 2.23 102.9 3.55
12.8 0.94 58.0 2.26 104.2 3.57
14.1 0.97 58.9 2.29 105.5 3.60
15.3 1.00 59.8 2.32 106.8 3.63
16.5 1.03 60.7 2.35 108.1 3.66
17.7 1.06 61.6 2.38 109.5 3.69
18.9 1.09 62.6 2.41 110.9 3.72
20.0 1.12 63.5 2.44 112.3 3.75
21.2 1.15 64.4 2.47 113.8 3.78
22.3 1.18 65.3 2.50 115.2 3.81
23.4 1.21 66.3 2.52 116.7 3.84
24.4 1.24 67.2 2.55 118.3 3.87
25.5 1.26 68.1 2.58 119.9 3.90
26.6 1.26 69.1 2.61 121.5 3.93
27.6 1.32 70.0 2.64 123.2 3.96
28.7 1.35 70.9 2.67 124.9 3.98
29.7 1.38 71.9 2.70 126.6 4.01
30.7 1.41 72.8 2.73 128.4 4.04
31.7 1.44 73.8 2.76 130.3 4.07
32.7 1.47 74.8 2.76
33.7 1.50 75.8 2.82
34.7 1.53 76.7 2.85
35.7 1.56 77.7 2.88
36.7 1.59 78.7 2.91
37.6 1.62 79.7 2.93
38.6 1.65 80.7 2.96
39.6 1.67 81.7 2.99
40.5 1.70 82.7 3.02
41.4 1.73 83.6 3.05
42.4 1.76 84.6 3.08
43.3 1.79 85.7 3.11
44.3 1.82 86.7 3.13
45.2 1.85 87.8 3.16
46.1 1.88 88.9 3.19
47.0 1.91 90.1 3.22
48.0 1.94 91.1 3.25
48.9 1.97 92.2 3.28
