JOHNSON CONTROLS

297

SECTION 8 - MICROPANEL

FORM 201.23-NM2

ISSUE DATE: 3/9/2015

ANALOG OUTPUT CONNECTIONS

Table 23 on page 297 lists the analog outputs and the

circuit board they are located on. The analog output

signals are feed to the associated control device from

the 2 wires in the associated plug.

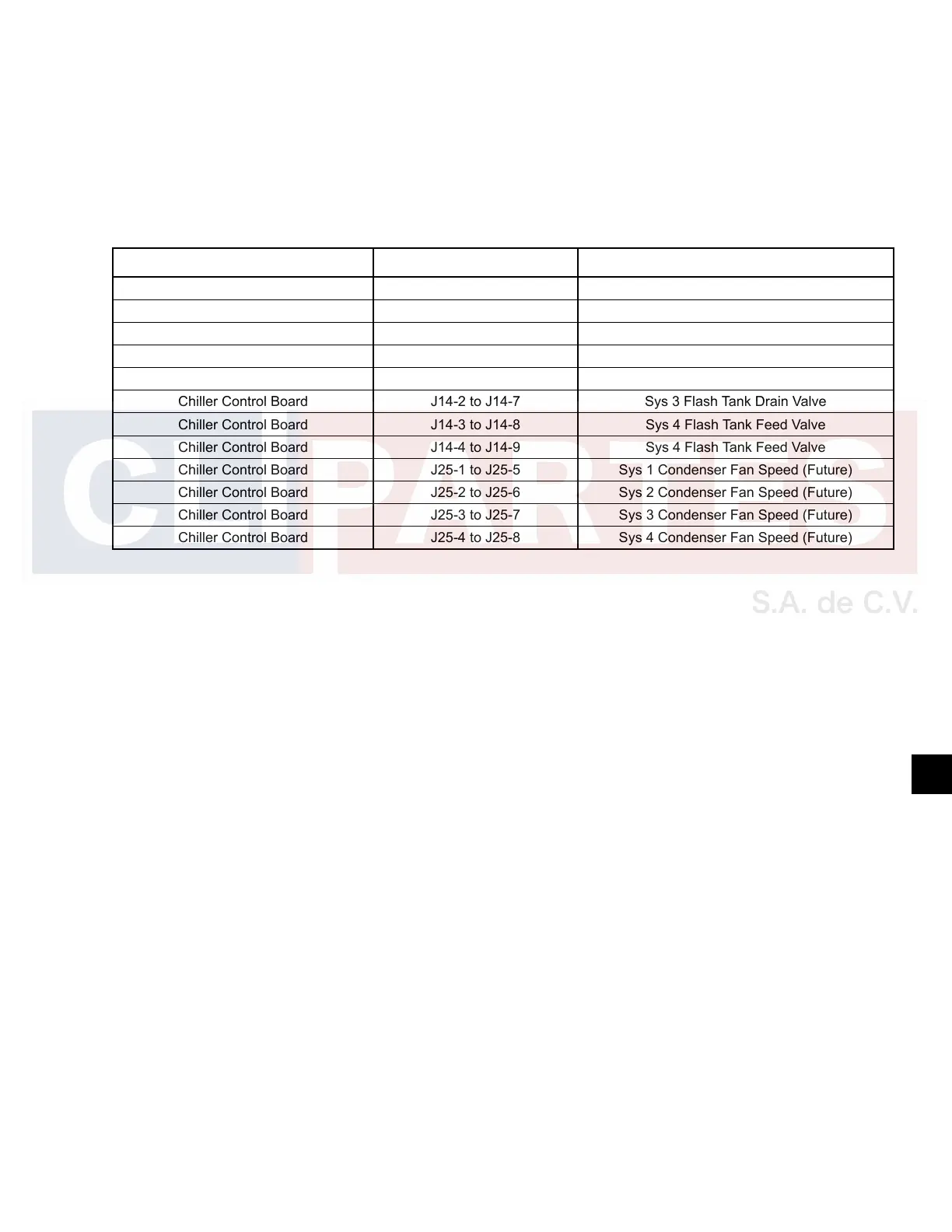

TABLE 23 - ANALOG OUTPUT CONNECTIONS

BOARD HEADER ANALOG OUTPUT

Chiller Control Board J15-1 to J15-2 Sys 1 Flash Tank Feed Valve

Chiller Control Board J15-3 to J15-4 Sys 1 Flash tank Drain Valve

Chiller Control Board J15-5 to J15-6 Sys 2 ash Tank Feed Valve

Chiller Control Board J15-7 to J15-8 Sys 2 Flash Tank Drain Valve

Chiller Control Board J14-1 to J14-6 Sys 3 Flash Tank Feed Valve

Chiller Control Board J14-2 to J14-7 Sys 3 Flash Tank Drain Valve

Chiller Control Board J14-3 to J14-8 Sys 4 Flash Tank Feed Valve

Chiller Control Board J14-4 to J14-9 Sys 4 Flash Tank Feed Valve

Chiller Control Board J25-1 to J25-5 Sys 1 Condenser Fan Speed (Future)

Chiller Control Board J25-2 to J25-6 Sys 2 Condenser Fan Speed (Future)

Chiller Control Board J25-3 to J25-7 Sys 3 Condenser Fan Speed (Future)

Chiller Control Board J25-4 to J25-8 Sys 4 Condenser Fan Speed (Future)
