Johnson Controls York YCIV A Series - Seismic Isolator Cross-Reference

JOHNSON CONTROLS
166
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
SECTION 6 - TECHNICAL DATA
SEISMIC ISOLATOR CROSS-REFERENCE
Units shipped on or after June 15, 2008
* WEIGHT RANGE (LBS) * WEIGHT RANGE (KGS) VENDOR P/N COLOR YORK P/N
Up to 391 Up to 177 Y2RSI-2D-460 GREEN 029-25336-006
392 through 604 178 through 274 Y2RSI-2D-710 DK BROWN 029-25336-008
605 through 740 275 through 336 Y2RSI-2D-870 RED 029-25336-009
741 through 1020 337 through 463 Y2RSI-2D-1200N RED/BLACK 029-25336-010
1021 through 1437 464 through 652 Y2RSI-2D-1690 PINK 029-25336-011
1438 through 2244 653 through 1018 Y2RSI-2D-2640N PINK/GRAY 029-25336-012
2245 through 2618 1019 through 1188 Y2RSI-2D-2870N PINK/GRAY/ORANGE 029-25336-013
2619 through 3740 1189 through 1696 Y2RSI-2D-3280N PINK/GRAY/DK BROWN 029-25336-014
* Value is de-rated by 15%

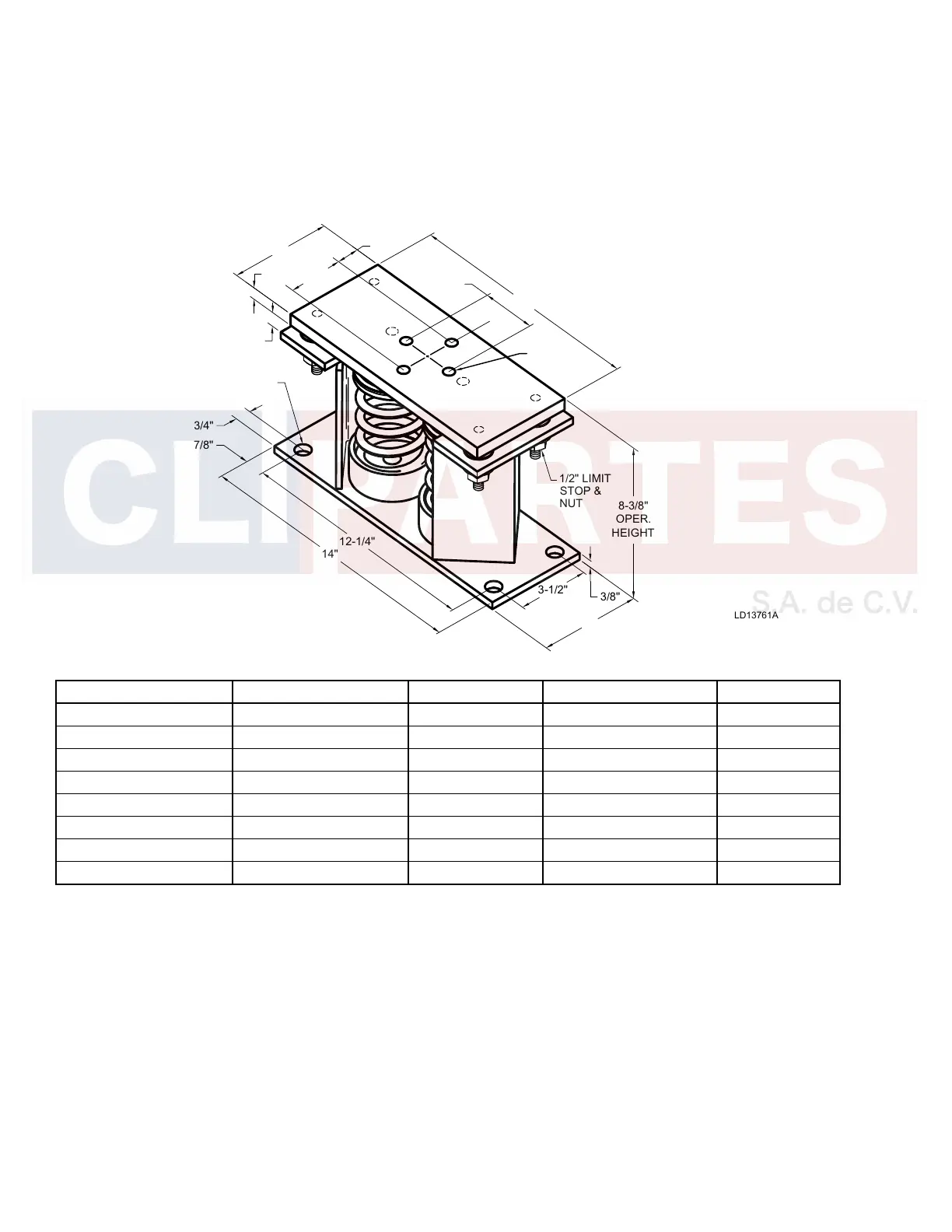

LD13761A
Y2RS
12"
5"
2-3/4"
12-1/4"
8-3/8"
OPER.
HEIGHT
14"
5/8"
3/8"
Ø3/4"
TYP.(4)
3-1/2"
5/8-11UNC
TYP. (4)
2-3/4"
3/4"
7/8"
1-1/8"
3/8" GAP
5"
1/2" LIMIT
STOP &
NUT
NOTES:
1. ALL DIMENSIONS ARE IN INCHES, INTERPRET PER ANSI Y14.
2. STANDARD FINISH: HOUSING-POWDER COATED (COLOR:BLACK), SPRING-POWDER COATED (COLOR: SEE T
HARDWARE ZINC-ELECTROPLATE.
3. EQUIPMENT MUST BE BOLTED OR WELDED TO THE TOP PLATE TO MEET ALLOWABLE SEISMIC RATINGS.
4. ALL SPRINGS ARE DESIGNED FOR 50% OVERLOAD CAPACITY WITH EXCEPTION OF THE 2D-3280N & 2D-2870
5. REFER TO PAGE FOR INSTALLATION INSTRUCTIONS.
6. CONSULT FACTORY FOR CONCRETE INSTALLATION.
NOTES:
1. All dimensions are in inches, interpret per ANSI Y14.
2. Standard nish: housing-powder coated (color, black), spring-powder coated (color, see table above) hardware - zinc-electroplate.
3. Equipment must be bolted or welded to the top plate to meet allowable seismic ratings.
4. All springs are designed for 50% overload capacity with exception of the 2D-3280N and 2D-2870.
5. Refer to next page for installation instructions.
6. Consult factory for concrete installation.
