JOHNSON CONTROLS
71
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6

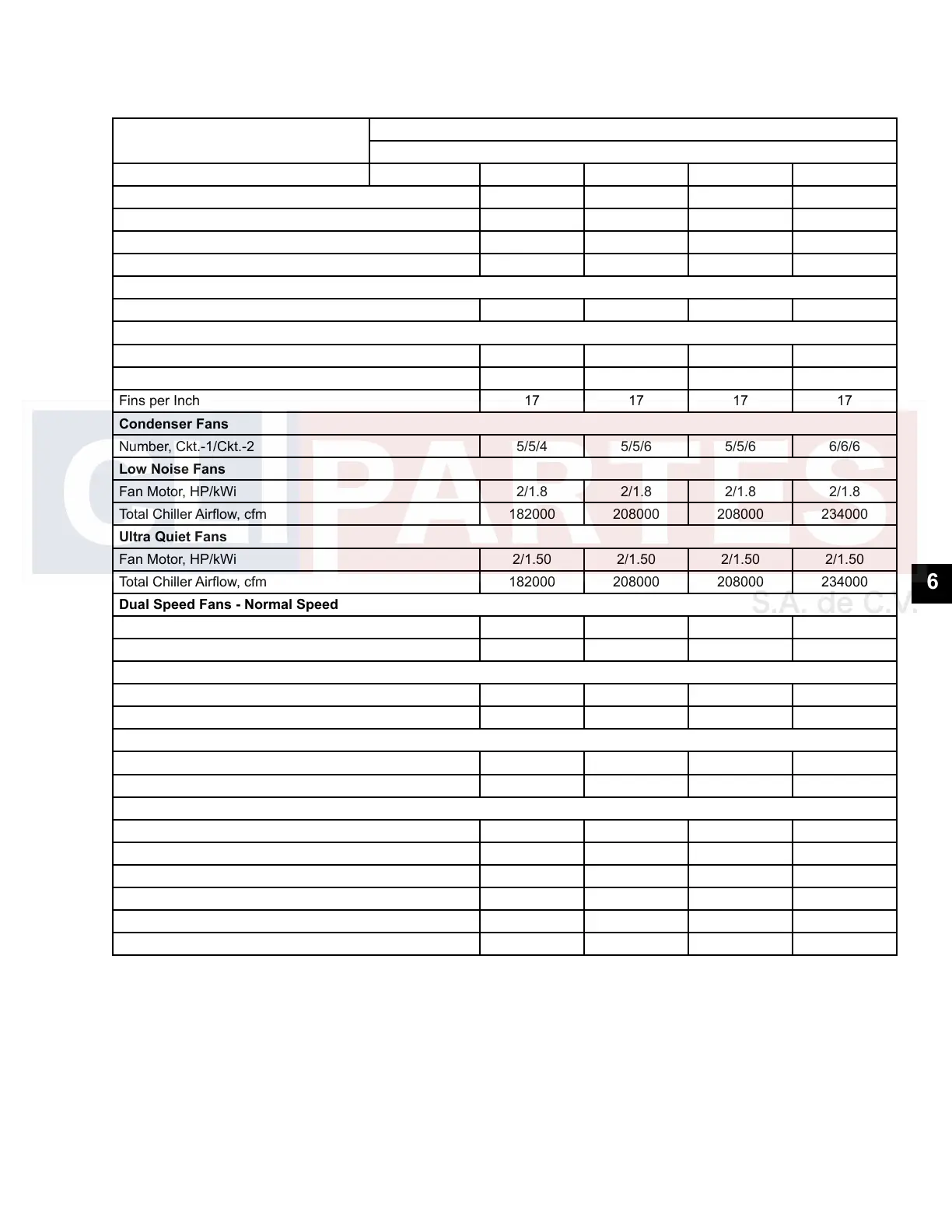

PHYSICAL DATA (ENGLISH - HIGH EFFICIENCY) (CONT'D)
Refrigerant R-134a
HIGH EFFICIENCY
MODEL NUMBER (YCIV____ E/V)
General Unit Data 60Hz 0267 0287 0327 0357
Number of Independent Refrigerant Circuits 3 3 3 3
Refrigerant Charge, R-134a, Ckt.-1/Ckt.-2, lbs 185/185/170 185/185/230 185/185/230 230/230/230
Oil Charge, Ckt.-1/Ckt.-2, gal. 5/5/4 5/5/5 5/5/5 5/5/5
Glycol Charge (43% concentration), gal 5.5 5.7 6.0 6.3
Comp.s, Semihermetic Screw
Quantity per Chiller 3 3 3 3
Condensers, High Efficiency Fin/Tube with Integral Subcooler
Total Chiller Coil Face Area, ft2 411 469 469 528
Number of Rows 3 3 3 3
Fins per Inch 17 17 17 17
Condenser Fans
Number, Ckt.-1/Ckt.-2 5/5/4 5/5/6 5/5/6 6/6/6
Low Noise Fans
Fan Motor, HP/kWi 2/1.8 2/1.8 2/1.8 2/1.8
Total Chiller Airow, cfm 182000 208000 208000 234000
Ultra Quiet Fans
Fan Motor, HP/kWi 2/1.50 2/1.50 2/1.50 2/1.50
Total Chiller Airow, cfm 182000 208000 208000 234000
Dual Speed Fans - Normal Speed
Fan Motor, hp 2 2 2 2
Total Chiller, CFM 154000 176000 176000 198000
Dual Speed Fans - Lower Speed
Fan Motor, hp 2 2 2 2
Total Chiller, CFM 117600 134400 134400 151200
High Static Fans
Fan Motor, hp 5 5 5 5
Total Chiller, CFM 195000 247000 247000 273000
Evaporator, Direct Expansion
Water Volume, gals. 202.0 202.0 236.0 236.0
Maximum Water Side Pressure, PSIG 150 150 150 150
Maximum Refrigerant Side Pressure, PSIG 235 235 235 235
Minimum Chilled Water Flow Rate, gpm 250 250 300 300
Maximum Chilled Water Flow Rate, gpm 1200 1200 1200 1200
Water Connections, inches 10 10 10 10
