Johnson Controls York YCIV A Series - Page 299

JOHNSON CONTROLS
299
SECTION 8 - MICROPANEL
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
8
BOARD HEADER ANALOG OUTPUT
Chiller Control / Relay Board 3 J11-5 / TB1-12 and 11 Sys 4 Economizer Solenoid Valve
Chiller Control / Relay Board 3 J11-6 / TB1-10 and 9 Sys 4 SPARE
Chiller Control / Relay Board 3 J11-7 / TB1-8 and 7 Sys 3 SPARE
Chiller Control / Relay Board 3 J11-8 / TB1-6 Sys 3 Condenser Fans Output 1
Chiller Control / Relay Board 3 J11-9 / TB1-5 Sys 3 Condenser Fans Output 2
Chiller Control / Relay Board 3 J11-10 / TB1-4 Sys 3 Condenser Fans Output 3
Chiller Control / Relay Board 3 J11-11 / TB1-3 Sys 3 Compressor Heater
Chiller Control / Relay Board 3 J11-12 / TB1-2 Sys 3 Economizer Solenoid Valve
VSD Logic Board J6-1 Comp 1 Phase A+ IGBT Gating Signal
VSD Logic Board J6-3 Comp 1 Phase B- IGBT Gating Signal
VSD Logic Board J6-4 Comp 1 Phase C+ IGBT Gating Signal
VSD Logic Board J6-10 Comp 1 Phase A- IGBT Gating Signal
VSD Logic Board J6-11 Comp 1 Phase B+ IGBT Gating Signal
VSD Logic Board J6-13 Comp 1 Phase C- IGBT Gating Signal
VSD Logic Board J6-14 Comp1 Enable
VSD Logic Board J7-1 Comp 3 Phase A+ IGBT Gating Signal
VSD Logic Board J7-3 Comp 3 Phase B- IGBT Gating Signal
VSD Logic Board J7-4 Comp 3 Phase C+ IGBT Gating Signal
VSD Logic Board J7-10 Comp 3 Phase A- IGBT Gating Signal
VSD Logic Board J7-11 Comp 3 Phase B+ IGBT Gating Signal
VSD Logic Board J7-13 Comp 3 Phase C- IGBT Gating Signal
VSD Logic Board J7-14 Comp 3 Enable
VSD Logic Board J8-1 Comp 2 Phase A+ IGBT Gating Signal
VSD Logic Board J8-3 Comp 2 Phase B- IGBT Gating Signal
VSD Logic Board J8-4 Comp 2 Phase C+ IGBT Gating Signal
VSD Logic Board J8-10 Comp 2 Phase A- IGBT Gating Signal
VSD Logic Board J8-11 Comp 2 Phase B+ IGBT Gating Signal
VSD Logic Board J8-13 Comp 2 Phase C- IGBT Gating Signal
VSD Logic Board J8-14 Comp 2 Enable
VSD Logic Board J9-1 Comp 4 Phase A+ IGBT Gating Signal
VSD Logic Board J9-3 Comp 4 Phase B- IGBT Gating Signal
VSD Logic Board J9-4 Comp 4 Phase C+ IGBT Gating Signal
VSD Logic Board J9-10 Comp 4 Phase A- IGBT Gating Signal
VSD Logic Board J9-11 Comp 4 Phase B+ IGBT Gating Signal
VSD Logic Board J9-13 Comp 4 Phase C- IGBT Gating Signal
VSD Logic Board J9-12 Comp 4 Enable
VSD Logic Board J11-3 Pre-charge Enable 1
VSD Logic Board J11-7 Pre-charge Enable 2
VSD Logic Board J10-1 to J10-2 VSD Fan / Pump Run
VSD Logic Board J10-3 to J10-4 VSD Fault Relay (to control panel)

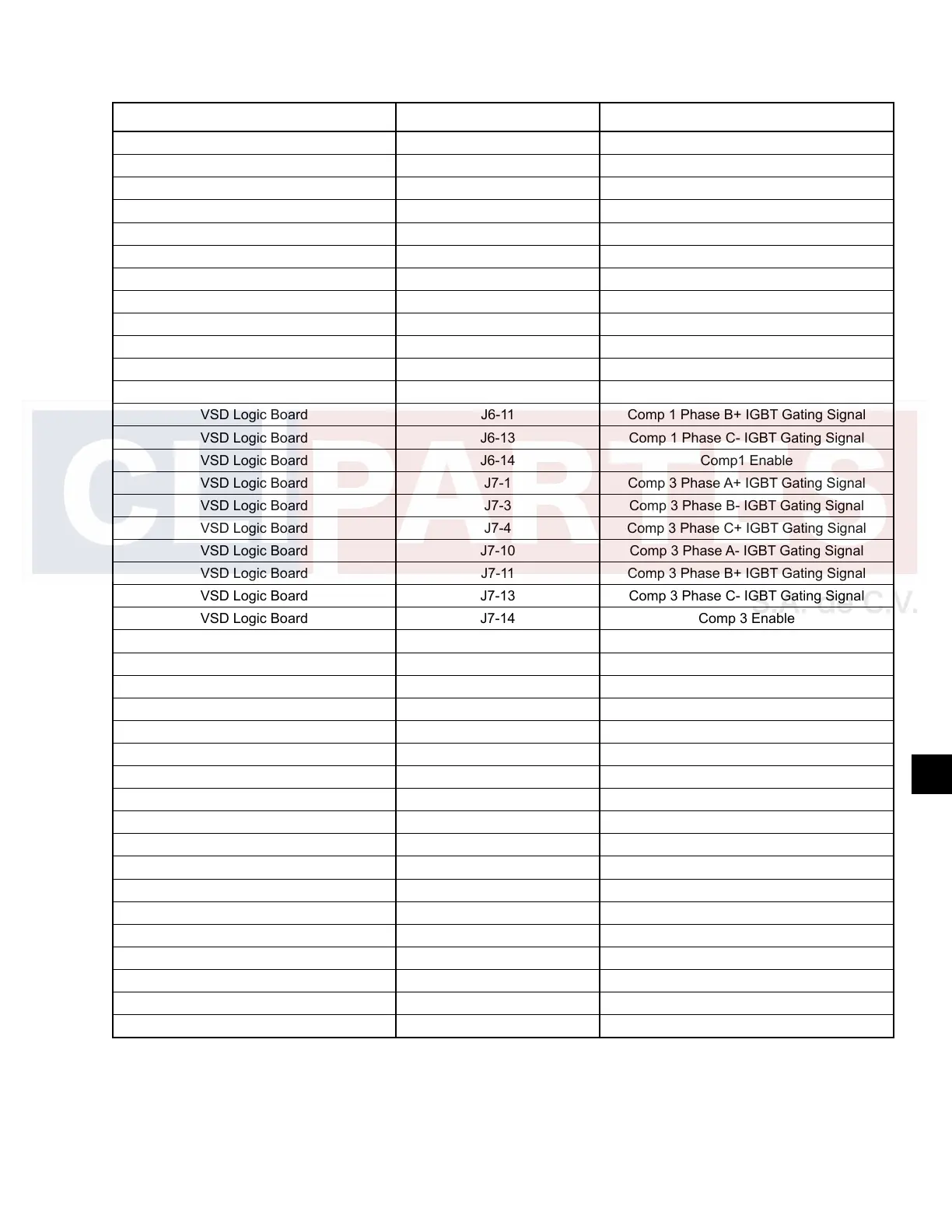

FIGURE 24 - DIGITAL OUTPUT CONNECTIONS (CONT'D)
