JOHNSON CONTROLS
63
SECTION 6 - TECHNICAL DATA
FORM 201.23-NM2
ISSUE DATE: 3/9/2015
6
1
10
100
100 1000
Water Flow Rate (GPM)
Pressure Drop
(f
tH2
O)
2000
A
B

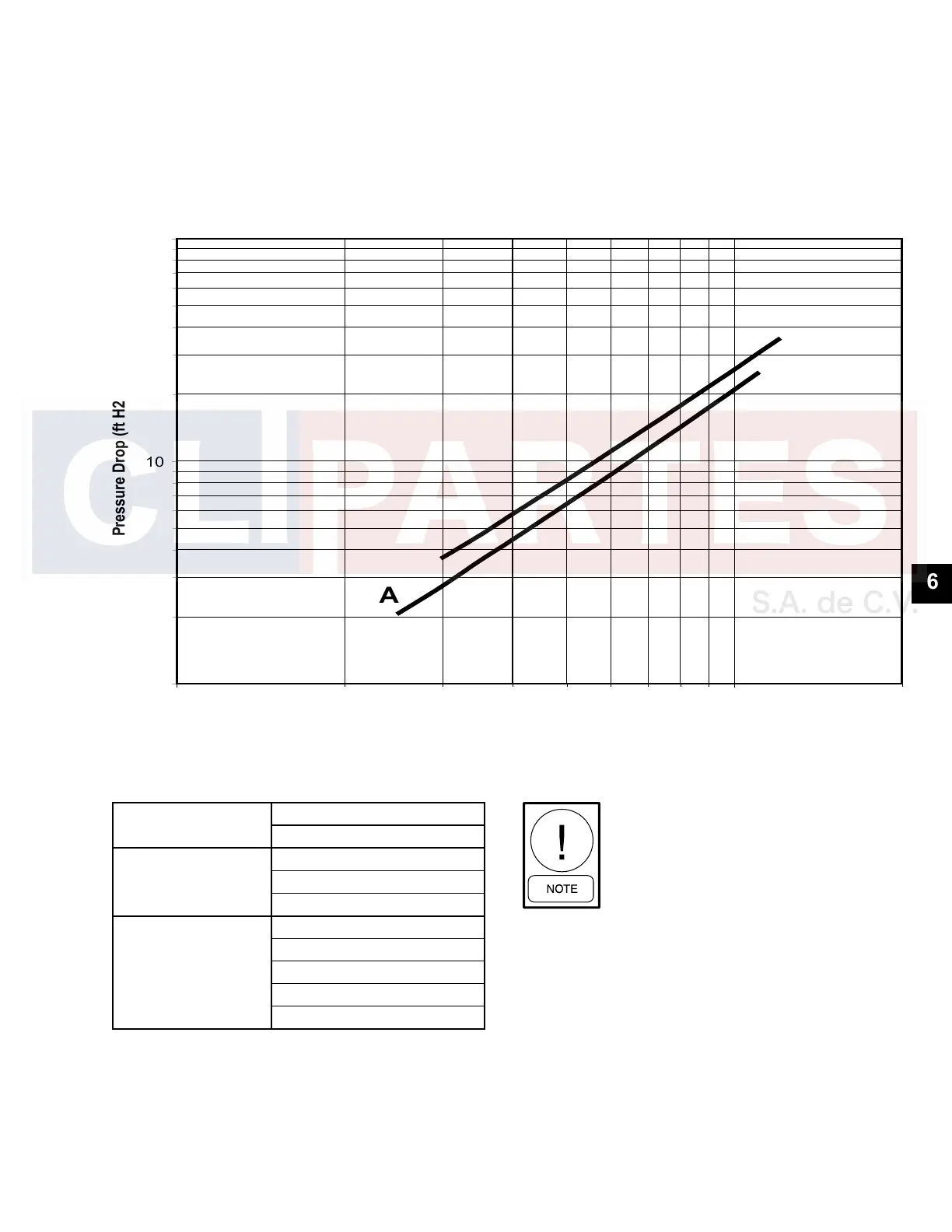

Pressure Drop Through Three Circuit YCIV Evaporators
ENGLISH UNITS
Pressure Drop Through Three Circuit YCIV Evaporators
EVAP
MODEL NUMBER YCIV
60HZ
A
0267EA/VA
0287SA/PA
0287EA/VA
B
0307SA/PA
0327EA/VA
0357SA/PA
0357EA/VA
0397SA/PA
WATER PRESSURE DROP CHARTS (CONT'D)
Excessive ow, above the max. GPM, will
damage the evaporator.
