JRC JR-8600 - Setting a Position Fixing Mode; Setting an Elevation Mask

4-59

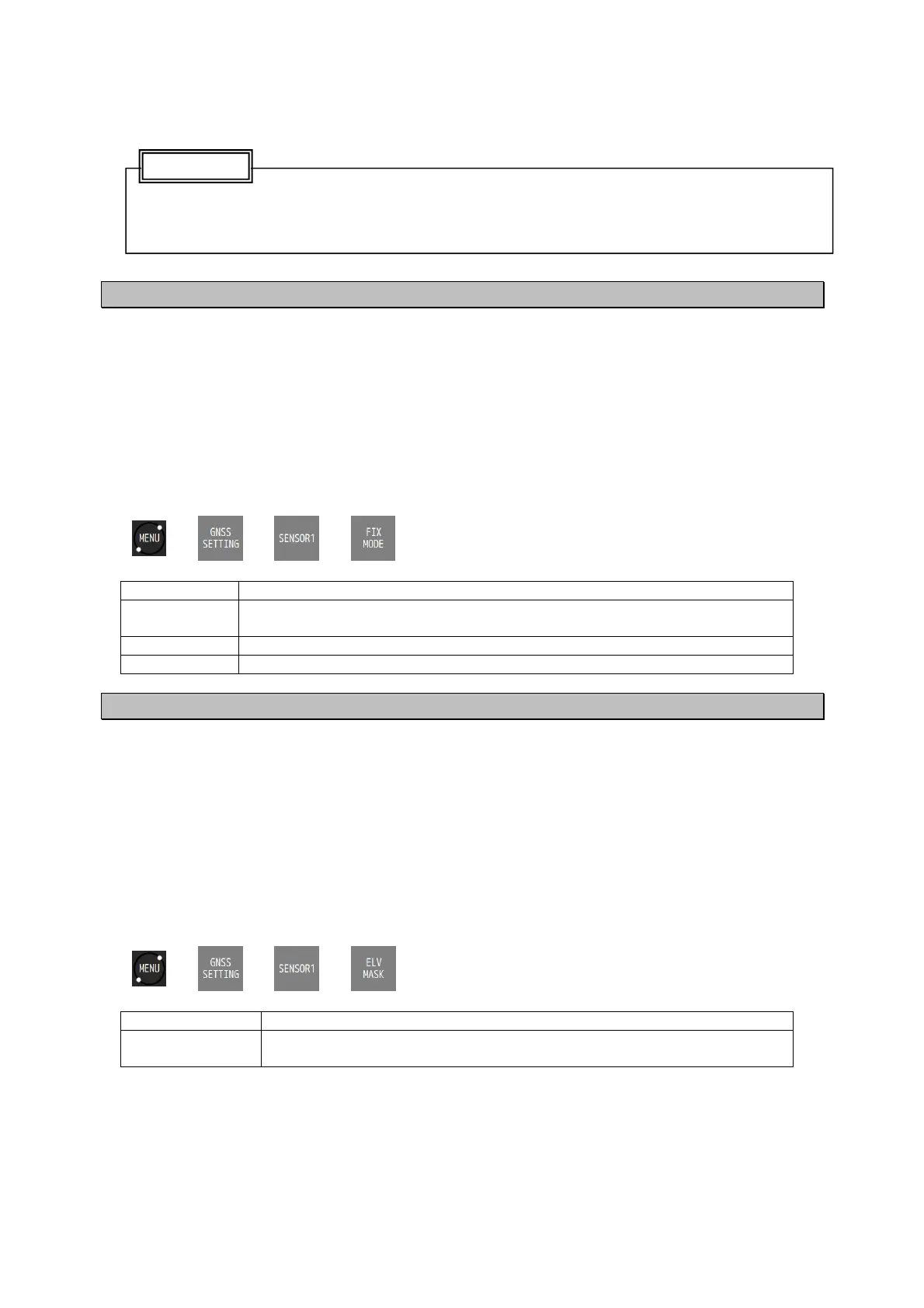

4.12.2 Setting a position fixing mode
A position fixing mode can be selected from Automatic, 3-dimensional position fixing, and
2-dimensional position fixing.
For a processor with two sensors connected, the sensors must be set individually.
In this example, sensor 1 is connected. The same procedure is applied for setting sensor 2 also.
Procedure
1. Enter a password by referencing "4.2.11. Entering a password with CODE INPUT”.
Password: 1650
2.
  
4.12.3 Setting an elevation mask
Set an elevation mask.
When an elevation mask is set, the satellites of the elevations lower than the set value are not
used for position fixing.
For a processor with two sensors connected, the sensors must be set individually.
In this example, sensor 1 is connected. The same procedure is applied for setting sensor 2 also.
Procedure
1. Enter a password by referencing "4.2.11. Entering a password with CODE INPUT”.
Password: 1650
2.
  
FIX MODE Description
AUTO Switches to the optimum position fixing mode automatically from the
3-dimensional position fixin
g
or 2-dimensional position fixin
g
mode.
2D Positions in 2-dimensional position fixing mode.
3D Positions in 3-dimensional position fixin
g
mode.
ELV MASK Description
SAT ELV MASK Set an elevation mask.
Set an elevation within the ran
g
e from 5 to 89 de
g
rees.
When a positioning system is changed, non-positioning is set temporarily.
Although the condition is rectified immediately, note that the information to the external equipment
that is connected is also set to non-positioning.
Memo
