3-5

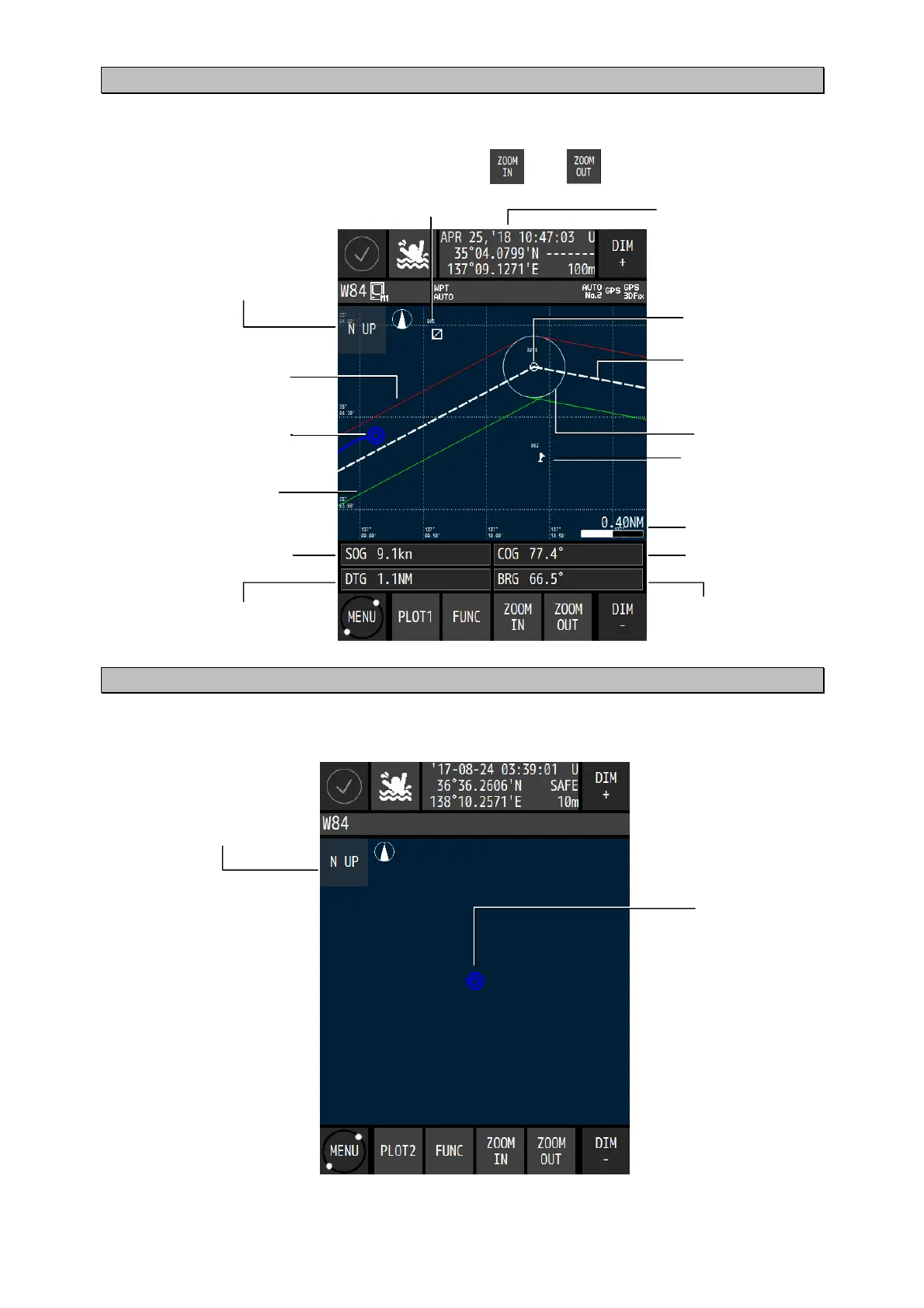

3.1.3 Plotting screen 1
Plotting screen 1 displays the course, speed, bearing, and distance at the bottom of the screen.
The screen can be enhanced and reduced by using and .
3.1.4 Plotting screen 2
Plotting screen 2 displays a plotting screen in full screen mode.
The display contents and the operation are the same as for the plotting screen 1.
Own ship
symbol
Waypoint
symbol
Date and Time
Own ship's position
(latitude and longitude)
Route
Northerly directions
Width of the
starboard-side route
rrival circle
Width of the
port-side route
Scale bar
Event symbol
Mark symbol
Bearing from the own
ship's position to the
waypoint
Course
Speed
Distance from the own ship's
position to the waypoint
Own ship
symbol
Northerly directions
To Next Page
