4.5 Route Plan
A route can be created by using registered waypoints.
Up to 100 routes can be created in this equipment and up to 512 waypoints can be specified
per route. Waypoint information can be set for each LEG such as a route width, an arrival
radius, and GC/RL.
For the waypoint information that can be set, refer to “4.5.1 Displaying a route list”.
A created route can be shared with external equipment such as ECDIS.
A created route is registered in a route list.
A route list is divided into three areas and is managed by numbers from 1 to 102.
Numbers from 1 to 100: The route that was created in this equipment is registered.
Number 101: The shared active route that is sent from ECDIS is registered.
Number 102: A temporary route is registered.
Since routes from numbers 1 to 101 are saved, they are not cleared even if the power is turned
off. However, route number 102 is cleared if the power is turned off since it is not saved.
4.5.1 Displaying a route list
Routes that were created can be displayed in a route list. Information on each LEG of the route
and waypoint information of each LEG can be displayed.
The required time cannot be calculated for the route that contains the LEG without planned ship
speed.

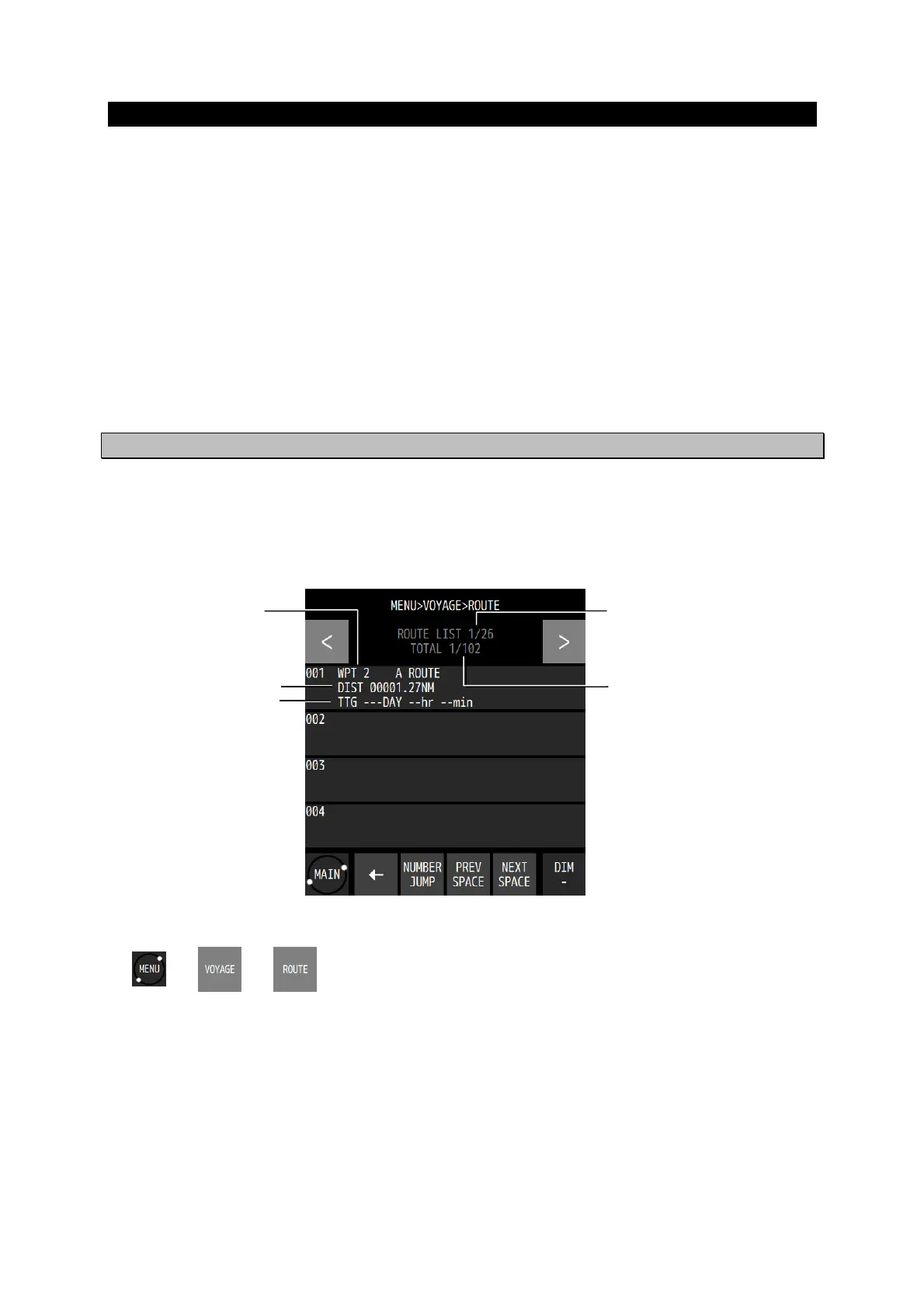

Procedure
1.
A route list is displayed.
When a registered route is tapped, the LEG information can be displayed.
Number of waypoints
on the route
Total route distance
Total time required for
the routes
Number of pages of
the route list
Number of
outes
registered
Comment
To Next Page
