4-47

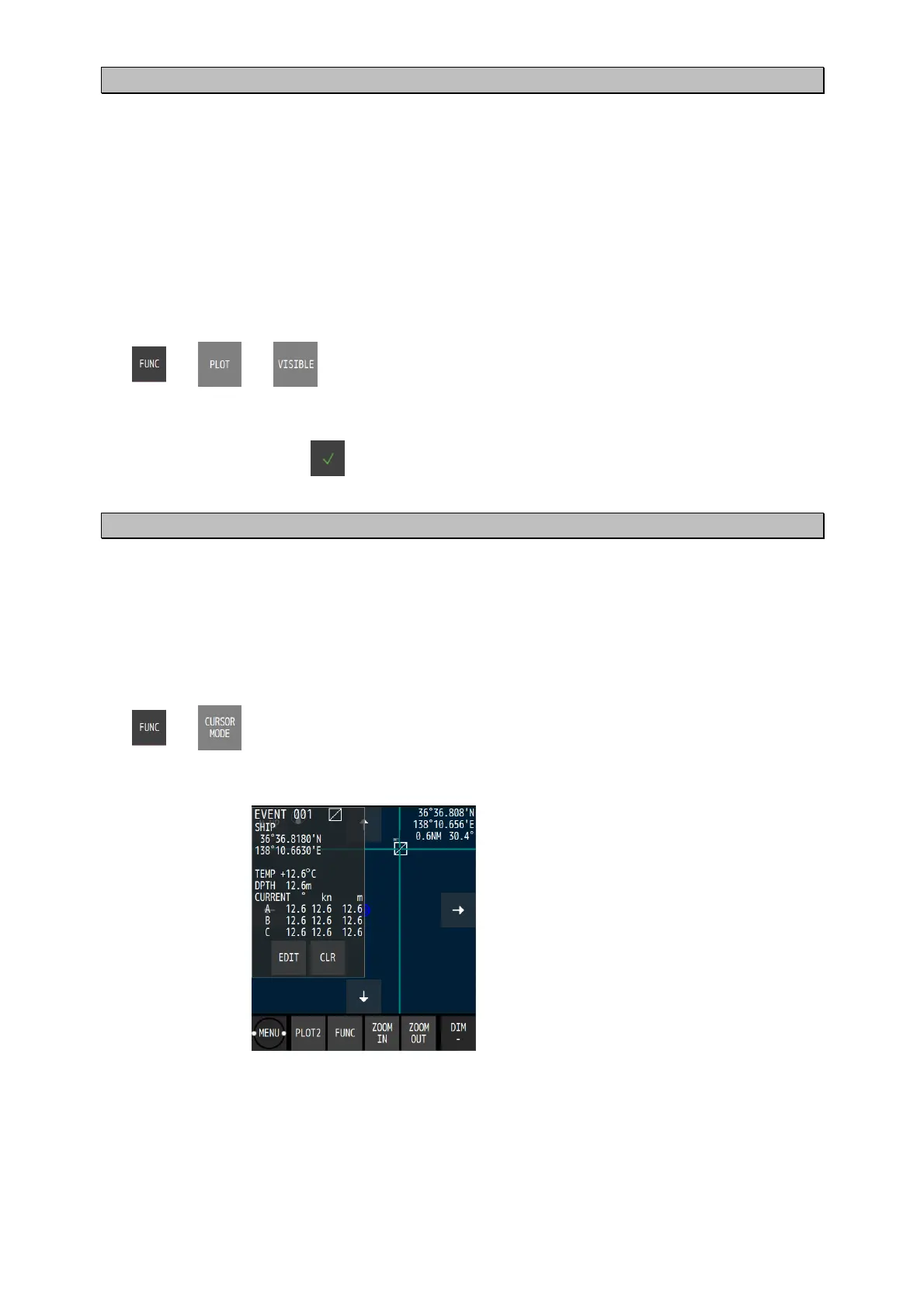

4.8.9 Setting symbols to display/non-display
Symbols that are displayed on a plotting screen can be set to non-display individually.
Set the symbols that are not to be displayed to "OFF".
Set the symbols that are to be displayed to "ON".
The following symbols can be set to display/non-display.
Waypoint, waypoint number, mark, event, event/mark number, track, arrival circle, route width,
scale bar, symbol information, cursor position information, grid line, grid latitude, and grid
longitude
Procedure
1. Display the PLOT1 or PLOT2 screen.
2.
3. Set the items to be displayed to “ON”.
4. Confirm the setting with .
4.8.10 Displaying symbol information
When the cursor is moved to a waypoint, an event, or mark symbol, the contents of each symbol
are displayed.
Procedure
1. Display the PLOT1 or PLOT2 screen.
2.
A cursor is displayed...
3. Move the cursor to symbol whose information is to be displayed.
When a water temperature, a depth, and a current are received from external equipment, the
water temperature, depth, and current at the storing of EVENT can be displayed. However, the
external equipment must be connected.
To clear symbol information, move the cursor from the symbol.
To edit the information, tap “EDIT” and to clear the information, tap “CLR”.
