2-2

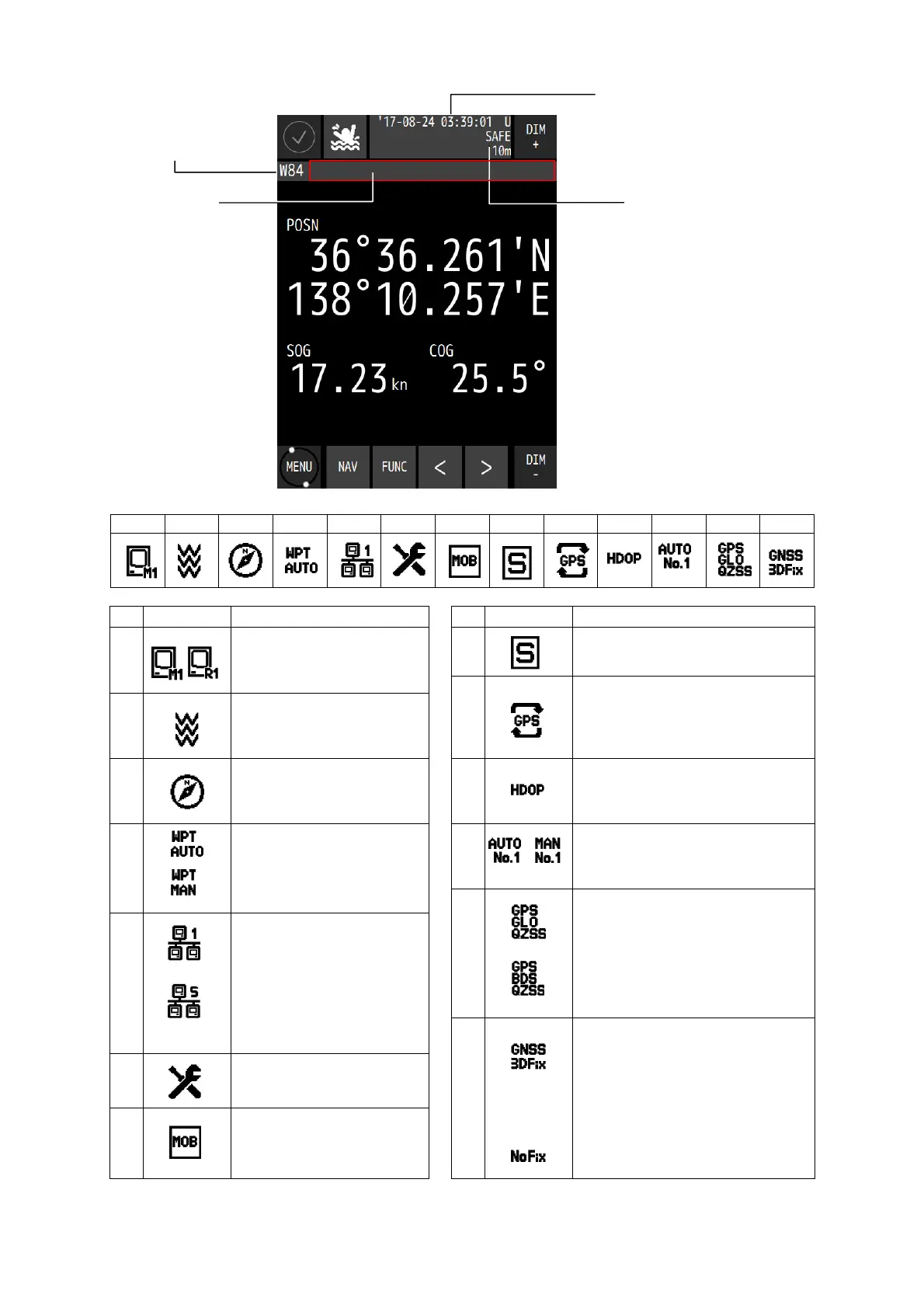

How to read the information on the display
Status list
1 2 3 4 5 6 7 8 9 10 11 12 13
No Icon Description No Icon Description
1
Display unit number
M: Main display unit
R: Remote display unit
8
Demo mode
Displayed in demo mode.
9
DGPS switched.
Indicates that the mode has just
changed from GPS to DGPS.
This icon is cleared automatically
five minutes after the switch.
2
Received beacon
information.
Displayed when beacon
information is received.
3
Magnetic correction
Displayed when magnetic
correction is set.
10
HDOP alert
Displayed when the value exceeded
the setting value.
4
Waypoint update state
Displays the waypoint update
mode during route execution.
AUTO: Automatic
MAN: Manual
11
Sensor number using display
AUTO: A sensor is selected
automatically.
MAN: A sensor is selected manually.
12
Positioning system
Indicates the currently set
positioning system.
The positioning system that is set
but cannot be used is displayed in
yellow.
GPS: GPS GLO: GLONASS
QZSS: QZSS BDS: BeiDou
5
Route sharing
Displayed when an Active
route is shared.
1: Share 1, 2: Share 2,
3: Share 3, 4: Share 4,
5: Share 5
13
Position fixing status
GNSS: GNSS position fixing
GPS: GPS position fixing
DGPS: Beacon DGPS position fixing
SBAS: SBAS position fixing
2D: 2 dimensional position fixing
3D: 3 dimensional position fixing
No Fix: Non position fixing
6
Installation mode
Displayed in the installation
setting mode.
7
MOB
Displays when MOB is active.
RAIM
Displays the currently set
accuracy level.
RAIM operating: 10m, 30m,
50m,100m
RAIM OFF：OFF
No faulty satellite: SAFE
RAIM disabled: CAUTION
Faulty satellite: UNSAFE
Geodetic
positioning system
Status
See the status list
for the contents of
the status.
Date and time display (note1
U: UTC
L: Local
In the 12-hour display, AM/PM
is displayed.
note1
Although the displayed time may
be out of sync with other display
devices, it is because the data
output timing is different and it is
not a malfunction.
