IMAGO F3000 / 10.01 23
5 Instrument Description

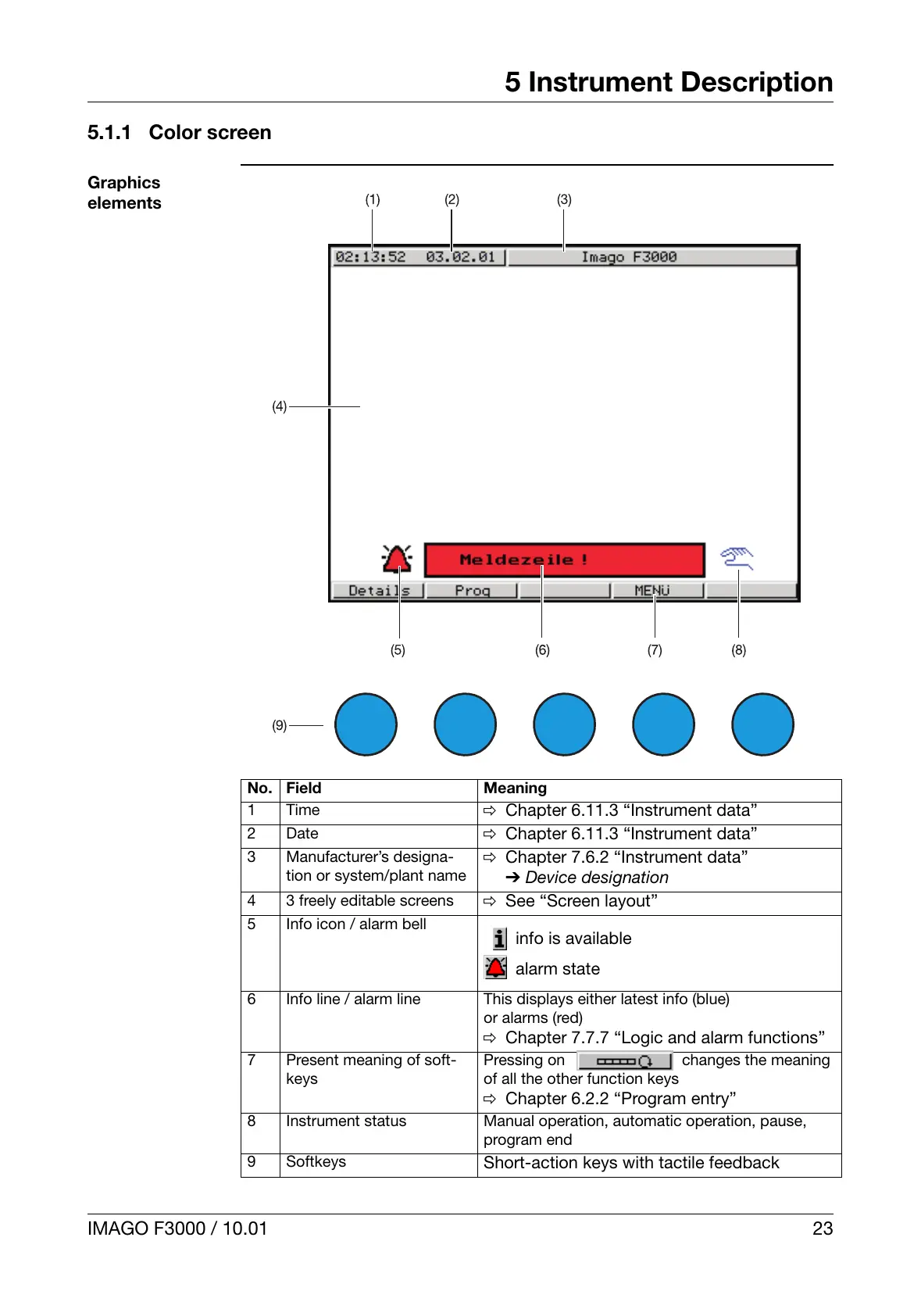

5.1.1 Color screen
Graphics
elements
No. Field Meaning
1 Time
v Chapter 6.11.3 “Instrument data”
2 Date
v Chapter 6.11.3 “Instrument data”
3 Manufacturer’s designa-
tion or system/plant name
v Chapter 7.6.2 “Instrument data”
➔ Device designation
4 3 freely editable screens
v See “Screen layout”
5 Info icon / alarm bell
6 Info line / alarm line This displays either latest info (blue)
or alarms (red)
v Chapter 7.7.7 “Logic and alarm functions”
7 Present meaning of soft-
keys
Pressing on changes the meaning
of all the other function keys
v Chapter 6.2.2 “Program entry”
8 Instrument status Manual operation, automatic operation, pause,
program end
9 Softkeys
Short-action keys with tactile feedback
info is available
alarm state
