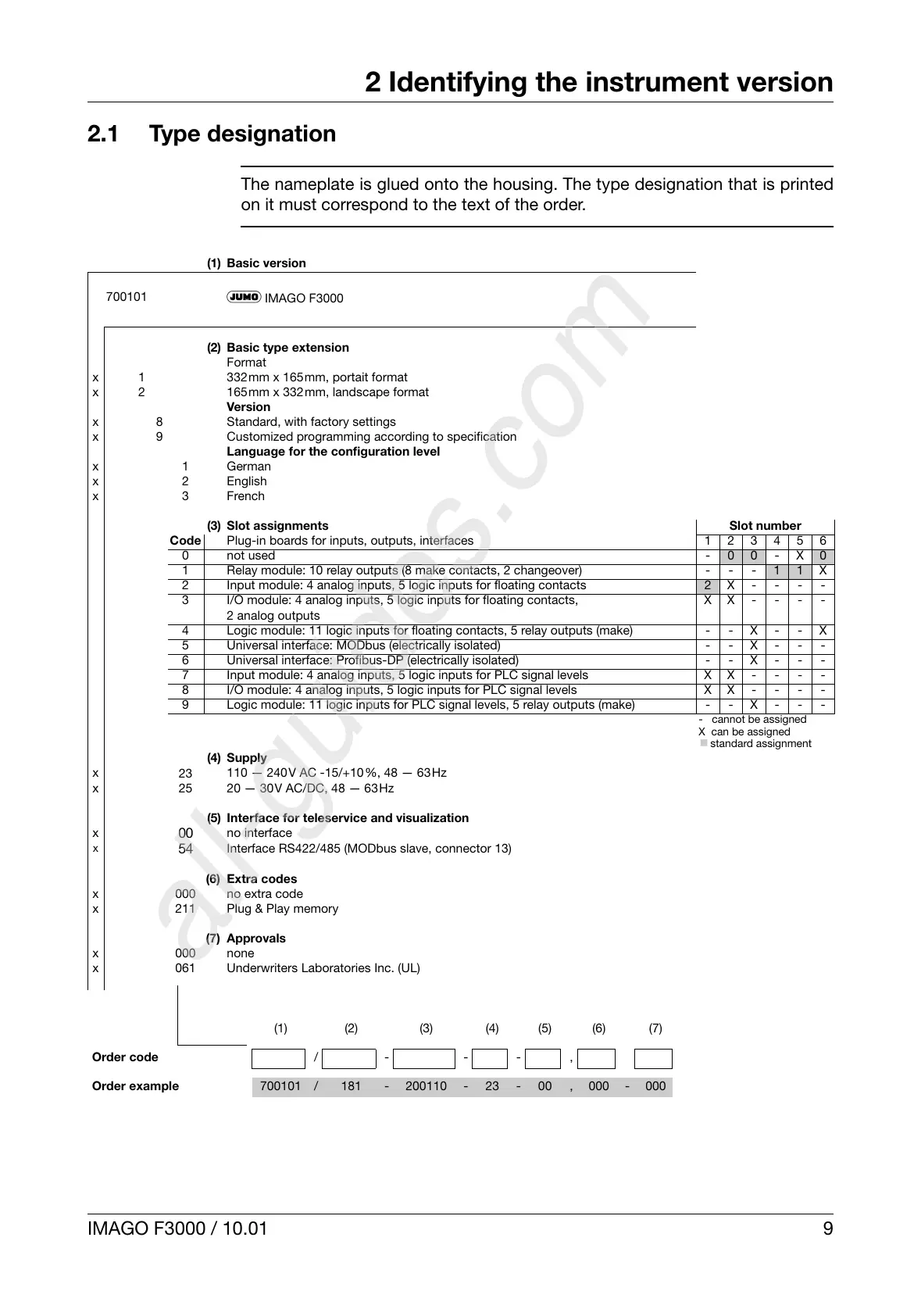

2 Identifying the instrument version
2.1 Type designation
The nameplate is glued onto the housing. The type designation that is printed
on it must correspond to the text of the order.
(1) Basic version
700101
J
IMAGO F3000
(2) Basic type extension
Format
x 1 332mm x 165mm, portait format
x 2 165mm x 332mm, landscape format
Version
x 8 Standard, with factory settings
x 9 Customized programming according to specification
Language for the configuration level
x 1 German
x 2 English
x 3 French
(3) Slot assignments Slot number
Code
Plug-in boards for inputs, outputs, interfaces 1 2 3 4 5 6
0 not used - 0 0 - X 0
1 Relay module: 10 relay outputs (8 make contacts, 2 changeover) - - - 1 1 X
2 Input module: 4 analog inputs, 5 logic inputs for floating contacts 2 X - - - -
3 I/O module: 4 analog inputs, 5 logic inputs for floating contacts,
2 analog outputs
X X - - - -
4 Logic module: 11 logic inputs for floating contacts, 5 relay outputs (make) - - X - - X
5 Universal interface: MODbus (electrically isolated) - - X - - -
6 Universal interface: Profibus-DP (electrically isolated) - - X - - -
7 Input module: 4 analog inputs, 5 logic inputs for PLC signal levels X X - - - -
8 I/O module: 4 analog inputs, 5 logic inputs for PLC signal levels X X - - - -
9 Logic module: 11 logic inputs for PLC signal levels, 5 relay outputs (make) - - X - - -
- cannot be assigned
X can be assigned
kstandard assignment
(4) Supply
x
23
110 — 240V AC -15/+10%, 48 — 63Hz
x 25 20 — 30V AC/DC, 48 — 63Hz
(5) Interface for teleservice and visualization
x
00
no interface
x
54
Interface RS422/485 (MODbus slave, connector 13)
(6) Extra codes
x 000 no extra code
x 211 Plug & Play memory
(7) Approvals
x 000 none
x 061 Underwriters Laboratories Inc. (UL)
(1) (2) (3) (4) (5) (6) (7)
Order code
/ - - - ,
Order example
700101 / 181 - 200110 - 23 - 00 , 000 - 000
