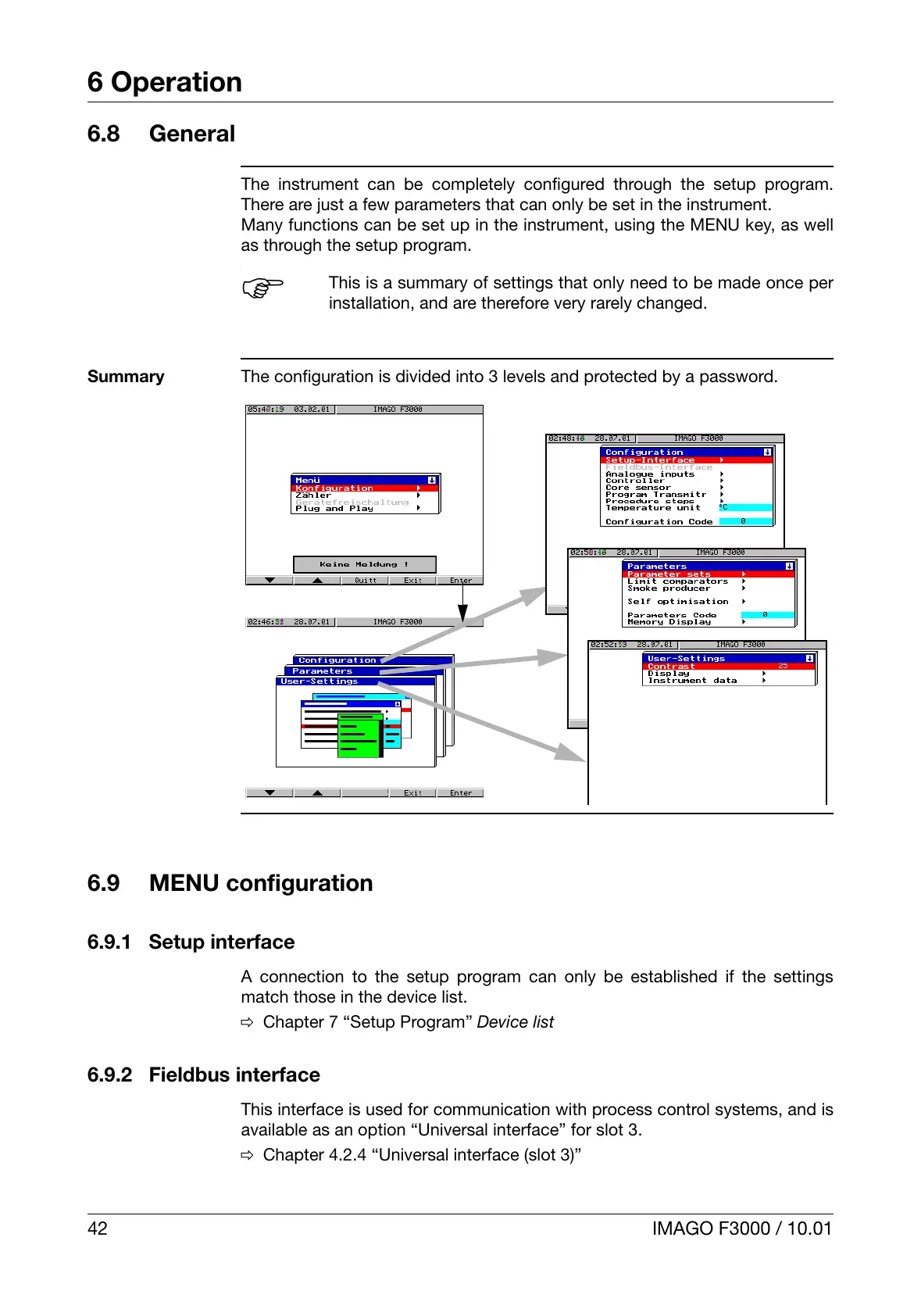

6 Operation
42 IMAGO F3000 / 10.01
6.8 General
The instrument can be completely configured through the setup program.
There are just a few parameters that can only be set in the instrument.
Many functions can be set up in the instrument, using the MENU key, as well
as through the setup program.
.
Summary The configuration is divided into 3 levels and protected by a password.
6.9 MENU configuration
6.9.1 Setup interface
A connection to the setup program can only be established if the settings
match those in the device list.
v Chapter 7 “Setup Program” Device list
6.9.2 Fieldbus interface
This interface is used for communication with process control systems, and is
available as an option “Universal interface” for slot 3.
v Chapter 4.2.4 “Universal interface (slot 3)”
H
This is a summary of settings that only need to be made once per
installation, and are therefore very rarely changed.
