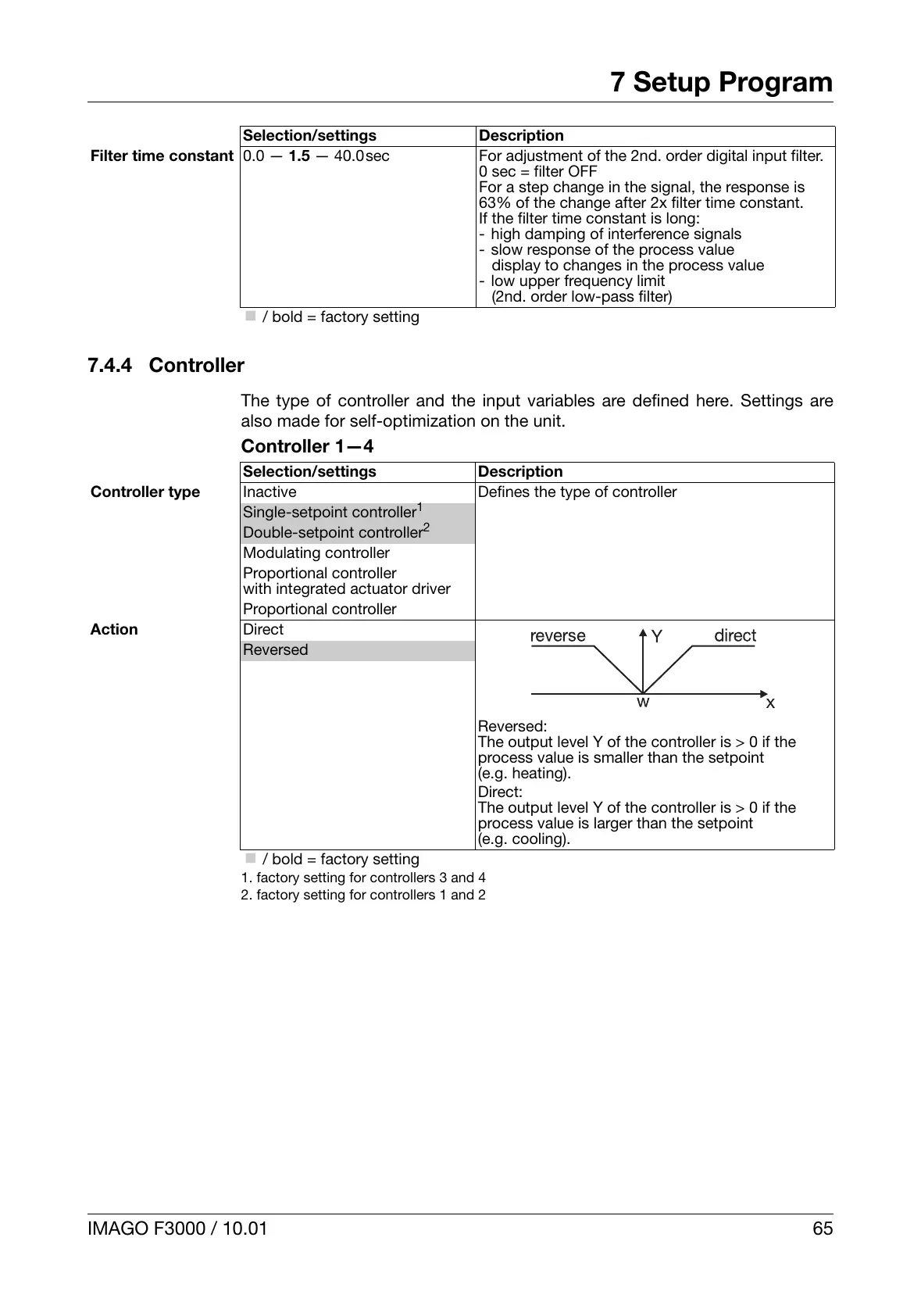

7 Setup Program
7.4.4 Controller
The type of controller and the input variables are defined here. Settings are
also made for self-optimization on the unit.
Controller 1—4
1. factory setting for controllers 3 and 4
2. factory setting for controllers 1 and 2
Filter time constant 0.0 — 1.5 — 40.0sec For adjustment of the 2nd. order digital input filter.
0 sec = filter OFF
For a step change in the signal, the response is
63% of the change after 2x filter time constant.
If the filter time constant is long:
- high damping of interference signals
- slow response of the process value
display to changes in the process value
- low upper frequency limit
(2nd. order low-pass filter)
Selection/settings Description
k / bold = factory setting
Selection/settings Description
Controller type
Inactive Defines the type of controller
Single-setpoint controller
1
Double-setpoint controller
2
Modulating controller
Proportional controller
with integrated actuator driver
Proportional controller
Action
Direct
Reversed:
The output level Y of the controller is > 0 if the
process value is smaller than the setpoint
(e.g. heating).
Direct:
The output level Y of the controller is > 0 if the
process value is larger than the setpoint
(e.g. cooling).
Reversed
k / bold = factory setting
