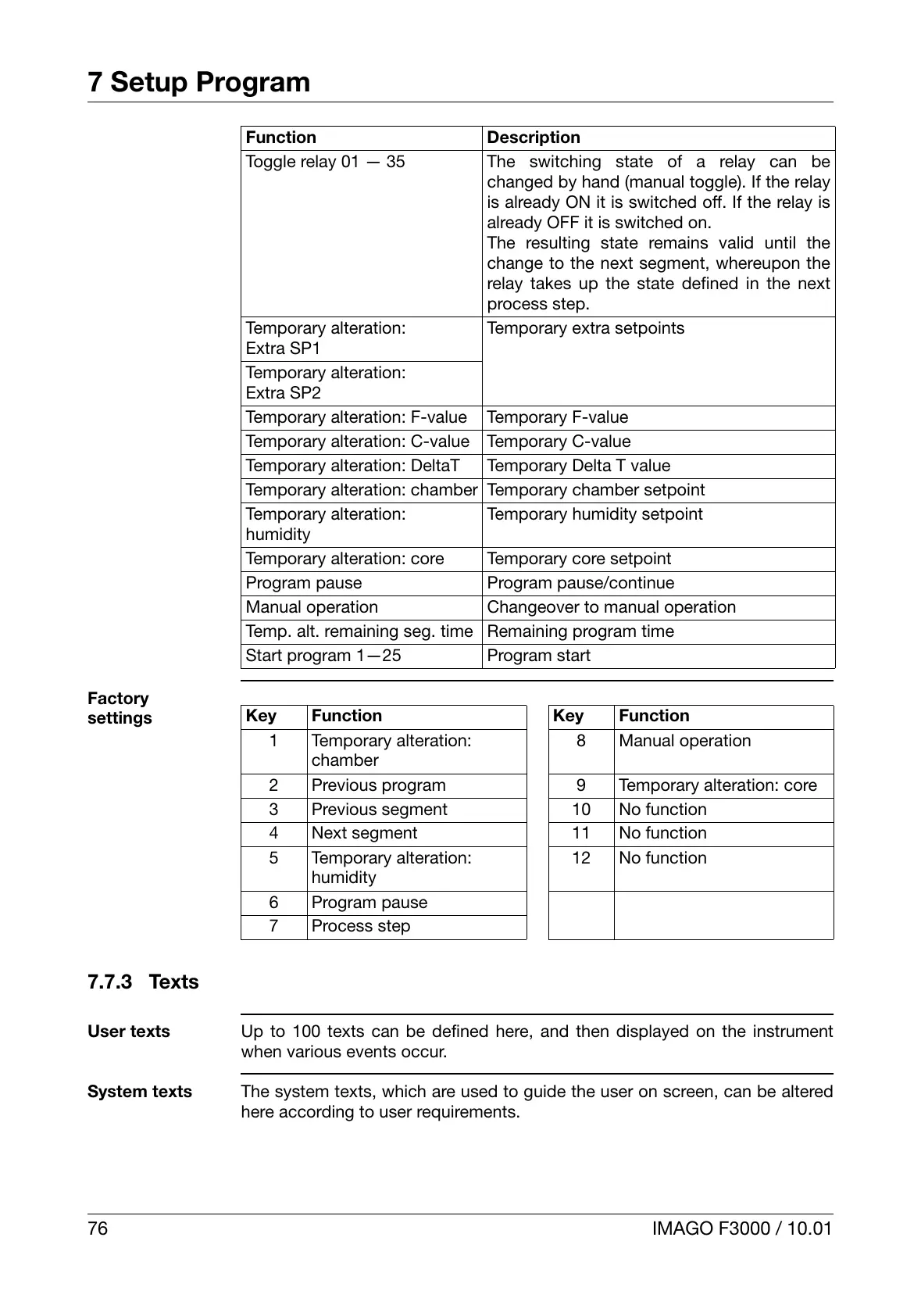

7 Setup Program
76 IMAGO F3000 / 10.01
Factory
settings
7.7.3 Texts
User texts
Up to 100 texts can be defined here, and then displayed on the instrument
when various events occur.
System texts
The system texts, which are used to guide the user on screen, can be altered
here according to user requirements.
Toggle relay 01 — 35 The switching state of a relay can be
changed by hand (manual toggle). If the relay
is already ON it is switched off. If the relay is
already OFF it is switched on.
The resulting state remains valid until the
change to the next segment, whereupon the
relay takes up the state defined in the next
process step.
Temporary alteration:
Extra SP1
Temporary extra setpoints
Temporary alteration:
Extra SP2
Temporary alteration: F-value Temporary F-value
Temporary alteration: C-value Temporary C-value
Temporary alteration: DeltaT Temporary Delta T value
Temporary alteration: chamber Temporary chamber setpoint
Temporary alteration:
humidity
Temporary humidity setpoint
Temporary alteration: core Temporary core setpoint
Program pause Program pause/continue
Manual operation Changeover to manual operation
Temp. alt. remaining seg. time Remaining program time
Start program 1—25 Program start
Function Description
Key Function Key Function
1 Temporary alteration:
chamber
8 Manual operation
2 Previous program 9 Temporary alteration: core
3 Previous segment 10 No function
4 Next segment 11 No function
5 Temporary alteration:
humidity
12 No function
6 Program pause
7 Process step
