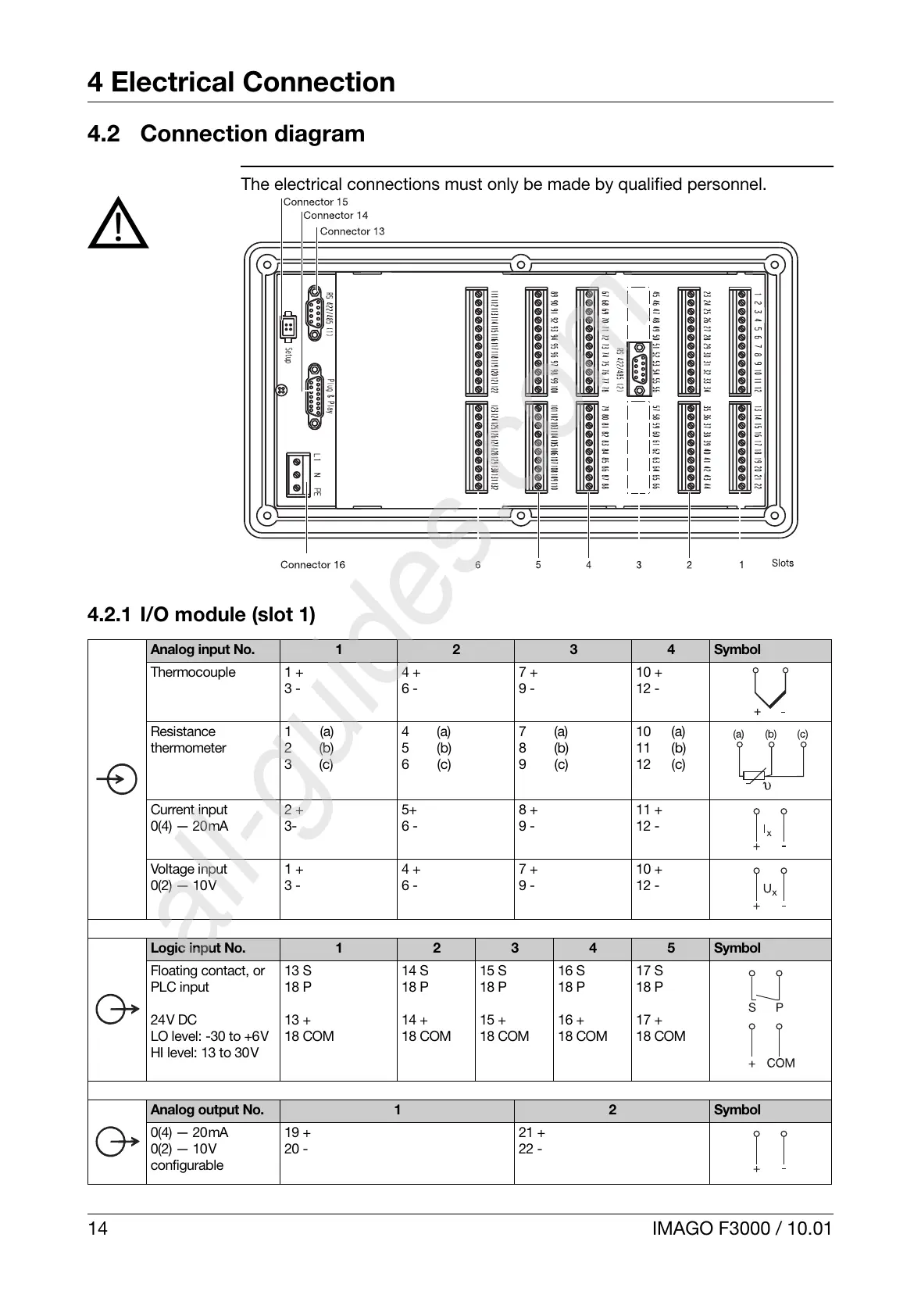

4 Electrical Connection
14 IMAGO F3000 / 10.01
4.2 Connection diagram
V
The electrical connections must only be made by qualified personnel.
4.2.1 I/O module (slot 1)
Analog input No. 1 2 3 4 Symbol
Thermocouple 1 +
3 -
4 +
6 -
7 +
9 -
10 +
12 -
Resistance
thermometer
1(a)
2(b)
3(c)
4(a)
5(b)
6(c)
7(a)
8(b)
9(c)
10 (a)
11 (b)
12 (c)
Current input
0(4) 20mA
2 +
3-
5+
6 -
8 +
9 -
11 +
12 -
Voltage input
0(2) 10V
1 +
3 -
4 +
6 -
7 +
9 -
10 +
12 -
Logic input No. 1 2 3 4 5 Symbol
Floating contact, or
PLC input
24V DC
LO level: -30 to +6V
HI level: 13 to 30V
13 S
18 P
13 +
18 COM
14 S
18 P
14 +
18 COM
15 S
18 P
15 +
18 COM
16 S
18 P
16 +
18 COM
17 S
18 P
17 +
18 COM
Analog output No. 1 2 Symbol
0(4) 20mA
0(2) 10V
configurable
19 +
20 -
21 +
22 -
