7 Setup Program
78 IMAGO F3000 / 10.01

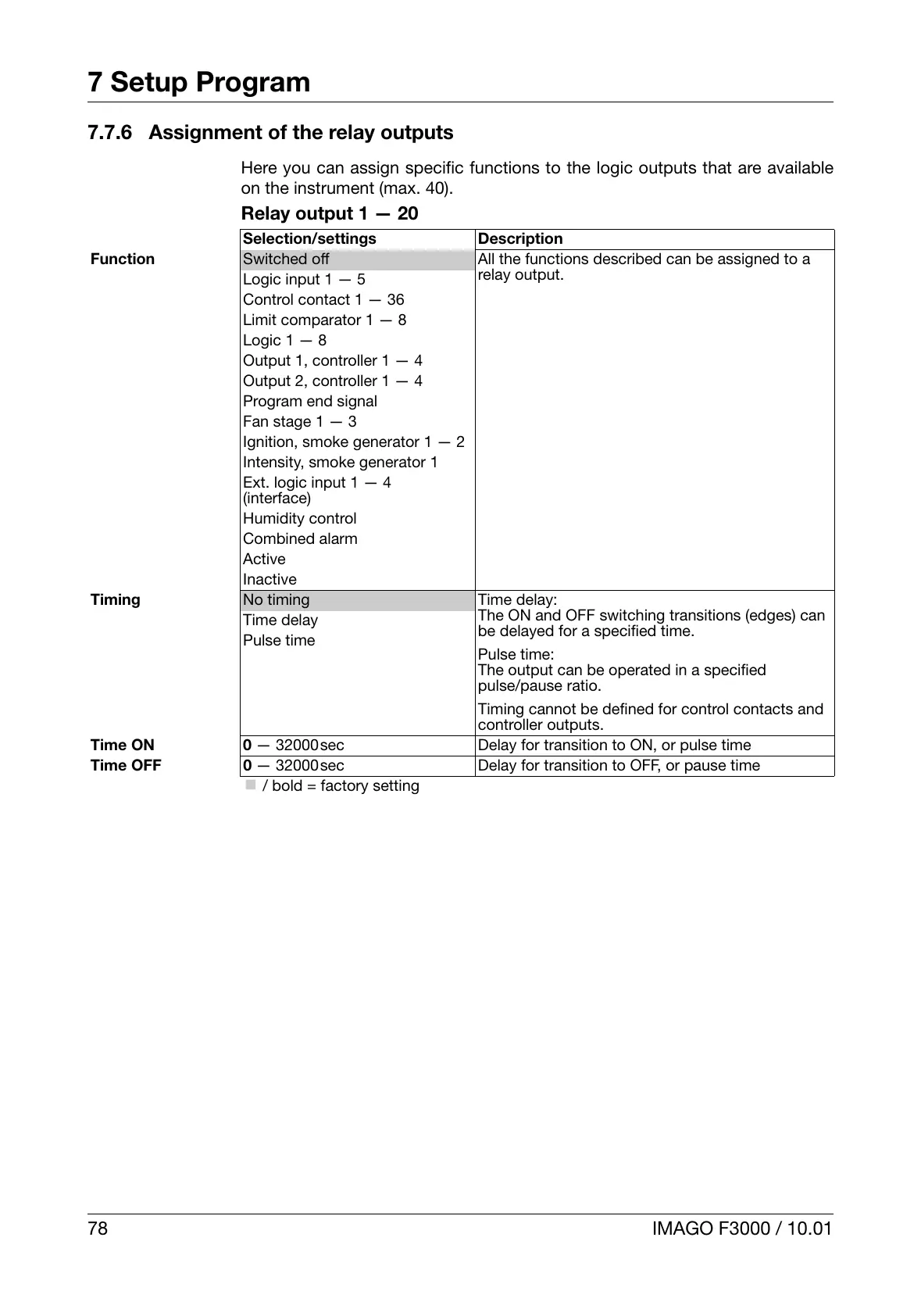

7.7.6 Assignment of the relay outputs
Here you can assign specific functions to the logic outputs that are available
on the instrument (max. 40).
Relay output 1 — 20
Selection/settings Description
Function
Switched off All the functions described can be assigned to a
relay output.
Logic input 1 — 5
Control contact 1 — 36
Limit comparator 1 — 8
Logic 1 — 8
Output 1, controller 1 — 4
Output 2, controller 1 — 4
Program end signal
Fan stage 1 — 3
Ignition, smoke generator 1 — 2
Intensity, smoke generator 1
Ext. logic input 1 — 4
(interface)
Humidity control
Combined alarm
Active
Inactive
Timing
No timing Time delay:
The ON and OFF switching transitions (edges) can
be delayed for a specified time.
Pulse time:
The output can be operated in a specified
pulse/pause ratio.
Timing cannot be defined for control contacts and
controller outputs.
Time delay
Pulse time
Time ON
0 — 32000sec Delay for transition to ON, or pulse time
Time OFF 0 — 32000sec Delay for transition to OFF, or pause time
k / bold = factory setting
