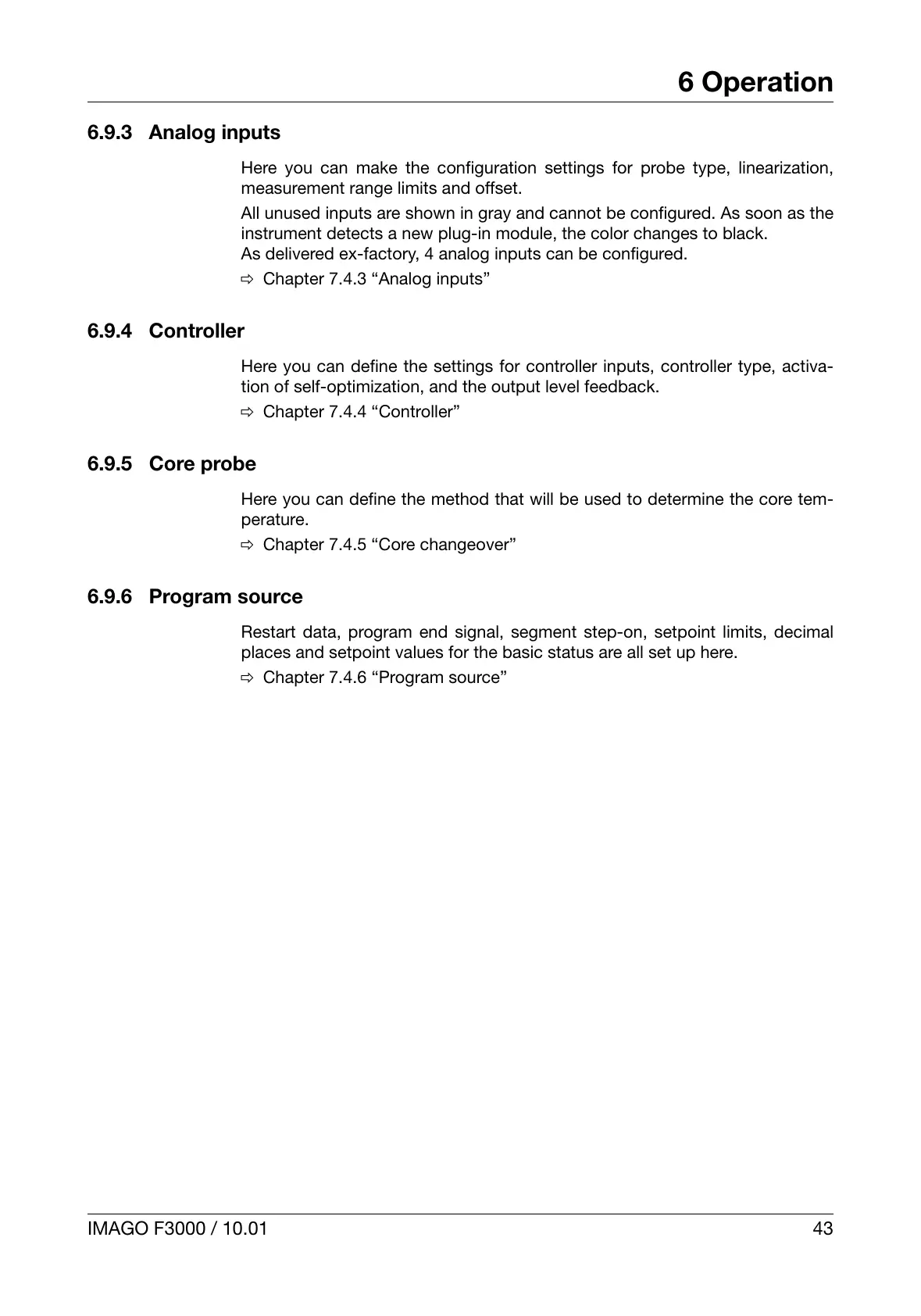

IMAGO F3000 / 10.01 43
6 Operation
6.9.3 Analog inputs
Here you can make the configuration settings for probe type, linearization,
measurement range limits and offset.
All unused inputs are shown in gray and cannot be configured. As soon as the
instrument detects a new plug-in module, the color changes to black.
As delivered ex-factory, 4 analog inputs can be configured.
v Chapter 7.4.3 “Analog inputs”
6.9.4 Controller
Here you can define the settings for controller inputs, controller type, activa-
tion of self-optimization, and the output level feedback.
v Chapter 7.4.4 “Controller”
6.9.5 Core probe
Here you can define the method that will be used to determine the core tem-
perature.
v Chapter 7.4.5 “Core changeover”
6.9.6 Program source
Restart data, program end signal, segment step-on, setpoint limits, decimal
places and setpoint values for the basic status are all set up here.
v Chapter 7.4.6 “Program source”
