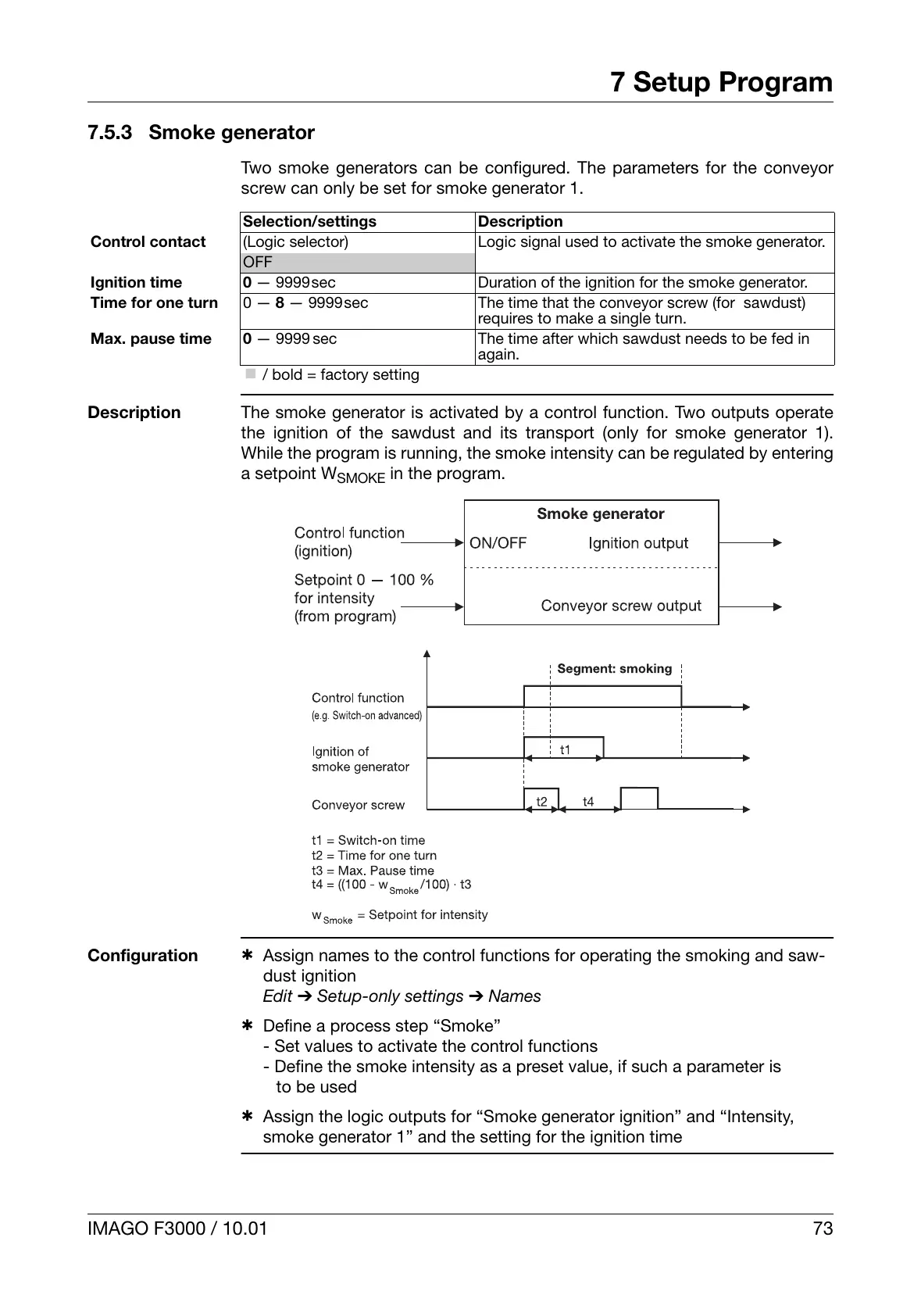

7.5.3 Smoke generator
Two smoke generators can be configured. The parameters for the conveyor
screw can only be set for smoke generator 1.
Description
The smoke generator is activated by a control function. Two outputs operate
the ignition of the sawdust and its transport (only for smoke generator 1).
While the program is running, the smoke intensity can be regulated by entering
a setpoint W
SMOKE
in the program.
Configuration
h Assign names to the control functions for operating the smoking and saw-
dust ignition
Edit ➔ Setup-only settings ➔ Names
h Define a process step “Smoke”
- Set values to activate the control functions
- Define the smoke intensity as a preset value, if such a parameter is
to be used
h Assign the logic outputs for “Smoke generator ignition” and “Intensity,
smoke generator 1” and the setting for the ignition time
Selection/settings Description
Control contact
(Logic selector) Logic signal used to activate the smoke generator.
OFF
Ignition time 0 —9999sec
Duration of the ignition for the smoke generator.
Time for one turn
0—8 — 9999sec The time that the conveyor screw (for sawdust)
requires to make a single turn.
Max. pause time 0 —9999sec
The time after which sawdust needs to be fed in
again.
k / bold = factory setting
