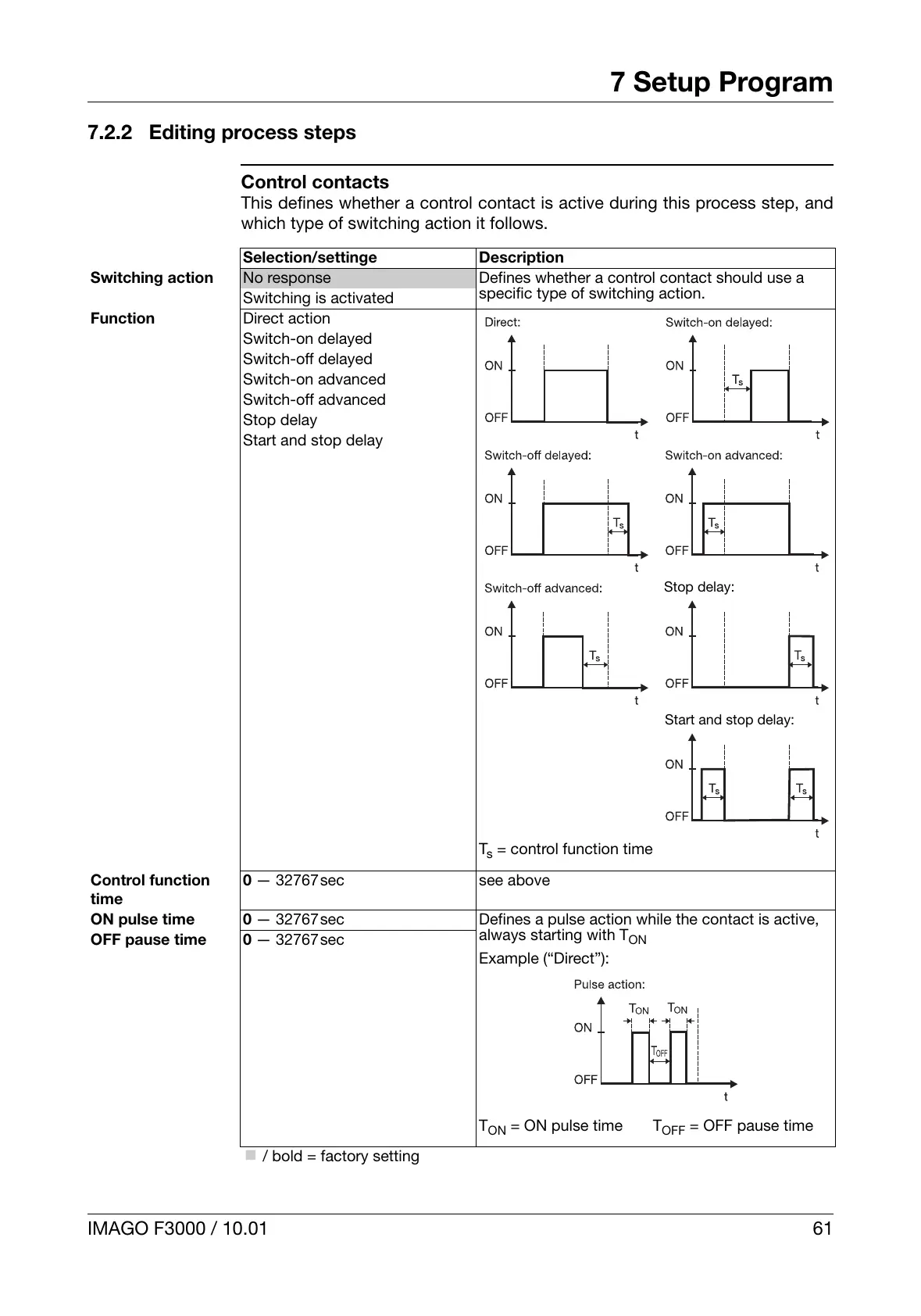

7.2.2 Editing process steps
Control contacts
This defines whether a control contact is active during this process step, and
which type of switching action it follows.
Selection/settinge Description
Switching action
No response Defines whether a control contact should use a
specific type of switching action.
Switching is activated
Function
Direct action
T
s
= control function time
Switch-on delayed
Switch-off delayed
Switch-on advanced
Switch-off advanced
Stop delay
Start and stop delay
Control function
time
0 — 32767sec
see above
ON pulse time 0 — 32767sec
Defines a pulse action while the contact is active,
always starting with T
ON
Example (“Direct”):
T
ON
= ON pulse time T
OFF
= OFF pause time
OFF pause time 0 — 32767sec
k / bold = factory setting
Stop delay:
Start and stop delay:
