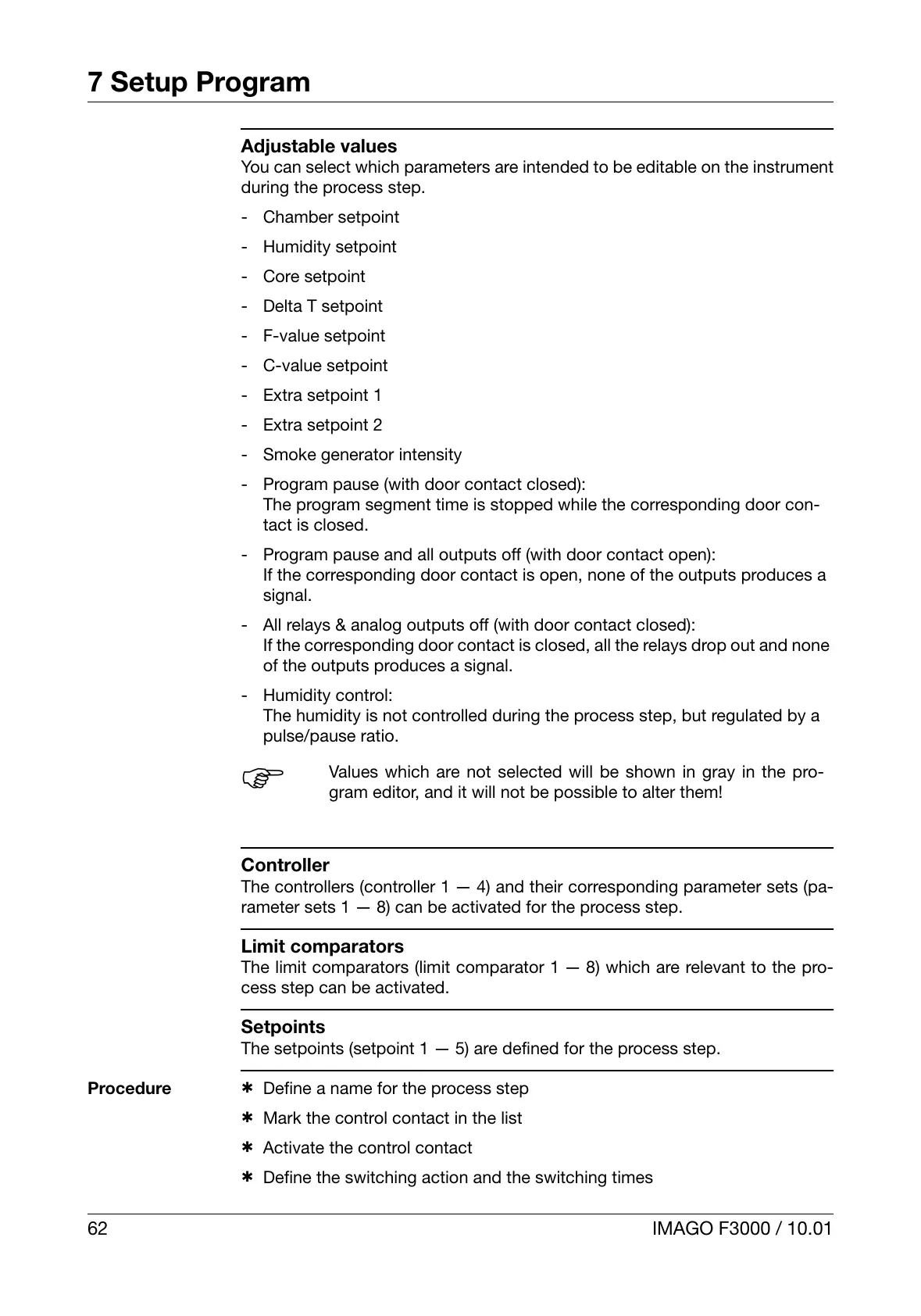

7 Setup Program
62 IMAGO F3000 / 10.01
Adjustable values
You can select which parameters are intended to be editable on the instrument
during the process step.
- Chamber setpoint
-Humidity setpoint
- Core setpoint
- Delta T setpoint
- F-value setpoint
- C-value setpoint
-Extra setpoint 1
-Extra setpoint 2
- Smoke generator intensity
- Program pause (with door contact closed):
The program segment time is stopped while the corresponding door con-
tact is closed.
- Program pause and all outputs off (with door contact open):
If the corresponding door contact is open, none of the outputs produces a
signal.
- All relays & analog outputs off (with door contact closed):
If the corresponding door contact is closed, all the relays drop out and none
of the outputs produces a signal.
- Humidity control:
The humidity is not controlled during the process step, but regulated by a
pulse/pause ratio.
Controller
The controllers (controller 1 — 4) and their corresponding parameter sets (pa-
rameter sets 1 — 8) can be activated for the process step.
Limit comparators
The limit comparators (limit comparator 1 — 8) which are relevant to the pro-
cess step can be activated.
Setpoints
The setpoints (setpoint 1 — 5) are defined for the process step.
Procedure
h Define a name for the process step
h Mark the control contact in the list
h Activate the control contact
h Define the switching action and the switching times
H
Values which are not selected will be shown in gray in the pro-
gram editor, and it will not be possible to alter them!
