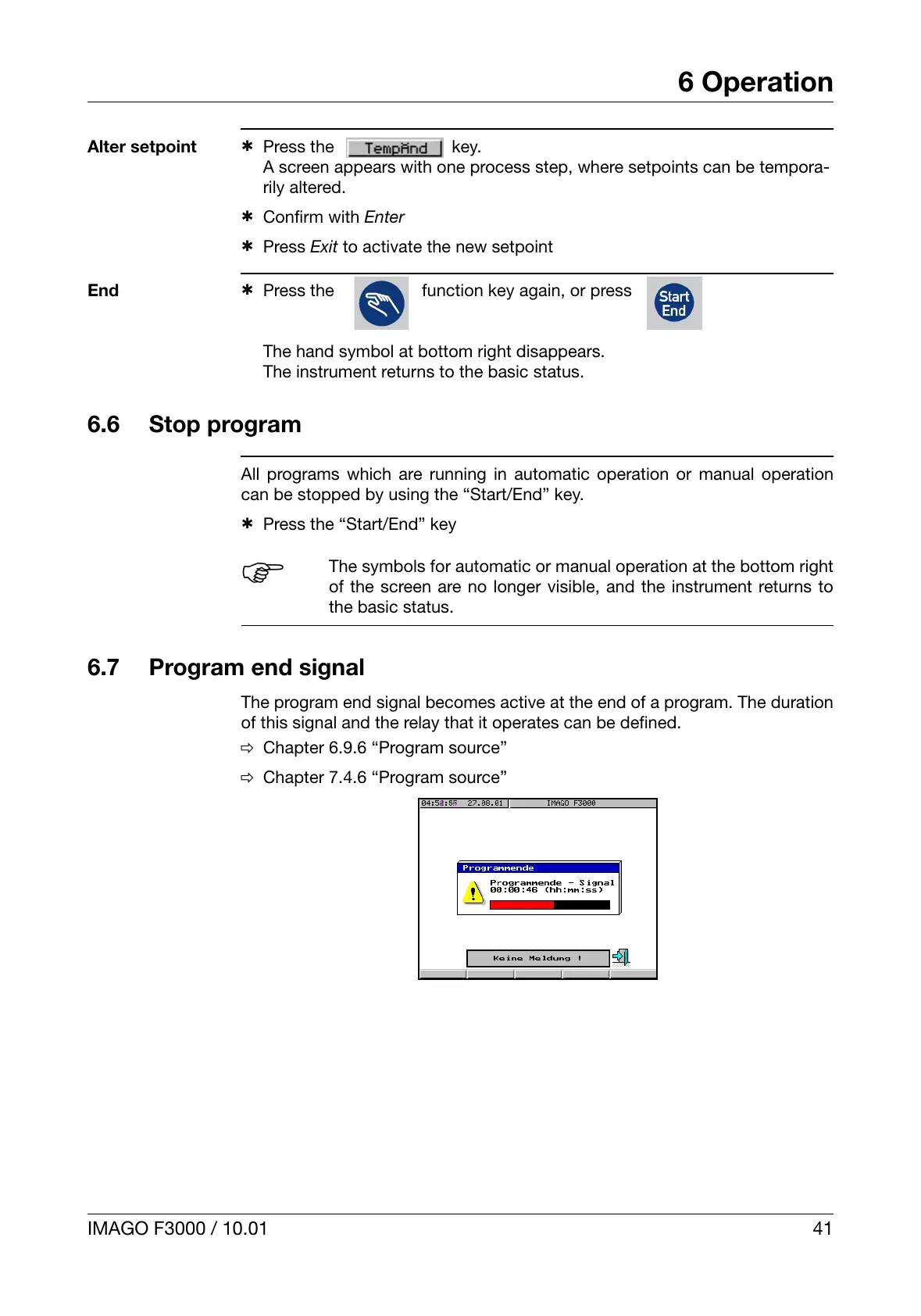

IMAGO F3000 / 10.01 41
6 Operation
Alter setpoint
h Press the
key.
A screen appears with one process step, where setpoints can be tempora-
rily altered.
h Confirm with Enter
h Press Exit to activate the new setpoint
End
h Press the
function key again, or press
The hand symbol at bottom right disappears.
The instrument returns to the basic status.
6.6 Stop program
All programs which are running in automatic operation or manual operation
can be stopped by using the “Start/End” key.
h Press the “Start/End” key
6.7 Program end signal
The program end signal becomes active at the end of a program. The duration
of this signal and the relay that it operates can be defined.
v Chapter 6.9.6 “Program source”
v Chapter 7.4.6 “Program source”
H
The symbols for automatic or manual operation at the bottom right
of the screen are no longer visible, and the instrument returns to
the basic status.
