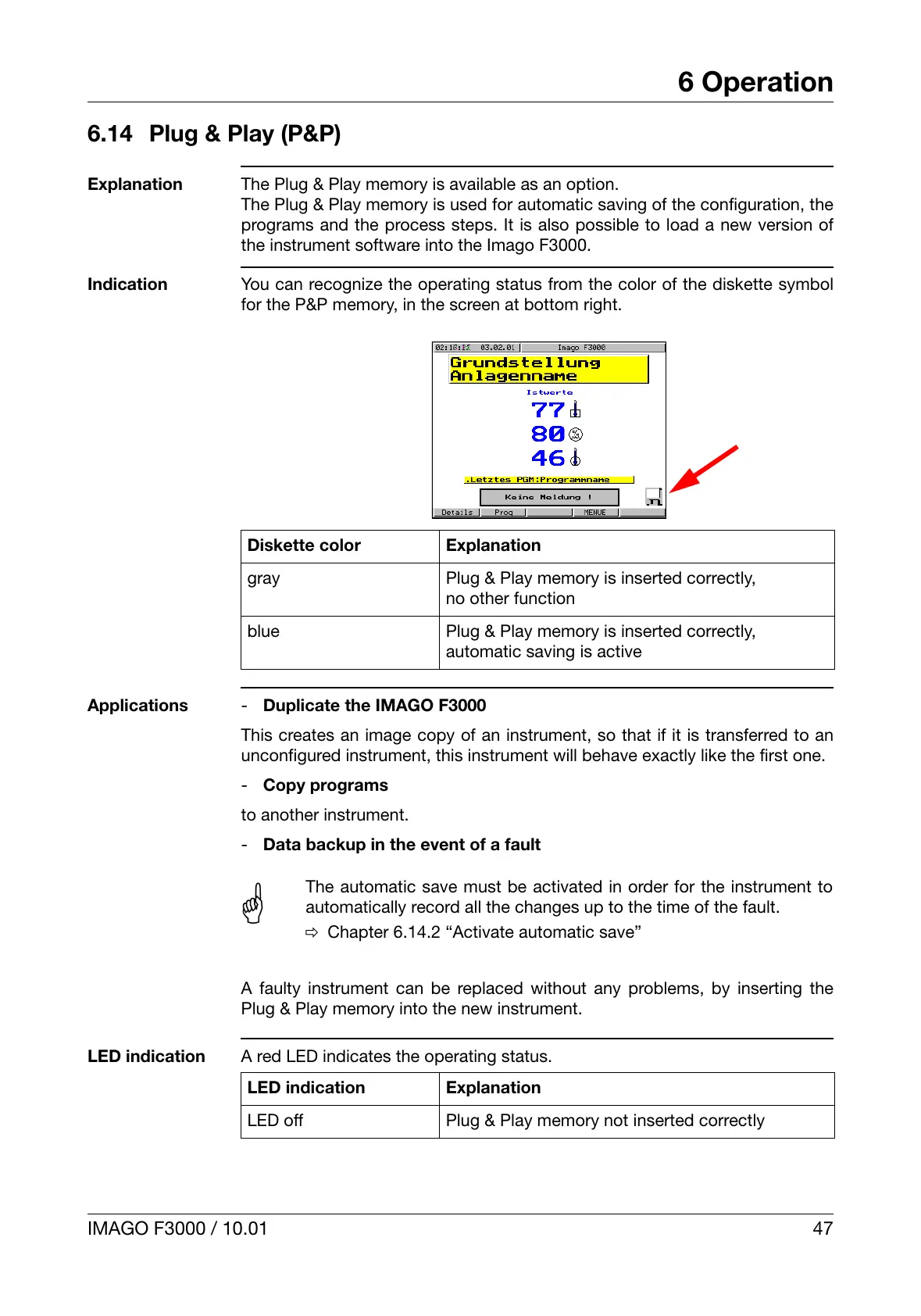

IMAGO F3000 / 10.01 47
6 Operation
6.14 Plug & Play (P&P)
Explanation
The Plug & Play memory is available as an option.
The Plug & Play memory is used for automatic saving of the configuration, the
programs and the process steps. It is also possible to load a new version of
the instrument software into the Imago F3000.
Indication
You can recognize the operating status from the color of the diskette symbol
for the P&P memory, in the screen at bottom right.
Applications
- Duplicate the IMAGO F3000
This creates an image copy of an instrument, so that if it is transferred to an
unconfigured instrument, this instrument will behave exactly like the first one.
- Copy programs
to another instrument.
- Data backup in the event of a fault
A faulty instrument can be replaced without any problems, by inserting the
Plug & Play memory into the new instrument.
LED indication
A red LED indicates the operating status.
Diskette color Explanation
gray Plug & Play memory is inserted correctly,
no other function
blue Plug & Play memory is inserted correctly,
automatic saving is active
A
The automatic save must be activated in order for the instrument to
automatically record all the changes up to the time of the fault.
v Chapter 6.14.2 “Activate automatic save”
LED indication Explanation
LED off Plug & Play memory not inserted correctly
