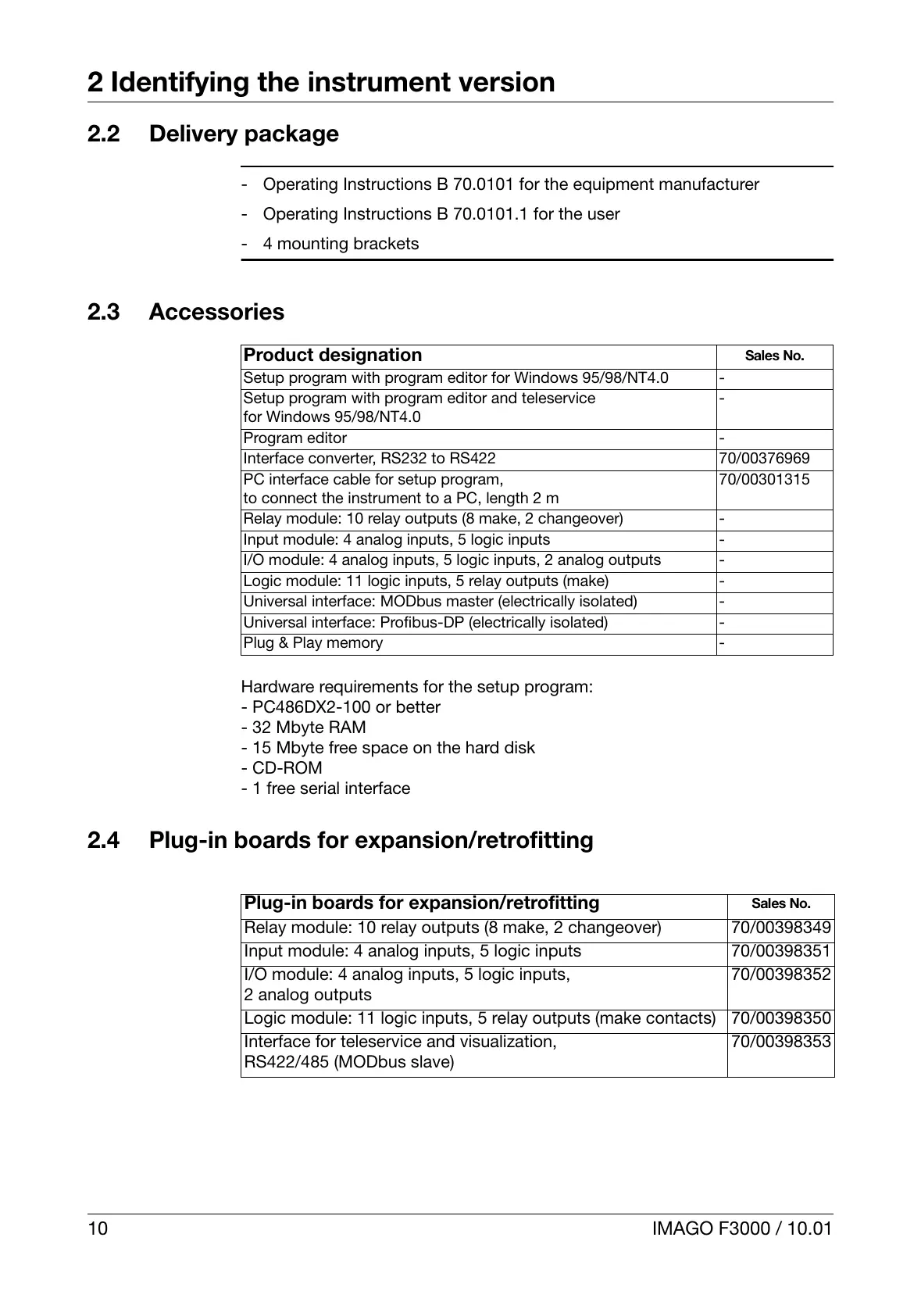

2 Identifying the instrument version
10 IMAGO F3000 / 10.01
2.2 Delivery package
- Operating Instructions B 70.0101 for the equipment manufacturer
- Operating Instructions B 70.0101.1 for the user
- 4 mounting brackets
2.3 Accessories
Hardware requirements for the setup program:
- PC486DX2-100 or better
- 32 Mbyte RAM
- 15 Mbyte free space on the hard disk
- CD-ROM
- 1 free serial interface
2.4 Plug-in boards for expansion/retrofitting
Product designation
Sales No.
Setup program with program editor for Windows 95/98/NT4.0 -
Setup program with program editor and teleservice
for Windows 95/98/NT4.0
-
Program editor -
Interface converter, RS232 to RS422 70/00376969
PC interface cable for setup program,
to connect the instrument to a PC, length 2 m
70/00301315
Relay module: 10 relay outputs (8 make, 2 changeover) -
Input module: 4 analog inputs, 5 logic inputs -
I/O module: 4 analog inputs, 5 logic inputs, 2 analog outputs -
Logic module: 11 logic inputs, 5 relay outputs (make) -
Universal interface: MODbus master (electrically isolated) -
Universal interface: Profibus-DP (electrically isolated) -
Plug & Play memory -
Plug-in boards for expansion/retrofitting
Sales No.
Relay module: 10 relay outputs (8 make, 2 changeover) 70/00398349
Input module: 4 analog inputs, 5 logic inputs 70/00398351
I/O module: 4 analog inputs, 5 logic inputs,
2 analog outputs
70/00398352
Logic module: 11 logic inputs, 5 relay outputs (make contacts) 70/00398350
Interface for teleservice and visualization,
RS422/485 (MODbus slave)
70/00398353
