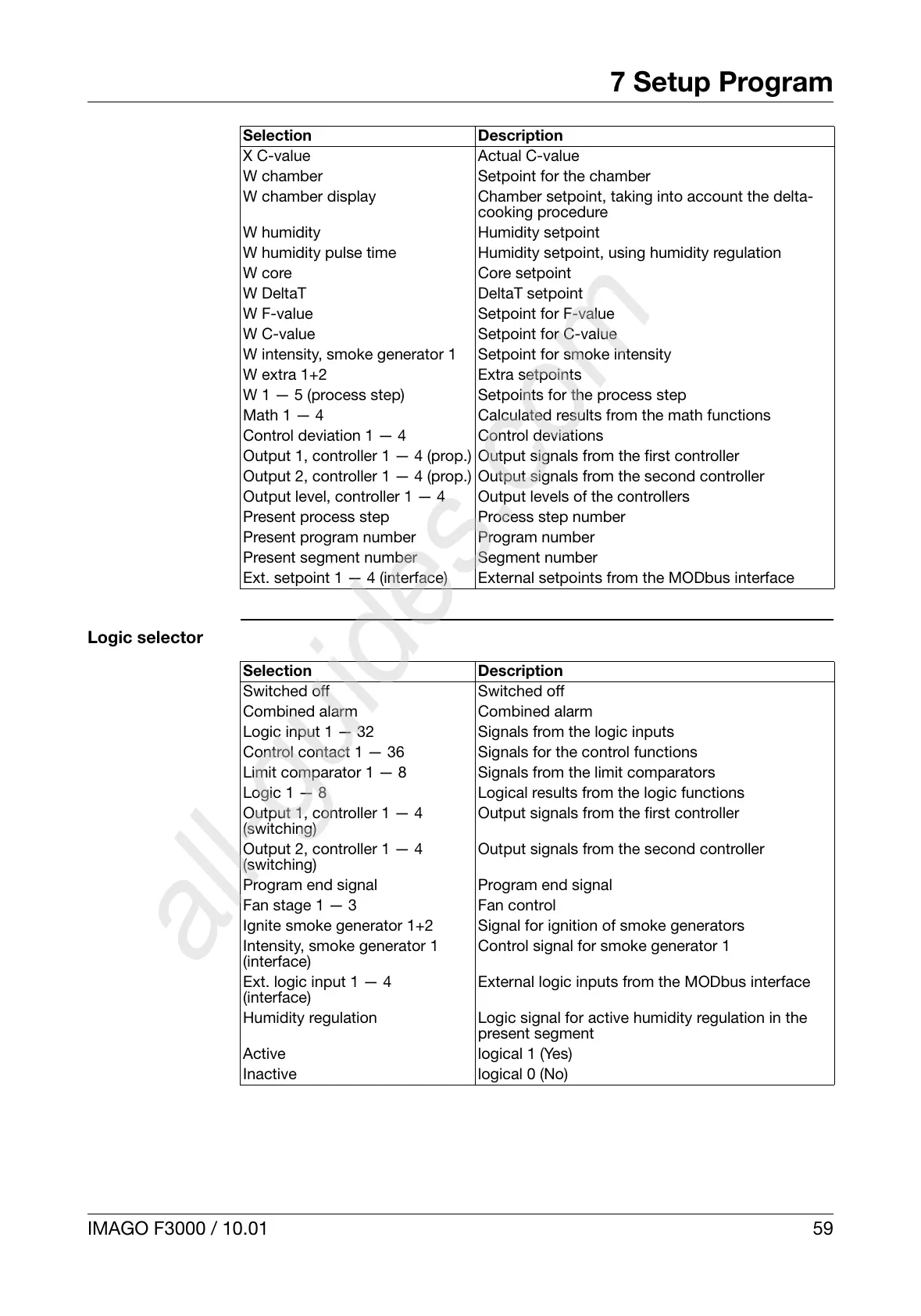

IMAGO F3000 / 10.01 59
7 Setup Program
Logic selector
X C-value Actual C-value
W chamber Setpoint for the chamber
W chamber display Chamber setpoint, taking into account the delta-
cooking procedure
W humidity Humidity setpoint
W humidity pulse time Humidity setpoint, using humidity regulation
W core Core setpoint
W DeltaT DeltaT setpoint
W F-value Setpoint for F-value
W C-value Setpoint for C-value
W intensity, smoke generator 1 Setpoint for smoke intensity
W extra 1+2 Extra setpoints
W 1 — 5 (process step) Setpoints for the process step
Math 1 — 4 Calculated results from the math functions
Control deviation 1 — 4 Control deviations
Output 1, controller 1 — 4 (prop.) Output signals from the first controller
Output 2, controller 1 — 4 (prop.) Output signals from the second controller
Output level, controller 1 — 4 Output levels of the controllers
Present process step Process step number
Present program number Program number
Present segment number Segment number
Ext. setpoint 1 — 4 (interface) External setpoints from the MODbus interface
Selection Description
Selection Description
Switched off Switched off
Combined alarm Combined alarm
Logic input 1 — 32 Signals from the logic inputs
Control contact 1 — 36 Signals for the control functions
Limit comparator 1 — 8 Signals from the limit comparators
Logic 1 — 8 Logical results from the logic functions
Output 1, controller 1 — 4
(switching)
Output signals from the first controller
Output 2, controller 1 — 4
(switching)
Output signals from the second controller
Program end signal Program end signal
Fan stage 1 — 3 Fan control
Ignite smoke generator 1+2 Signal for ignition of smoke generators
Intensity, smoke generator 1
(interface)
Control signal for smoke generator 1
Ext. logic input 1 — 4
(interface)
External logic inputs from the MODbus interface
Humidity regulation Logic signal for active humidity regulation in the
present segment
Active logical 1 (Yes)
Inactive logical 0 (No)
