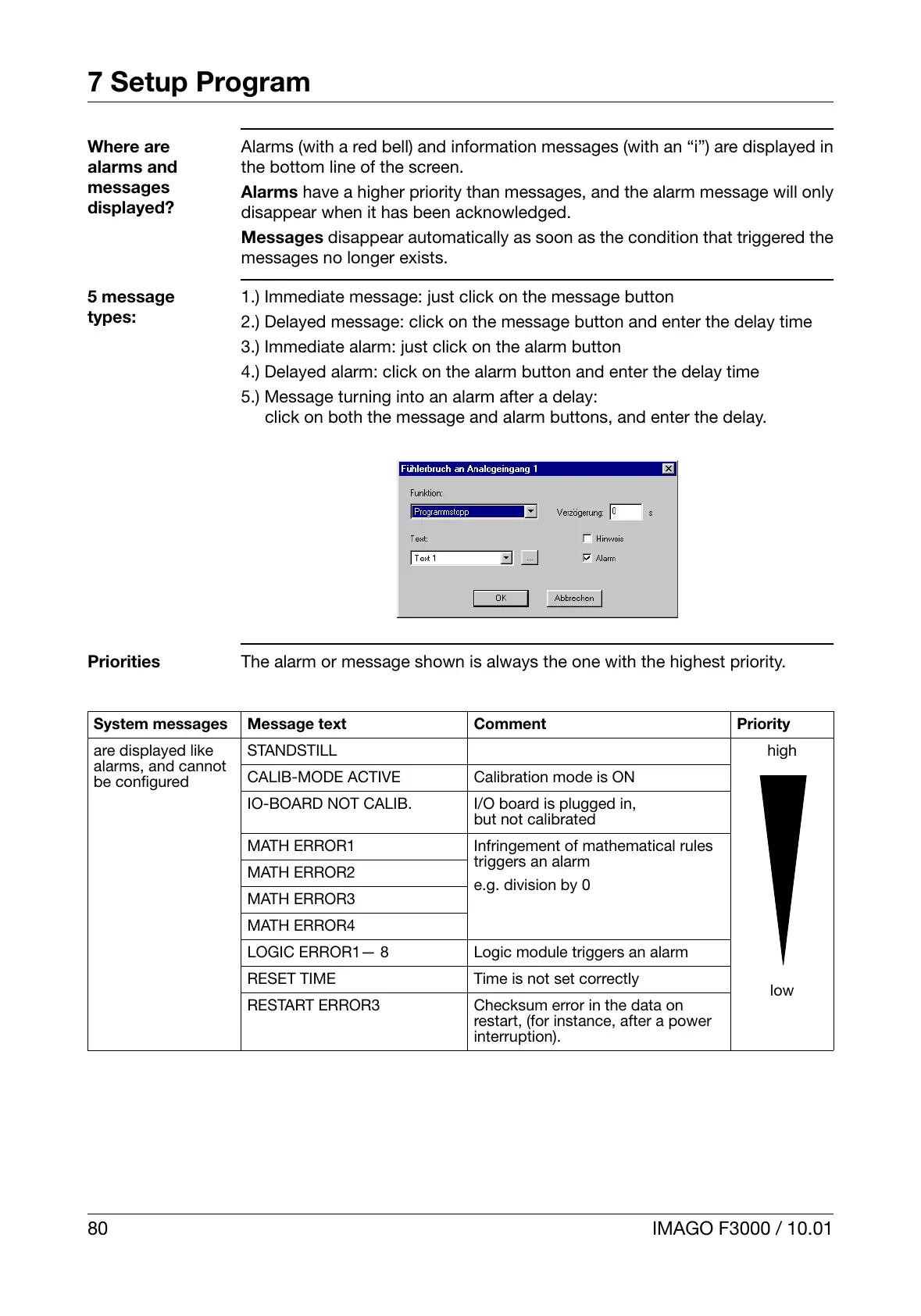

7 Setup Program
80 IMAGO F3000 / 10.01
Where are
alarms and
messages
displayed?
Alarms (with a red bell) and information messages (with an “i”) are displayed in
the bottom line of the screen.
Alarms have a higher priority than messages, and the alarm message will only
disappear when it has been acknowledged.
Messages disappear automatically as soon as the condition that triggered the
messages no longer exists.
5 message
types:
1.) Immediate message: just click on the message button
2.) Delayed message: click on the message button and enter the delay time
3.) Immediate alarm: just click on the alarm button
4.) Delayed alarm: click on the alarm button and enter the delay time
5.) Message turning into an alarm after a delay:
click on both the message and alarm buttons, and enter the delay.
Priorities
The alarm or message shown is always the one with the highest priority.
System messages Message text Comment Priority
are displayed like
alarms, and cannot
be configured
STANDSTILL high
low
CALIB-MODE ACTIVE Calibration mode is ON
IO-BOARD NOT CALIB. I/O board is plugged in,
but not calibrated
MATH ERROR1 Infringement of mathematical rules
triggers an alarm
e.g. division by 0
MATH ERROR2
MATH ERROR3
MATH ERROR4
LOGIC ERROR1— 8 Logic module triggers an alarm
RESET TIME Time is not set correctly
RESTART ERROR3 Checksum error in the data on
restart, (for instance, after a power
interruption).
