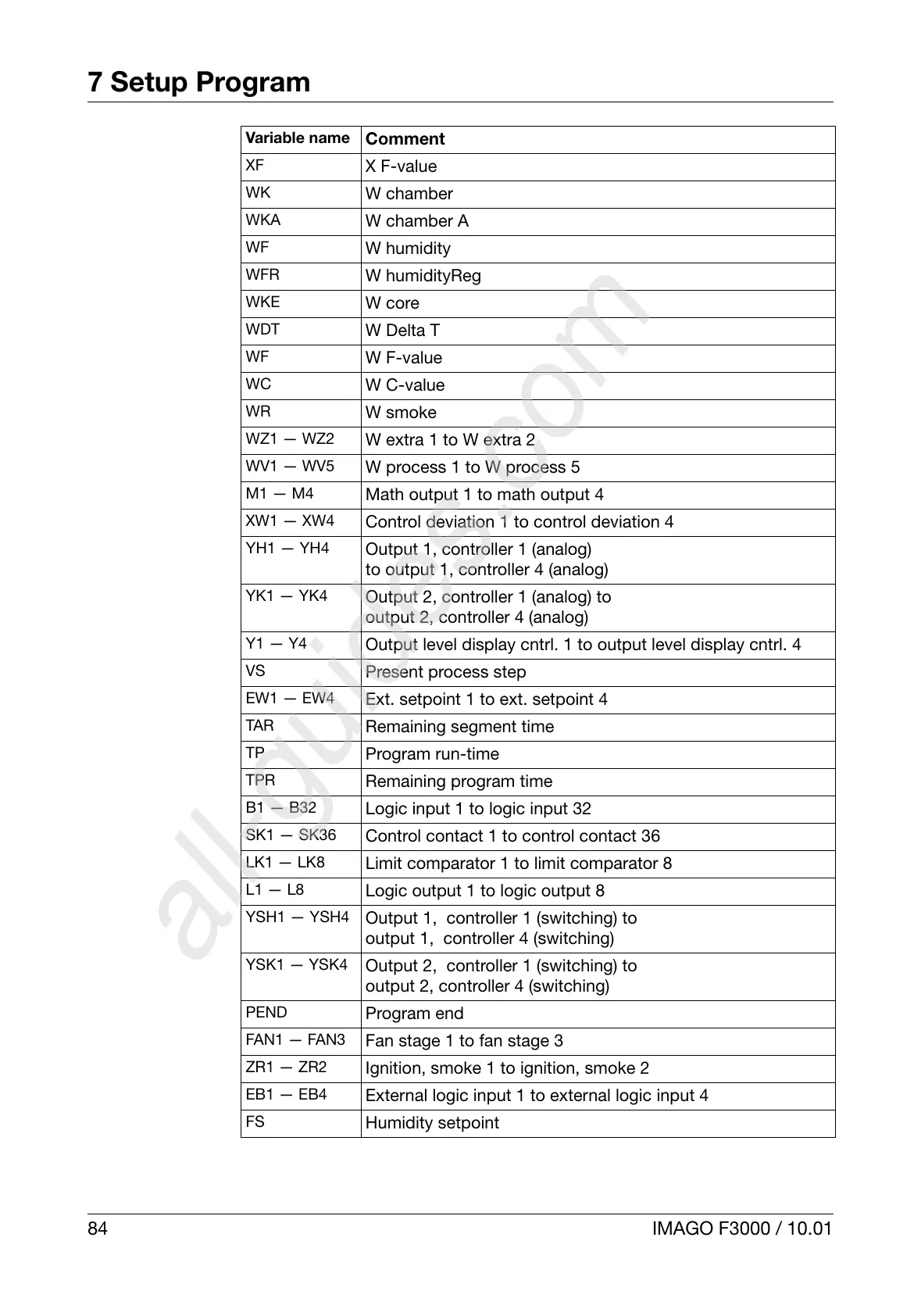

7 Setup Program
84 IMAGO F3000 / 10.01
XF
X F-value
WK
W chamber
WKA
W chamber A
WF
W humidity
WFR
W humidityReg
WKE
W core
WDT
W Delta T
WF
W F-value
WC
W C-value
WR
W smoke
WZ1 — WZ2
W extra 1 to W extra 2
WV1 — WV5
W process 1 to W process 5
M1 — M4
Math output 1 to math output 4
XW1 — XW4
Control deviation 1 to control deviation 4
YH1 — YH4
Output 1, controller 1 (analog)
to output 1, controller 4 (analog)
YK1 — YK4
Output 2, controller 1 (analog) to
output 2, controller 4 (analog)
Y1 — Y4
Output level display cntrl. 1 to output level display cntrl. 4
VS
Present process step
EW1 — EW4
Ext. setpoint 1 to ext. setpoint 4
TAR
Remaining segment time
TP
Program run-time
TPR
Remaining program time
B1 — B32
Logic input 1 to logic input 32
SK1 — SK36
Control contact 1 to control contact 36
LK1 — LK8
Limit comparator 1 to limit comparator 8
L1 — L8
Logic output 1 to logic output 8
YSH1 — YSH4
Output 1, controller 1 (switching) to
output 1, controller 4 (switching)
YSK1 — YSK4
Output 2, controller 1 (switching) to
output 2, controller 4 (switching)
PEND
Program end
FAN1 — FAN3
Fan stage 1 to fan stage 3
ZR1 — ZR2
Ignition, smoke 1 to ignition, smoke 2
EB1 — EB4
External logic input 1 to external logic input 4
FS
Humidity setpoint
Variable name
Comment
