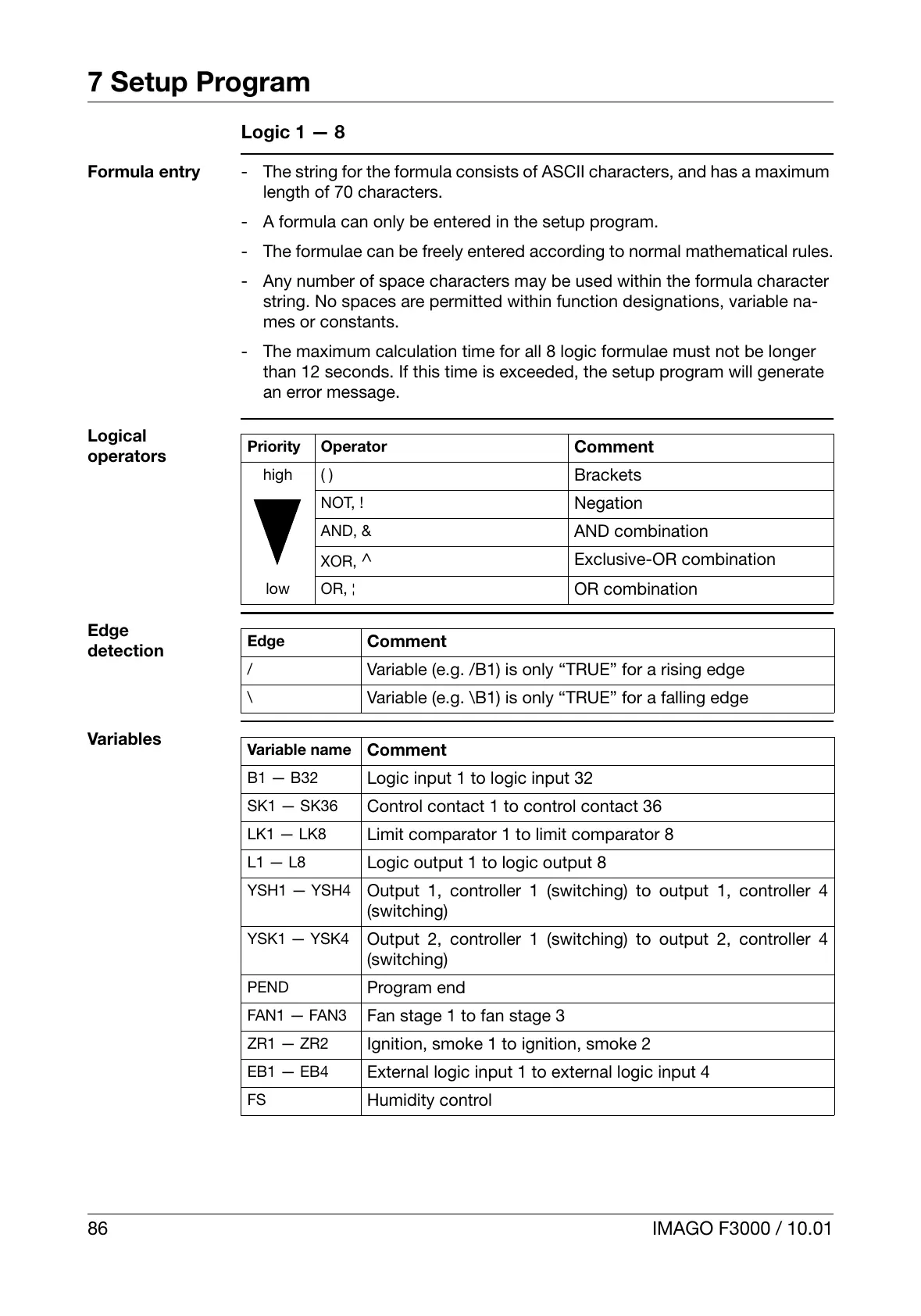

7 Setup Program
86 IMAGO F3000 / 10.01
Logic 1 — 8
Formula entry
- The string for the formula consists of ASCII characters, and has a maximum
length of 70 characters.
- A formula can only be entered in the setup program.
- The formulae can be freely entered according to normal mathematical rules.
- Any number of space characters may be used within the formula character
string. No spaces are permitted within function designations, variable na-
mes or constants.
- The maximum calculation time for all 8 logic formulae must not be longer
than 12 seconds. If this time is exceeded, the setup program will generate
an error message.
Logical
operators
Edge
detection
Variables
Priority Operator
Comment
high ( )
Brackets
NOT, !
Negation
AND, &
AND combination
XOR,
^
Exclusive-OR combination
low OR, ¦
OR combination
Edge
Comment
/
Variable (e.g. /B1) is only “TRUE” for a rising edge
\
Variable (e.g. \B1) is only “TRUE” for a falling edge
Variable name
Comment
B1 — B32
Logic input 1 to logic input 32
SK1 — SK36
Control contact 1 to control contact 36
LK1 — LK8
Limit comparator 1 to limit comparator 8
L1 — L8
Logic output 1 to logic output 8
YSH1 — YSH4
Output 1, controller 1 (switching) to output 1, controller 4
(switching)
YSK1 — YSK4
Output 2, controller 1 (switching) to output 2, controller 4
(switching)
PEND
Program end
FAN1 — FAN3
Fan stage 1 to fan stage 3
ZR1 — ZR2
Ignition, smoke 1 to ignition, smoke 2
EB1 — EB4
External logic input 1 to external logic input 4
FS
Humidity control
