"Rotate" referencing

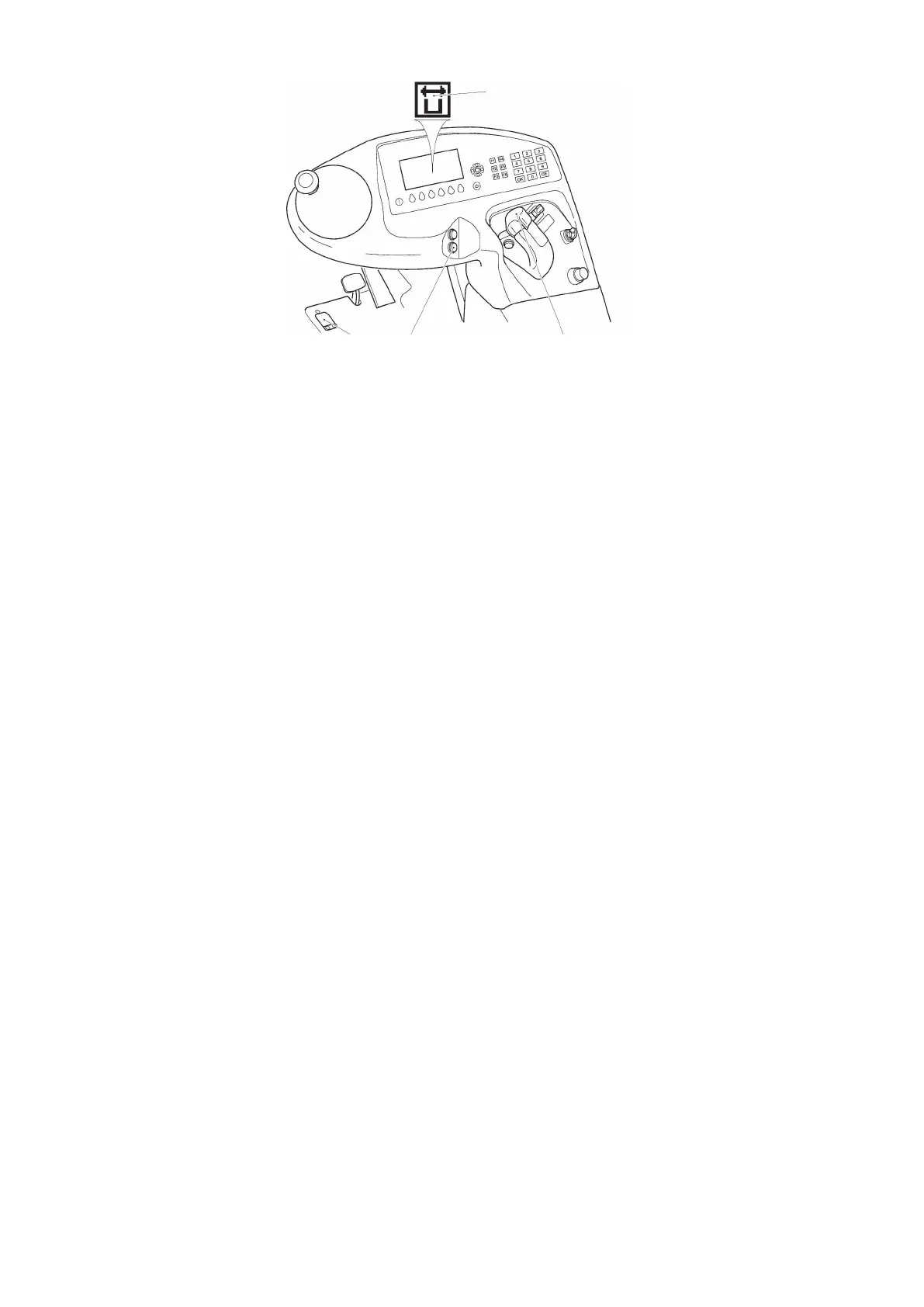

Procedure
• Do not press the deadman button (20).
• Press and hold down on the "Fork carriage rotate" button (119).
• Carry out a fork carriage 180° rotation:
• Turn the "Hydraulic functions" control lever (113) clockwise =
Fork carriage right rotation.
• Turn the "Hydraulic functions" control lever (113) anti-clockwise =
Fork carriage left rotation.
• Rotate fork carriage back to home position, see page 192.
"Rotate" referencing is successful if the "Rotate reference run" symbol (163) goes
out after referencing.
If the "Rotate reference run" symbol (163) does not go out after referencing, contact
the manufacturer’s service department and take the truck out of service.
