Load handler post-referencing (sideshift / fork carriage)
Z
The load handler needs to be post-referenced in case the position of the load
handler (attachment position, fork carriage rotation) has changed while the truck was
switched off.

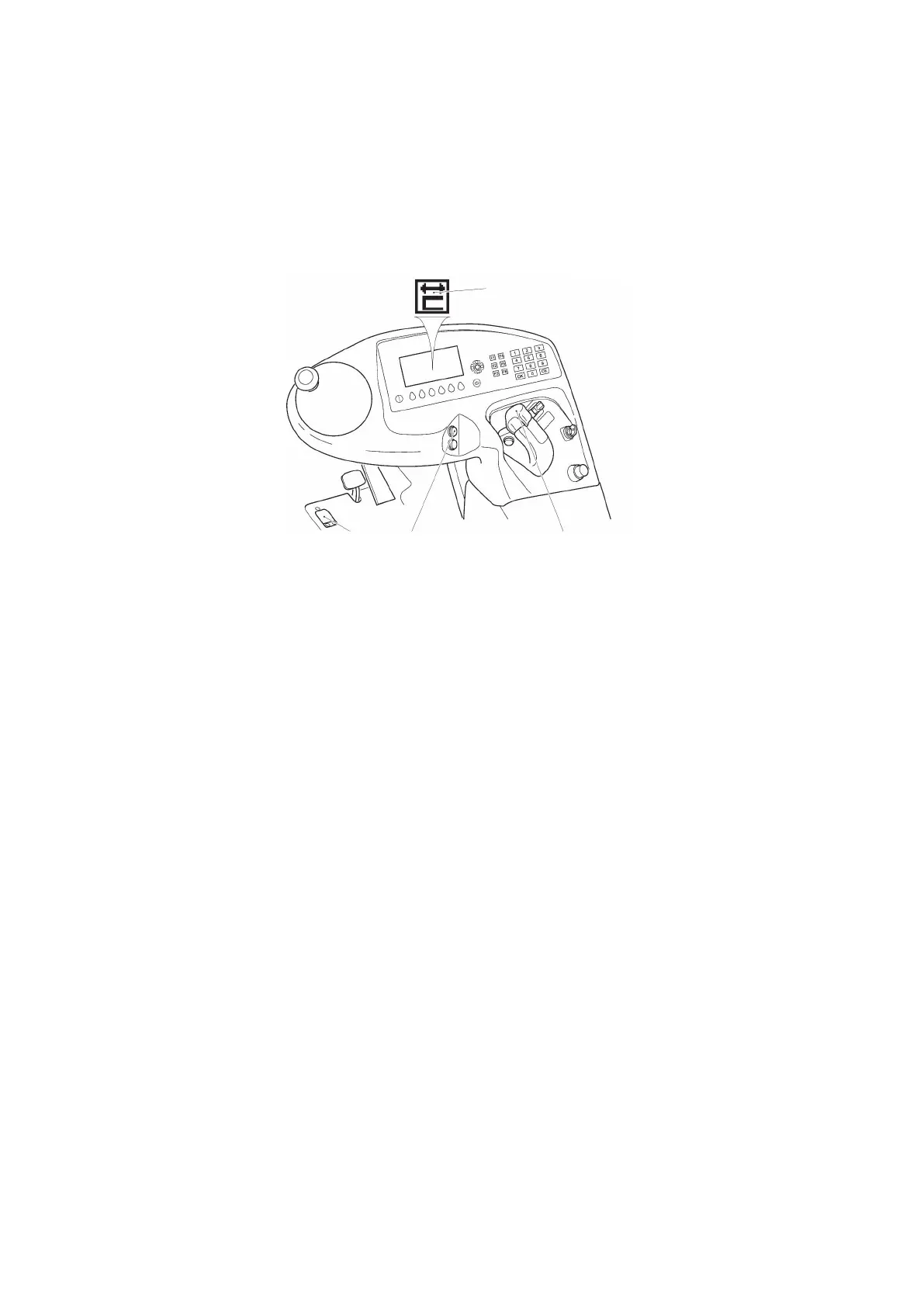

When the truck is switched on again the "traverse reference run" (162) and "rotate
reference run" (163) symbols are shown in the driver's display. Attachment traverse
and fork carriage rotate must be referenced.
"Traverse" referencing
Procedure
• Do not press the deadman button (20).
• Press and hold down on the "Attachment traverse" button (120).
• Traverse the attachment through the centre of the swivel traverse frame:
• Turn the "Hydraulic functions" control lever (113) clockwise =
Attachment right traverse.
• Turn the "Hydraulic functions" control lever (113) anti-clockwise =
Attachment left traverse.
• Traverse attachment back to home position, see page 192.
"Traverse" referencing is successful if the "Traverse reference run" symbol (162)
goes out after referencing.
If the "Traverse reference run" symbol (162) does not go out after referencing,
contact the manufacturer’s service department and take the truck out of service.
149
04.19 en-GB
