8.3.1
Single telescopic forks (o)
Extending and retracting single
telescopic forks
Requirements
– Prepare the truck for operation, see
page 138 or see page 139.
Procedure
• Do not press the dead man's switch (20).
• Traverse the attachment to the right-
hand or left-hand end position of the
swivel traverse frame, see page 177.

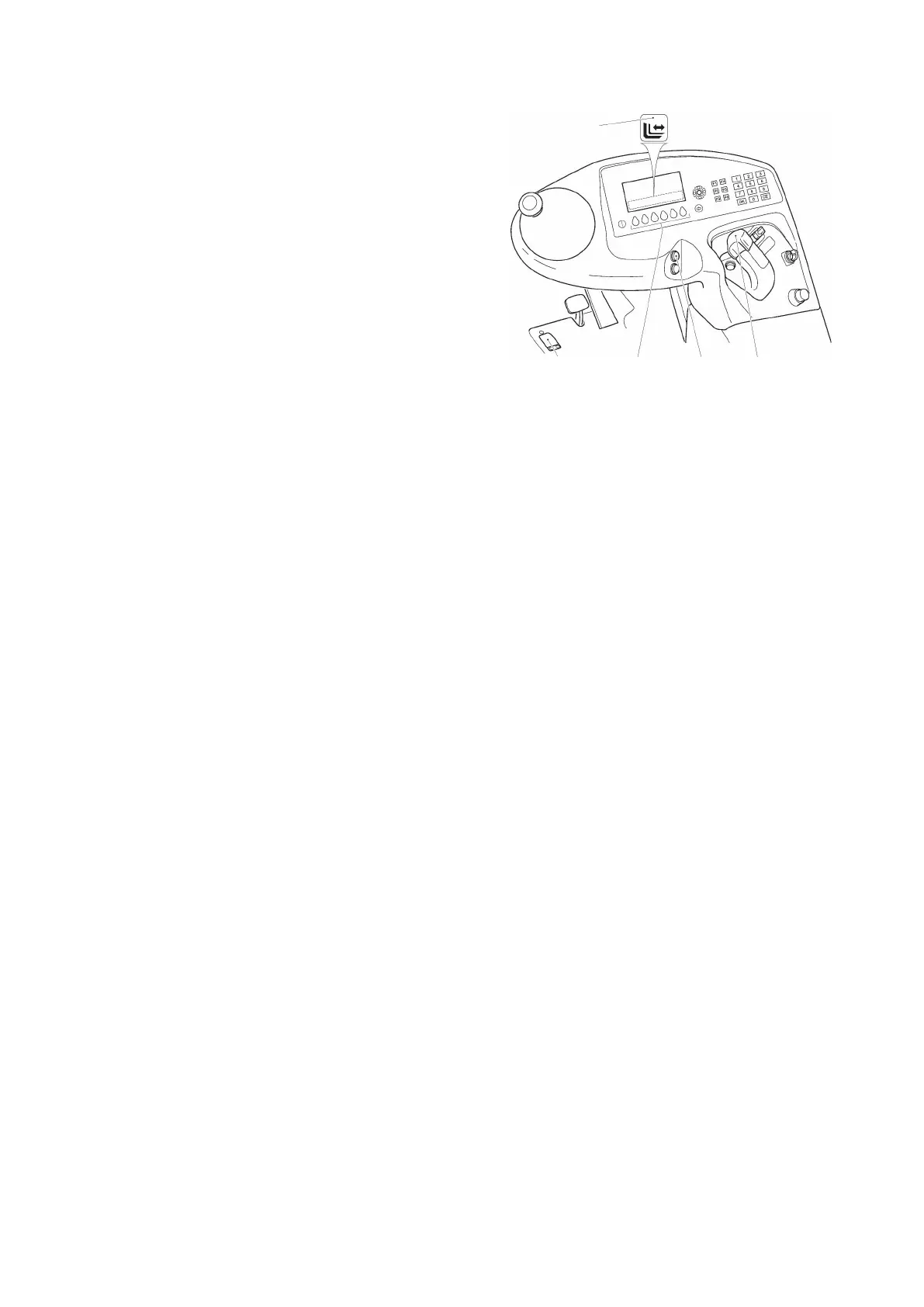

• Press and hold down the key (104)
under the "single telescopic forks" symbol (197).
• Extend the telescopic forks:
• To extend to the left:
Turn the "hydraulic functions" control lever (113) anticlockwise.
• To extend to the right:
Turn the "hydraulic functions" control lever (113) clockwise.
• To retract the telescopic forks:
• To retract to the right:
Turn the "hydraulic functions" control lever (113) clockwise.
• To retract to the left:
Turn the "hydraulic functions" control lever (113) anticlockwise.
Z
The extending and retracting speed of the telescoping forks is proportional to the
movement of the "hydraulic functions" control lever (113).
• Traverse attachment to the right or left to the home position, see page 177.
Z
If the attachment is not in the home position, you can only travel, lift or lower at a
reduced speed, see page 192.
