Jungheinrich EFX 413 User Manual

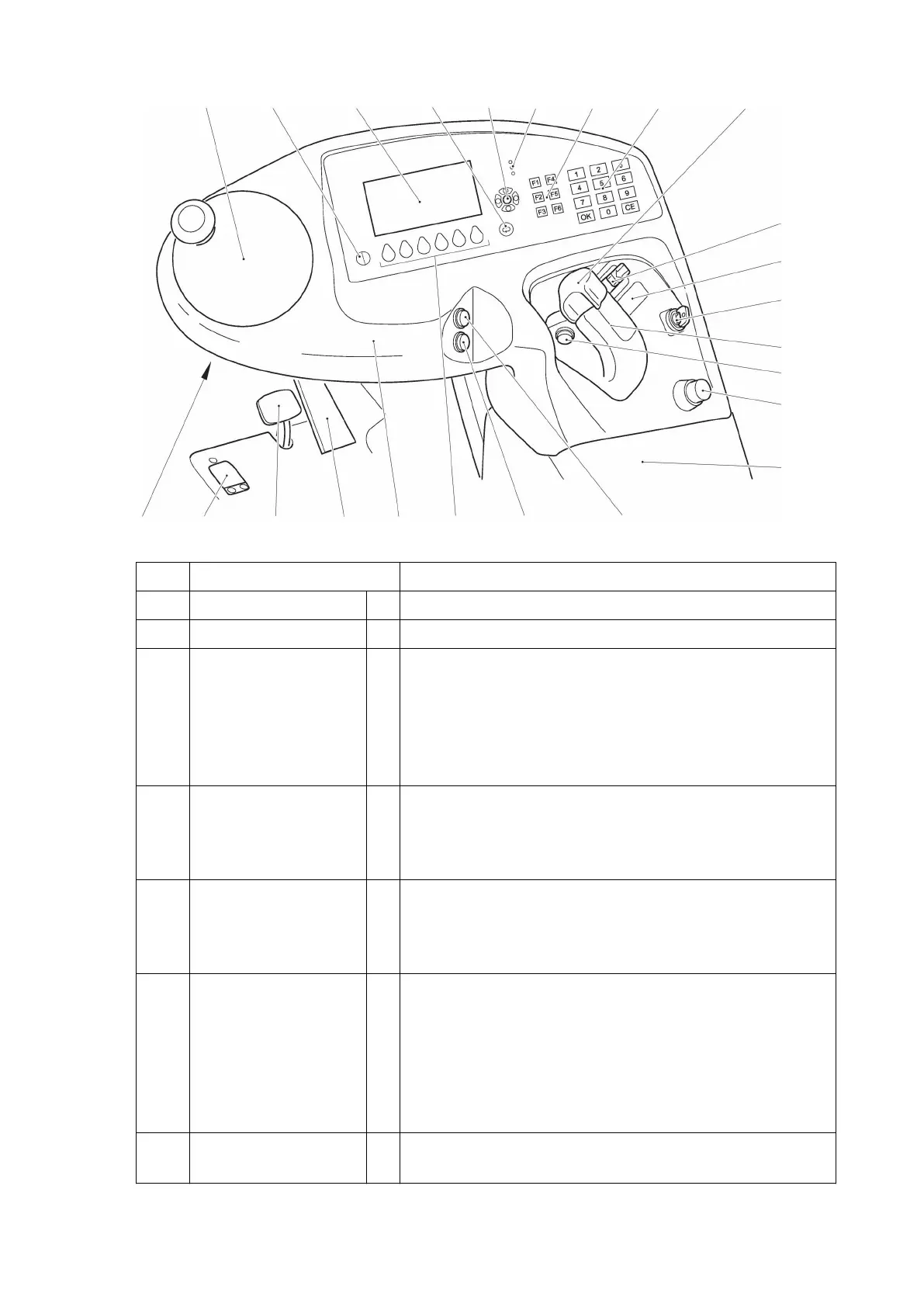

114
106
5
104
112
107
108
109
116
115
113
9
8
118
20
22
21
105
120
119
117
111
110
23
Item Control / display Function
21 Brake pedal
t
Provides infinitely variable braking control.
22 Accelerator pedal
t
Infinite travel speed control.
23 ISM access module
o
In addition to the key switch.
Releases the truck response with card or
transponder.
– Time out monitoring
– Records the truck's operators (shifts)
– Operational data acquisition
104 "Functions" button
t
The functions shown in the driver's display (shown
as symbols) are activated or confirmed with the
button underneath the symbol. The symbol has a
dark background.
105
Travel direction
switch
t
Selects the travel direction of the truck. Press travel
direction switch:
– to the right = Travel in load direction.
– to the left = Travel in drive direction.
106
“Switch automatic
guidance on/off”
button
t
Activates wire guidance in the narrow aisle.
Rail guidance:
– Sets the drive wheel to the straight ahead
position.
Wire guidance:
– Activates wire acquisition (and frequency
selection for multi-frequencies).
107 Driver's display
t
Operating information and warning message
display.
94
04.19 en-GB
