Figure 33 on page 103 shows cabling for a QFX5110 VCF with two QFX5110-32Q spine
devices connected to four QFX5110-48S as leaf devices, all using all QSFP28 ports as
VCPs.Figure 34 on page 104 shows the cabling for a QFX5110 VCF using QFX5110-32Q as
spines and QFX5100-24Q leaf devices.

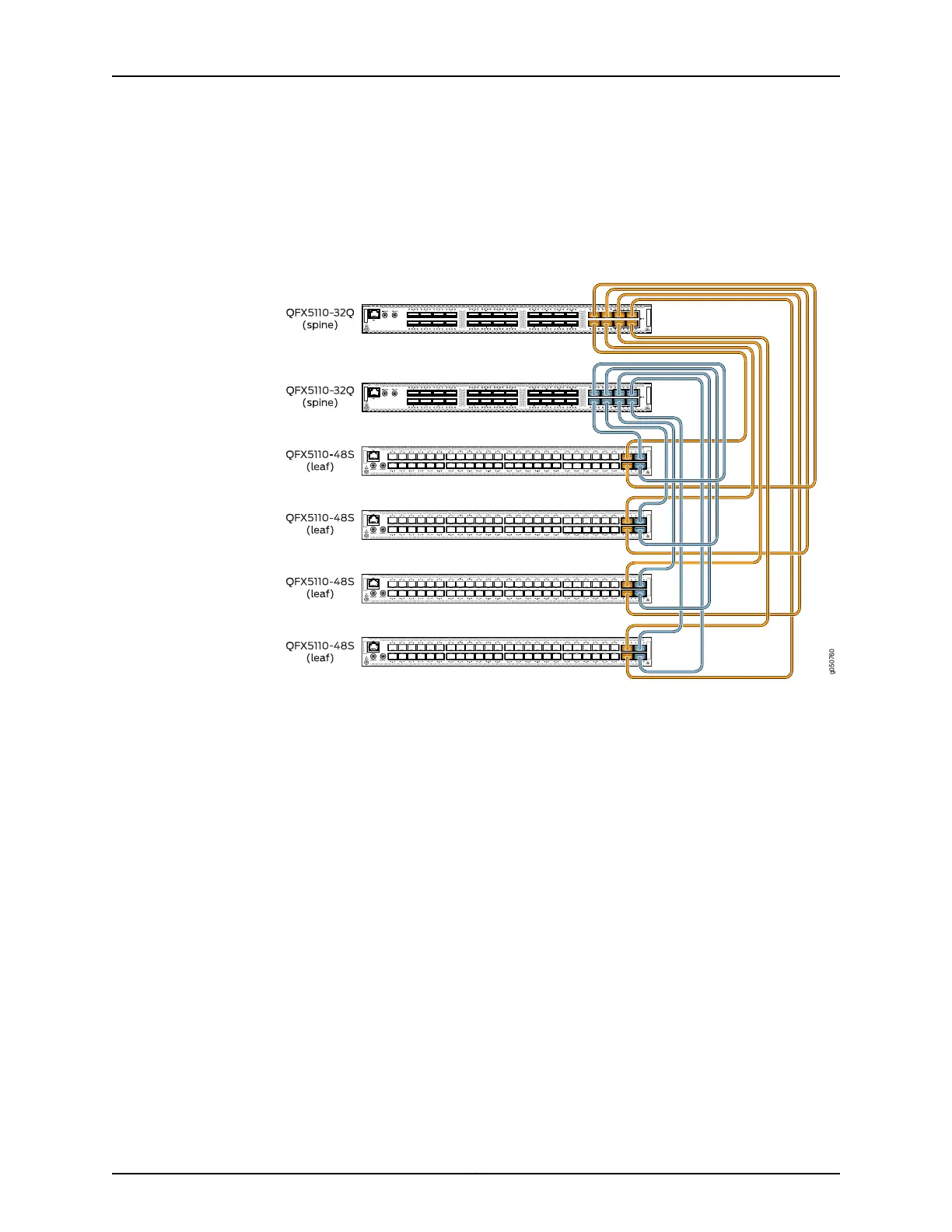

Figure 33: All QFX5110 VCF
g050760
