Juniper QFX Series Hardware Guide

VCF uses QFX Virtual Chassis technology to interconnect multiple devices into a single
logical device and manage that device as a single logical device inside of a fabric
architecture. You can configure up to a total of 20 QFX5110 devices in a QFX5110 VCF.
Use QFX5110-32Q as the spine devices. You can use these models in any combination
as leaf devices:
•
QFX5100-24Q
•
QFX5100-48S
•
QFX5100-48T (Junos OS Release 17.3R2 and later)
•
QFX5100-96S
•
QFX5110-48S
NOTE: If only QFX5110-48S switches are available, cable and configure
the switches as a QFX5110 Virtual chassis.
•
A satellite device in a Junos Fusion Provider Edge system (Junos OS 18.1R2 and later)
QFX5110-48S Hardware
As shown in Figure 1 on page 22, the QFX5110-48S is a 10-Gigabit Ethernet enhanced
small form-factor pluggable plus (SFP+) switch with 48 SFP+ ports and four 100-Gbps
quad small form-factor (QSFP) pluggable solution (QSFP28) ports. Each SFP+ port (0
through 47)can operate as a native 10-Gigabit Ethernet port or a 1-Gigabit Ethernet port
when 1-Gigabit Ethernet optics are inserted.
Each QSFP28 port (48 through 51) can operate as a native 100-Gigabit Ethernet port, a
native 40-Gigabit Ethernet port, or as 4 independent 10-Gigabitports when using breakout
cables. The four QSFP28 ports can be used as either access ports or as uplinks. The
QFX5110-48S provides an aggregate throughput of 960 Gbps. The QFX5110-48S has a
1 U form factor and comes standard with redundant fans and redundant power supplies.

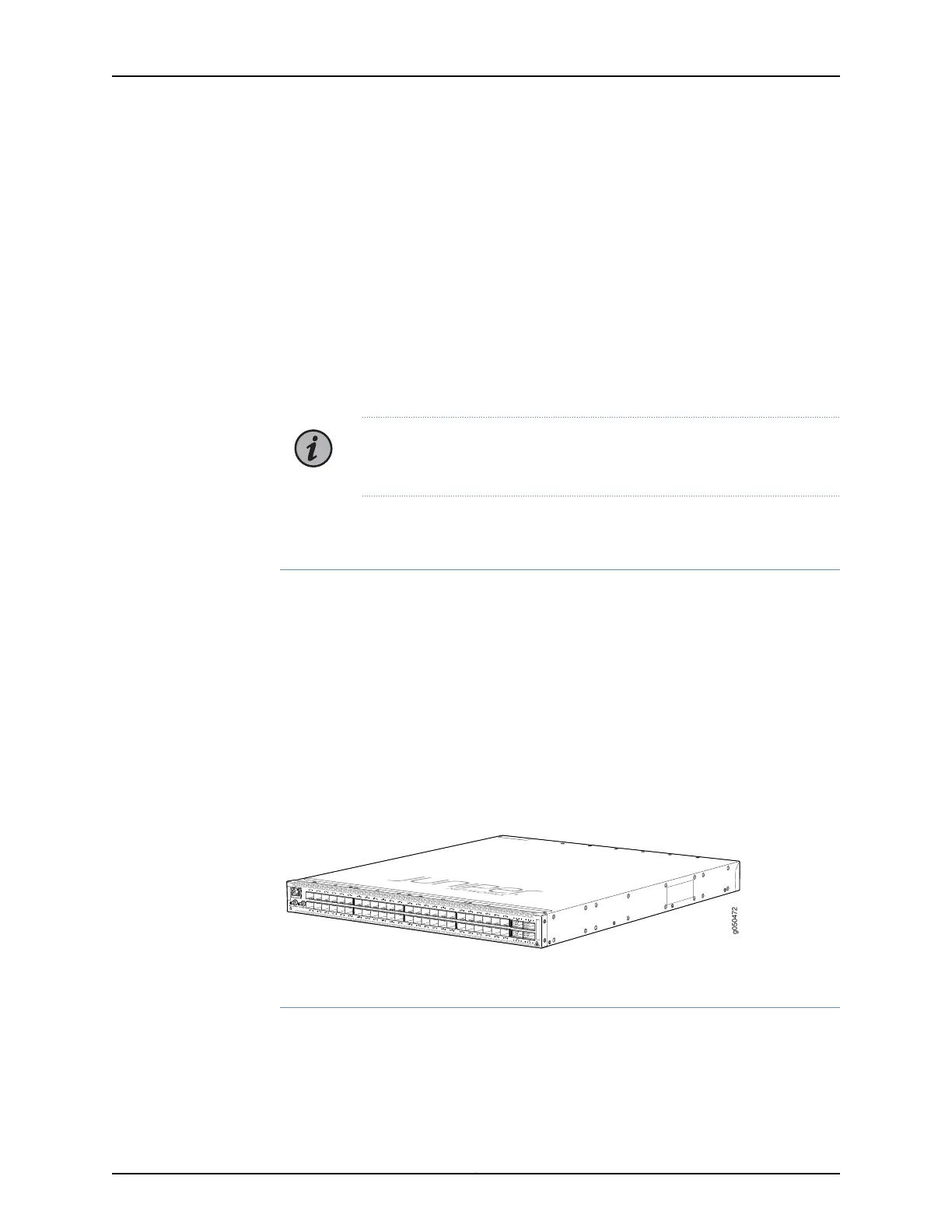

Figure 1: QFX5110-48S Port Panel
g050472
GM
QFX5110-32Q Hardware
As shown in Figure 2 on page 23, the QFX5100-32Q is a flexible configuration switch
allowing either 32 ports of 40-Gigabit Ethernet quad small form-factor pluggable plus
(QSFP+) or 20 ports of QSFP+ and 4 ports of high-density 100-Gigabit Ethernet quad
small form-factor pluggable solution (QSFP28). Each QSFP+ port can operate as a
native 40-Gigabit Ethernet port, or as four independent 10-Gigabit Ethernet ports when
Copyright © 2019, Juniper Networks, Inc.22
QFX5110 Switch Hardware Guide

Juniper QFX Series Specifications

General

Category	Switch
Series	QFX
Form Factor	1U, 2U, and modular chassis options
Power Supply	Redundant, hot-swappable power supplies
Cooling	hot-swappable fans
Virtual Chassis	Supported on certain models
Typical Use	Data center, cloud
Operating System	Junos OS
Management	CLI
Key Features	High performance, low latency, automation
Latency	Sub-microsecond latency
Port Density	Varies by model (e.g., QFX5100: up to 48x10GbE + 6x40GbE)
