CPU BUILTIN BUILTIN FPC CPU
PIC 0 BUILTIN BUILTIN 48x10G-4x100G
Xcvr 34 REV 01 740-030658 AD1148A0AXP SFP+-10G-USR
Xcvr 35 REV 01 740-030658 AD1148A0APE SFP+-10G-USR
Xcvr 48 REV01 740-061001 LEO150600KQ QSFP28-100G-CU3M
Xcvr 49 REV01 740-061001 LEO150600KQ QSFP28-100G-CU3M
Xcvr 50 REV 01 740-038624 MOC13346240015 QSFP+-40G-CU3M
Power Supply 0 REV 03 740-041741 1GA24141198 JPSU-650W-AC-AFO
Power Supply 1 REV 03 740-041741 1GA24141173 JPSU-650W-AC-AFO
Fan Tray 0 fan-ctrl-2 0, Front to
Back Airflow - AFO
Fan Tray 1 fan-ctrl-2 1, Front to
Back Airflow - AFO
Fan Tray 2 fan-ctrl-2 2, Front to
Back Airflow - AFO
Fan Tray 3 fan-ctrl-2 3, Front to
Back Airflow - AFO
Fan Tray 4 fan-ctrl-2 4, Front to
Back Airflow - AFO
{master:0}
root>
NOTE: You must remove the fan module to read the fan serial number from
the serial number ID label. The fan module serial number cannot be viewed
through the CLI. Fan Tray 2 refers to the third module from the left, counting
from 0.
Locating the Chassis Serial Number ID Label on a QFX5110
The chassis serial number ID label is located on the right side of the QFX5110 port panel.
On legacy switches, or switches with an LCD, the port panel is referred to as the front
panel. See Figure 43 on page 133 for an example of where to find the serial number ID.

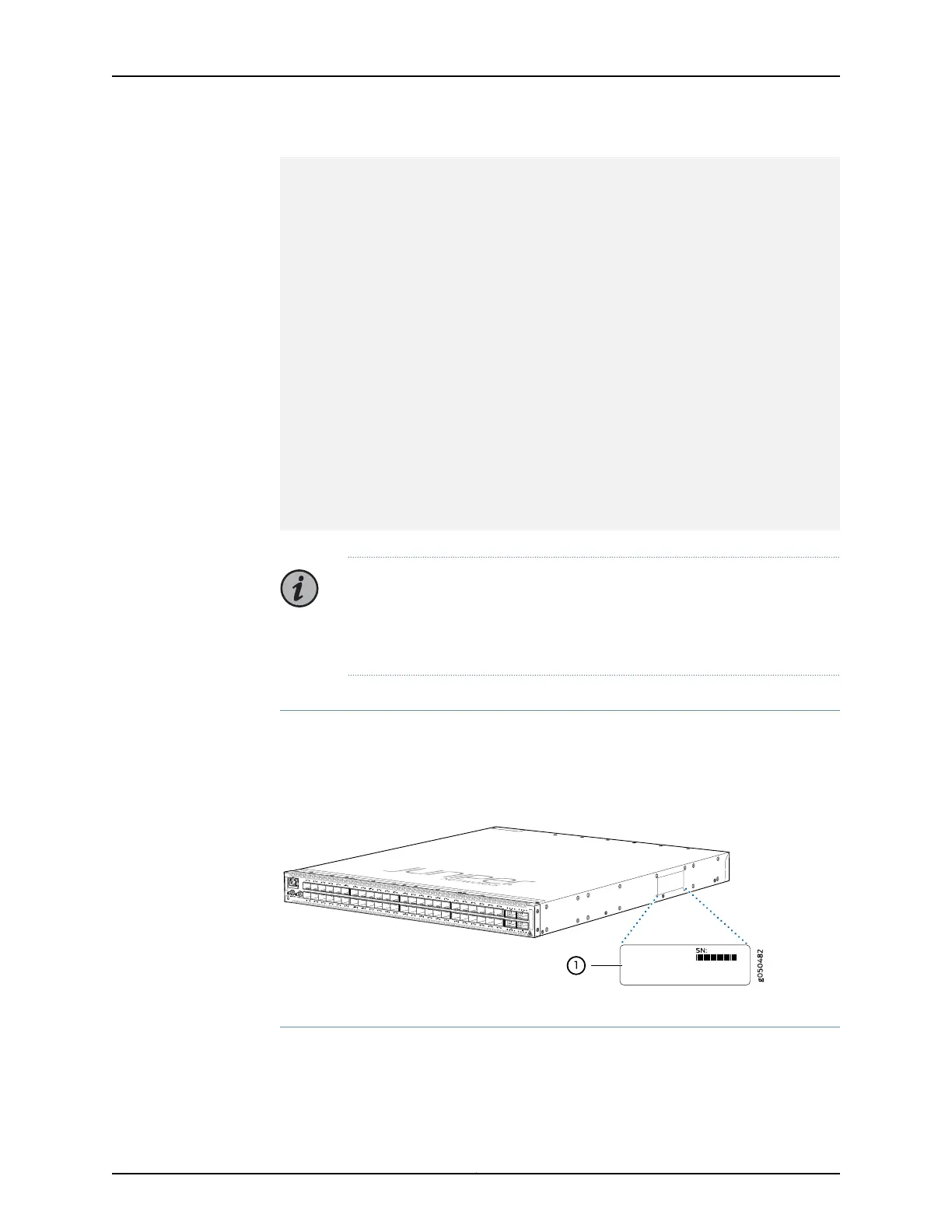

Figure 43: Location of the Serial Number ID Label on a QFX5110
Locating the Serial Number ID Labels on FRU Components
The power supplies and fan modules installed in a QFX5110 are field-replaceable units
(FRUs). For each FRU, you must remove the FRU from the switch chassis to see the FRU
serial number ID label.
133Copyright © 2019, Juniper Networks, Inc.
