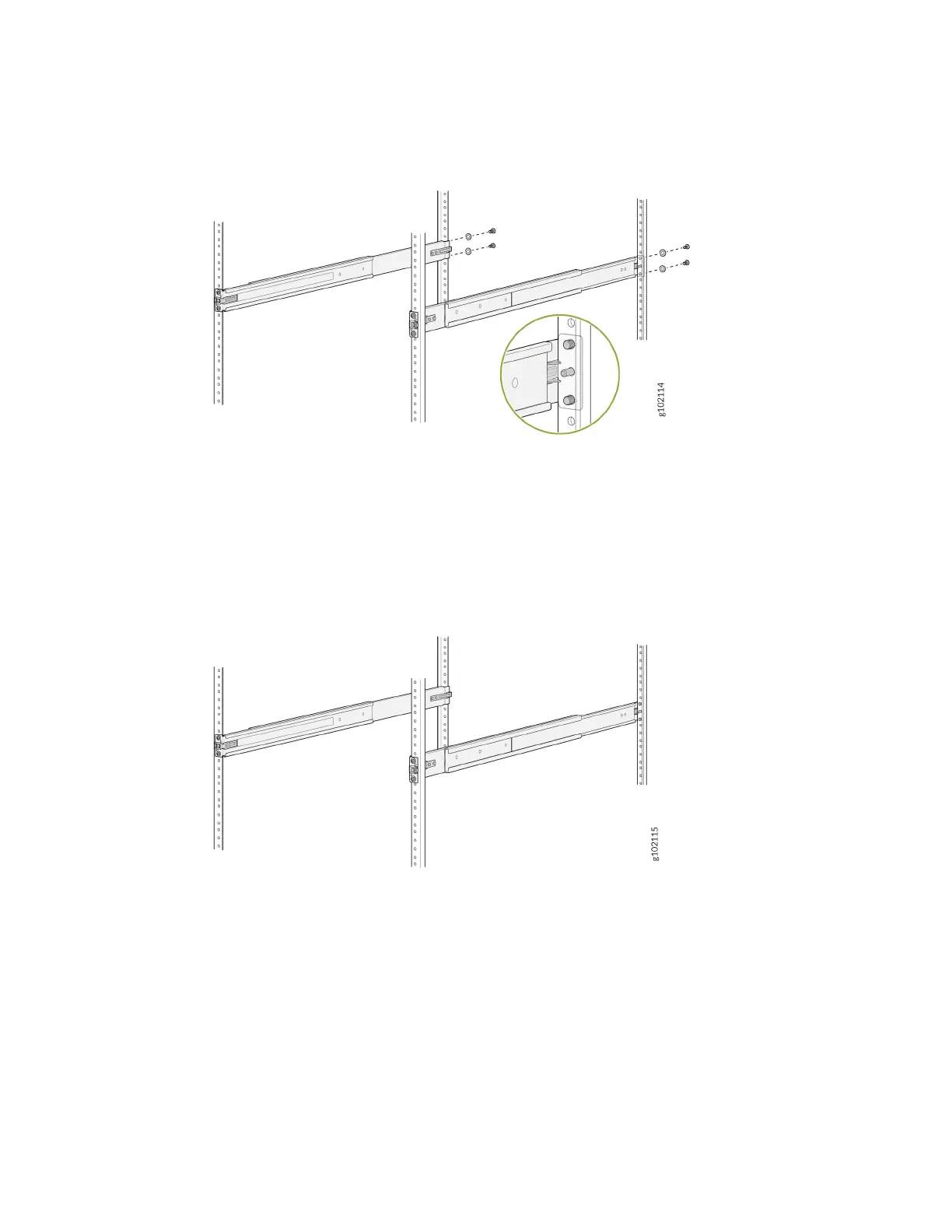

Figure 28: Secure the Rear Mounng Brackets
d. Visually ensure that the front and rear latches are locked into place on the mounng rails. The
mounng rails should be securely installed on the rack.
Figure 29: Mounng Rails Installed and Secured
6. Li the device and posion it in the rack, aligning the side mounng brackets with the mounng rails.
Slide the device into the channels of the rack mounng rails.
53
