Keysight Technologies B1505A User Manual

3-14 Keysight B1505A User’s Guide, Edition 12
Accessories

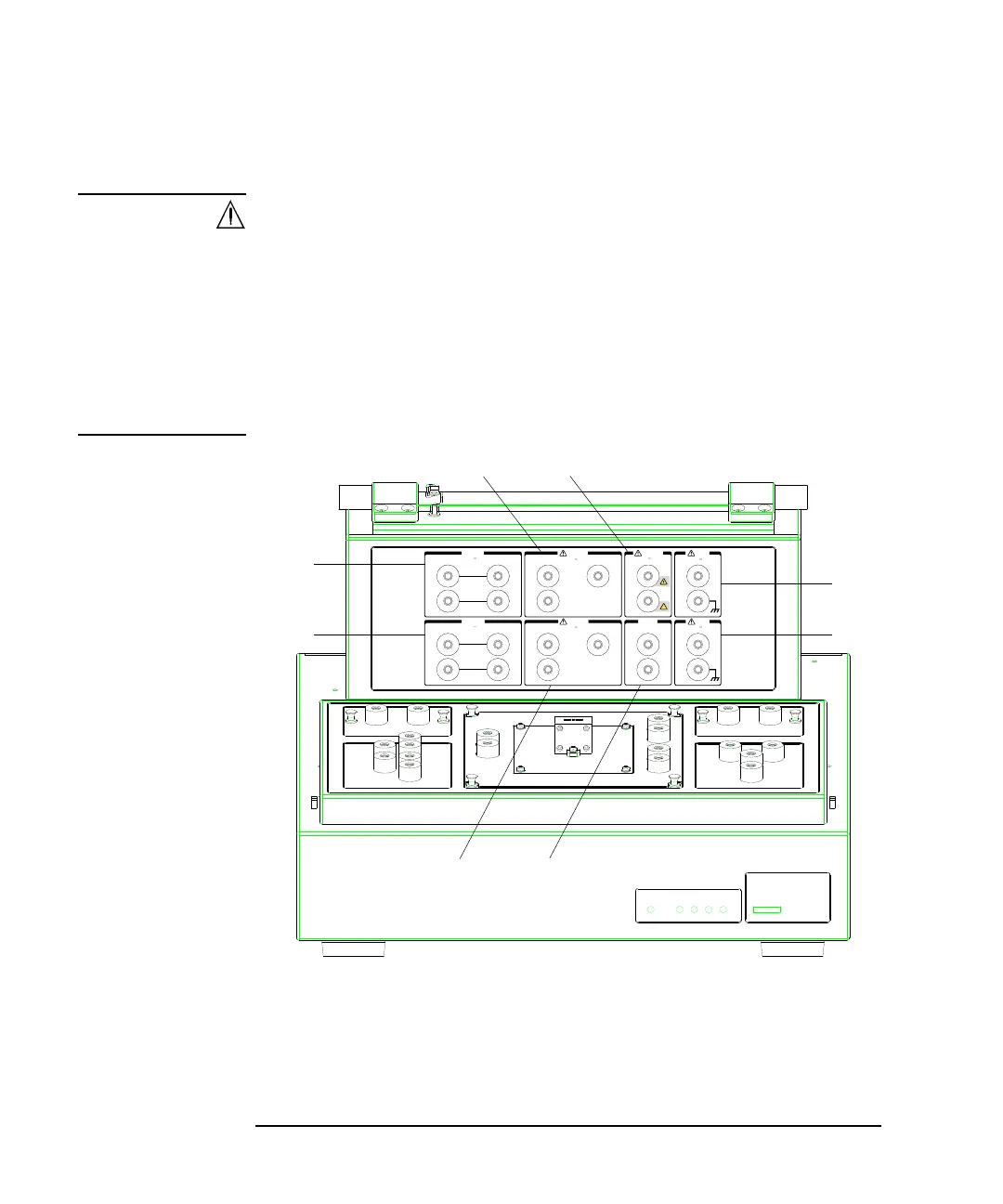

Output Terminal Panel
WARNING Set the instrument output off before connecting or disconnecting connection
wire.
Press the B1505A front panel
Stop key to set the output off. And confirm that
the B1505A front panel High Voltage indicator is not lit.
Désactivez la sortie de l'appareil avant de brancher ou de débrancher un câble
de connexion.
Appuyez sur la touche
Stop du panneau avant du B1505A pour désactiver la
sortie. Et confirmez que l'indicateur de tension High du panneau avant du
B1505A n'est pas allumé.
1. HCSMU1 and HCSMU2
Output terminals internally connected to the HCSMU1 and HCSMU2 input
connectors. High Force and Sense terminals and Low Force and Sense terminals
for each HC/MC/DHCSMU.
Signal
Signal
Force
Guard
Force
Sense
Guard
Force
Guard
SenseForce
High
Low
Sense
HCSMU1
HCSMU2 GNDU1
HVSMU1
HPSMU2
HPSMU1
Force Sense
High
Low
Force Sense
±40 V Max
±40 V Max
±200 V Max ± 200 V Max
±200 V Max±200 V Max
±3 kV Max
AUX2
AUX1
1
1
5
5
2
3
4
2
