Introduction
Measurement Resources
HPSMU - High Power SMU
This section describes typical specification of the high power source/monitor unit
(HPSMU). Maximum four modules can be installed in one mainframe. The total
number of installed HPSMU and HCSMU modules can not exceed 4.
• Maximum voltage, current, output power: ± 200 V, ± 1 A, 20 W
• Minimum range: 2 V, 1 nA
• Output/measurement value and resolution: see Table 2-3 to Table 2-6.

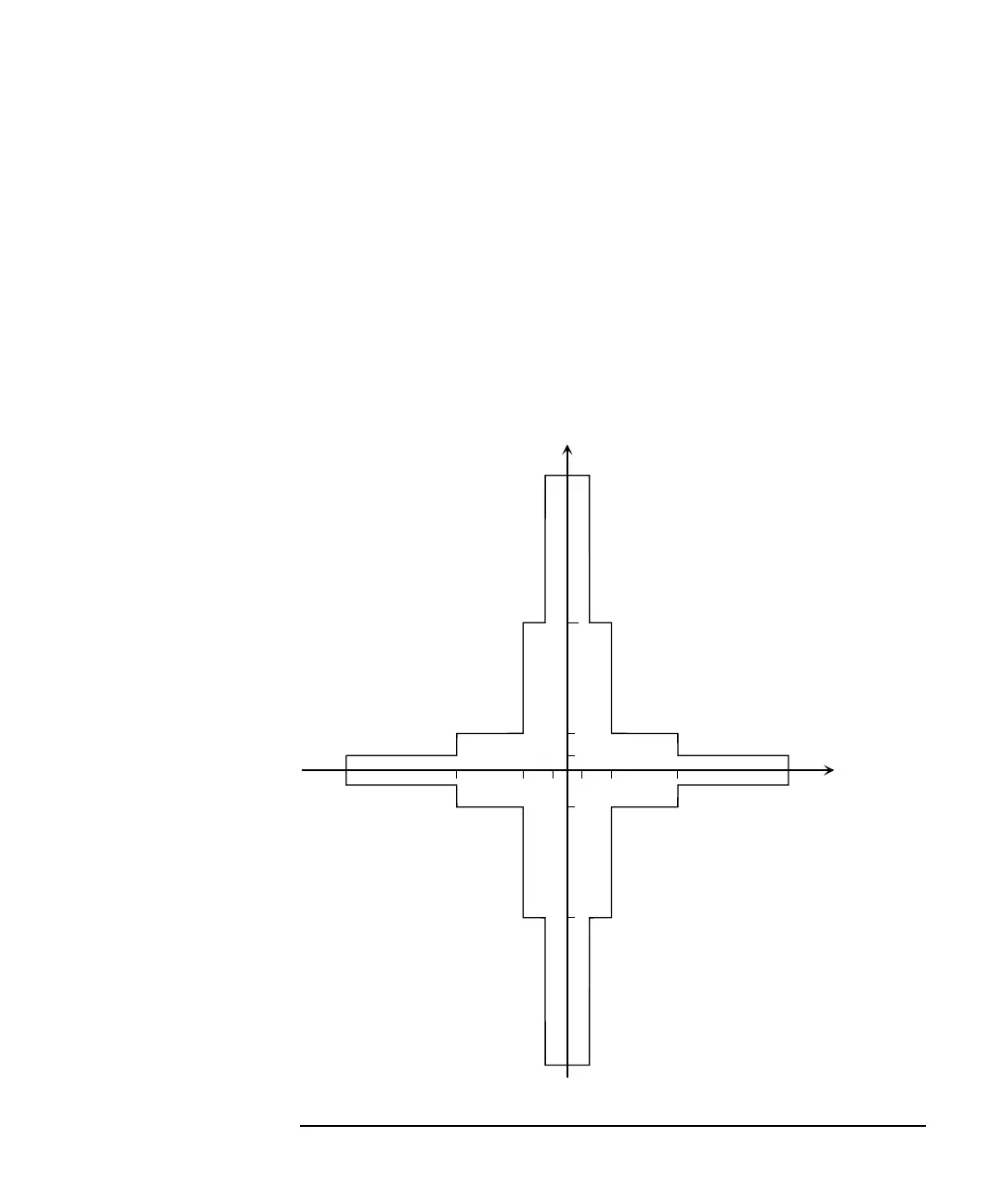

Figure 2-3 HPSMU Output and Measurement Ranges
200 200
100100
40
40
1000
50
125
1000
Voltage (V)
Current (mA)
20
500
500
20
125
-
-
-
-
-
-
-
