1-12 Keysight B1505A User’s Guide, Edition 12
Getting Started
To Use Application Test Mode
To Use Application Test Mode
For the screen as shown in Figure 1-5, perform the following procedure.

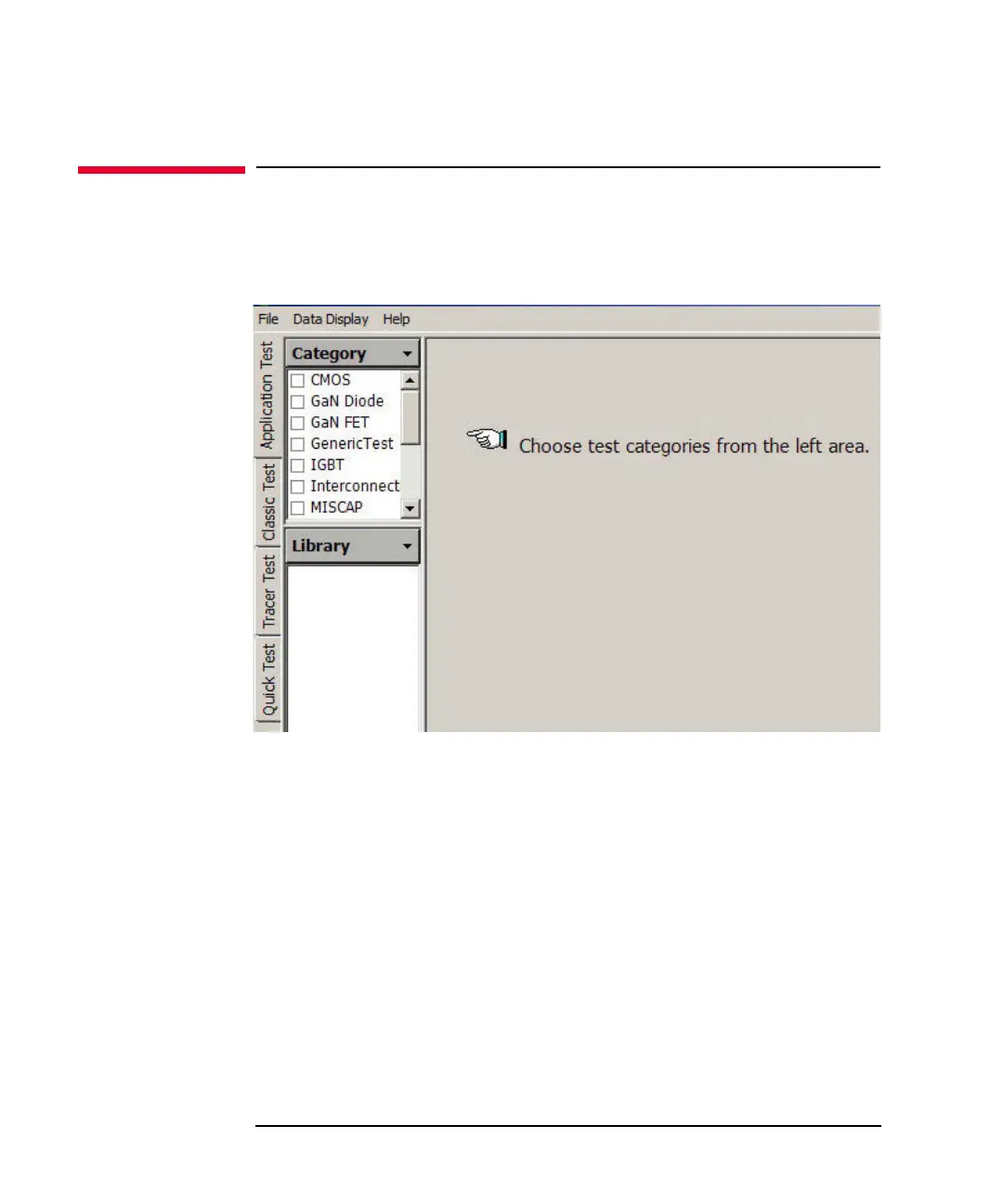

Figure 1-5 Display Example of EasyEXPERT Main Screen
1. Click the Application Test tab on the main screen. The tab is in the leftmost
column on the screen.
2. Set the Category field. For example, check the PowerMOSFET only. The
Library field lists the test definitions.
3. Select a test definition at the Library field. For example, click the Id-Vgs and
Select button sequentially. The screen changes the display as shown in Figure
1-6.
4. Change the measurement conditions at the Test Parameters field.
The following example changes the voltage sweep output.
a. Set VgStop to 5.0 V.
b. Set VdStart and VdStop to 5.0 V.
To Next Page
