2-32 Keysight B1505A User’s Guide, Edition 12
Introduction
Measurement Resources
HCSMU - High Current SMU
This section describes typical specification of the high current source/monitor unit
(HCSMU). Maximum two modules can be installed in one mainframe. Using two
modules (DHCSMU, dual HCSMU) can expand the maximum current up to ± 40 A
(pulse), ± 2 A (DC). The total number of installed HPSMU and HCSMU modules
can not exceed 4.
• Maximum current by one module: ± 20 A (pulse), ± 1 A (DC)
• Maximum voltage by one module: ± 40 V, ± 20 V only for the pulse over ± 1 A
• Maximum output power by one module: 40 W
• Minimum range: 0.2 V, 10 A
• Minimum pulse width: 50 s
• Output/measurement value and resolution: see Table 2-7 and Table 2-8.
NOTE Do not put any conductor on the HCSMU Low Force and Low Sense terminals,
outer conductor of the coaxial connectors. Putting conductor of circuit common,
chassis ground, or any potential on causes the measurement error.

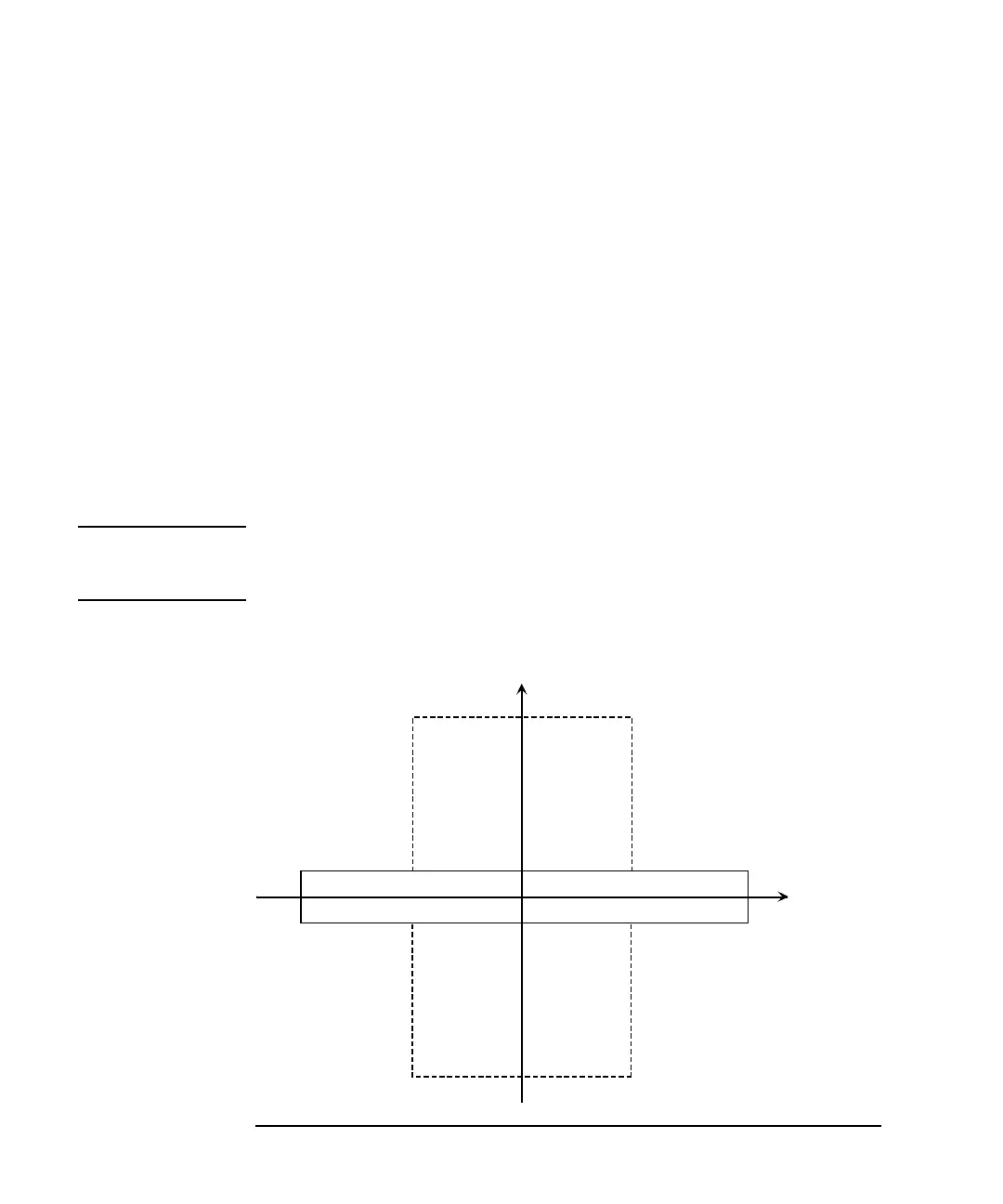

Figure 2-4 HCSMU Output and Measurement Ranges by One Module
40
40
20
20
20
1
1
20
Voltage (V)
Current (A)
-
-
-
-
Pulse mode only
Pulse mode only
