Keysight Technologies B1505A User Manual

Keysight B1505A User’s Guide, Edition 12 2-45
Introduction
Measurement Resources
UHVU - Ultra High Voltage Unit
The ultra high voltage unit (UHVU) is configured by the Keysight N1268A
ultra high voltage expander and two MCSMU modules or a combination of a
MCSMU and a HCSMU. Typical specifications of the UHVU are shown below.
• Output: DC voltage or voltage pulse
• Measurement: current or voltage
• Maximum voltage/current: 10 kV/10 mA, -10 kV/-10 mA, 10 kV/20 mA, or
-10 kV/-20 mA
Pulse width must be 1 ms or less for the current over ± 10 mA.
• Minimum pulse width: 100 s
• Minimum pulse period: 10 ms
• Output/measurement value and resolution: see Table 2-21 and Table 2-22.

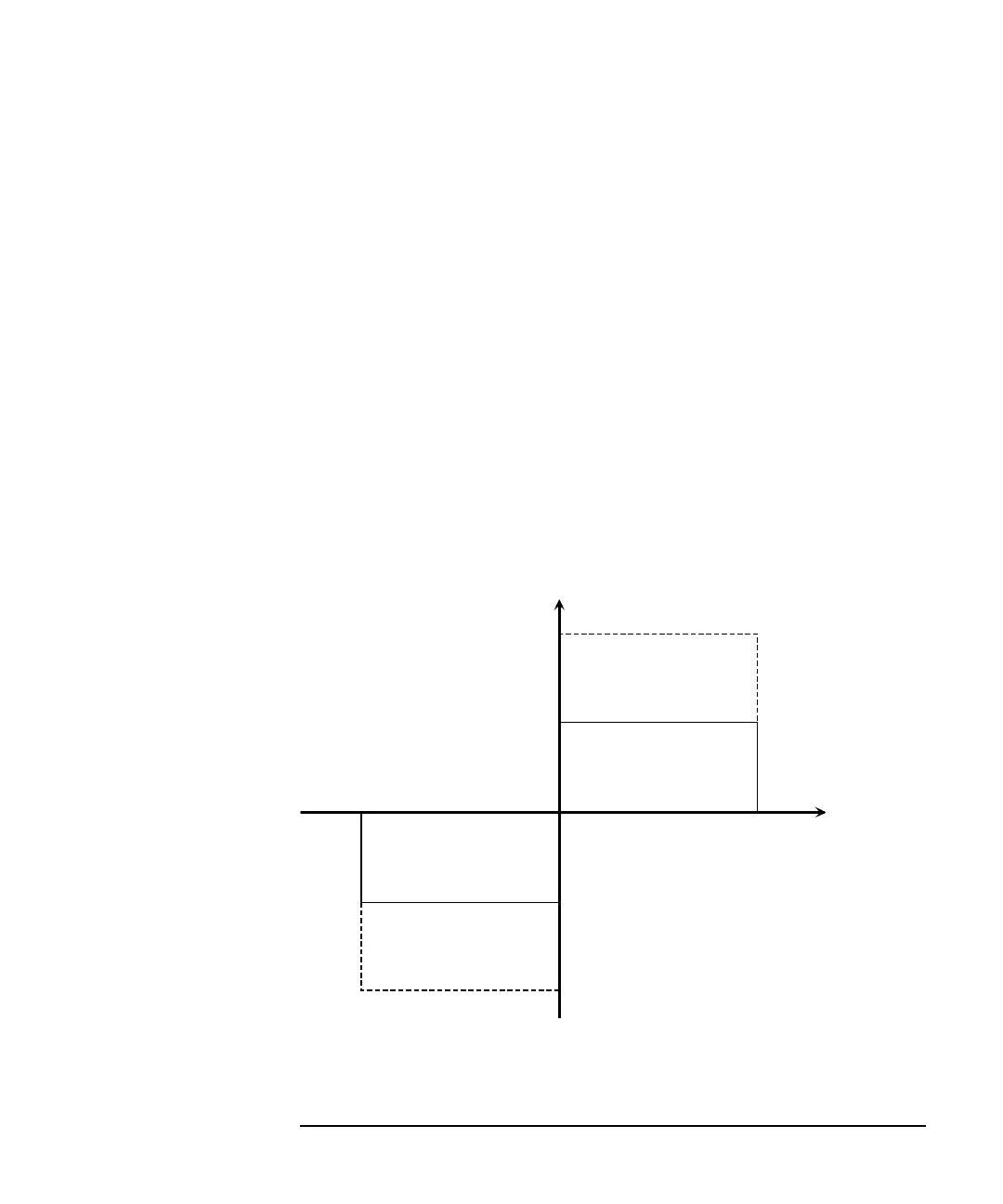

Figure 2-10 UHVU Output and Measurement Ranges
10000
10000
20
10
10
20
Voltage (V)
Current (mA)
-
-
-
*1: Pulse width must be 1 ms or less.
*1
*1
